Components of this product family

LOG IN 2.1 TRIMLESS ENDSTÜCK

LOG IN 2.1 TRIMLESS ENDSTÜCK
LOG IN/LOG OUT 2.1 LINEARVERBINDER

LOG IN/LOG OUT 2.1 LINEARVERBINDER
LOG IN/LOG OUT 2.1 ABSCHOTTER

LOG IN/LOG OUT 2.1 ABSCHOTTER
18 Items found Filter (0)
Colour temperature
Dimmability
Length
Luminous flux
System performance

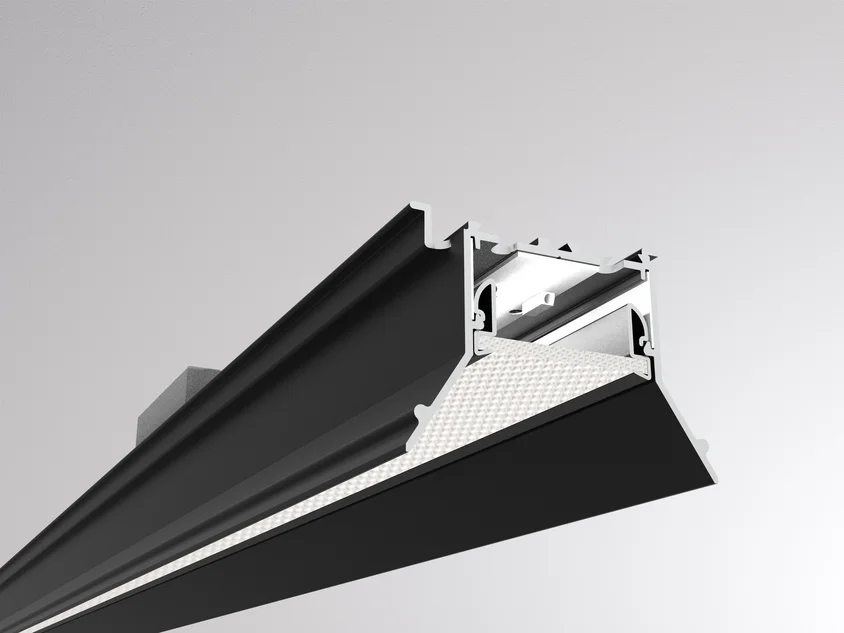

LOG 2.1 SYSTEM EINSATZ BINA OFFICE Black
Item no. Colour temperature Dimmability Length Luminous flux
Item no. 728-60203321406d Colour temperature 4000K Dimmability DALI Length 844 mm Luminous flux 2220 lm

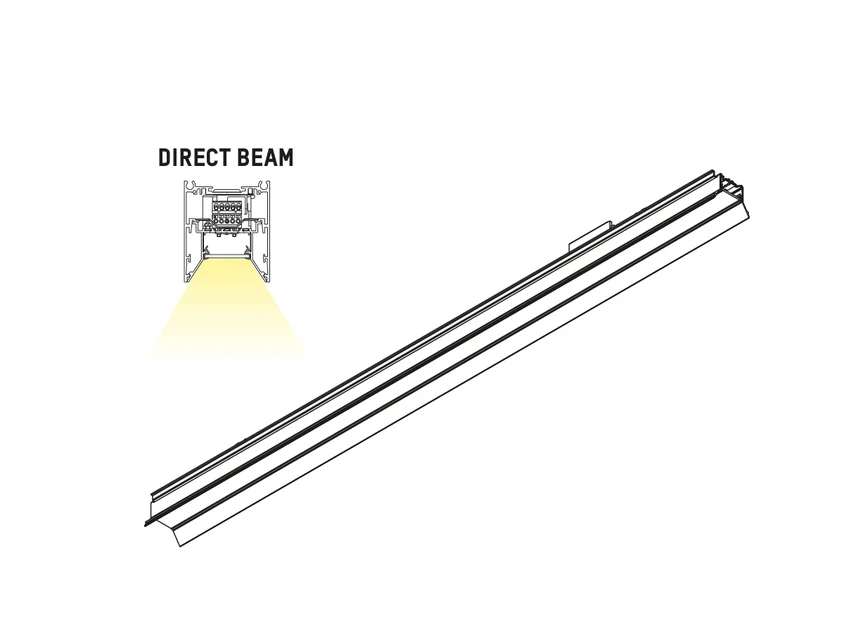

LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 26 W
Luminous flux 2220 lm
Current sec. 950 mA
Colour temperature 4000K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 844 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 348,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-60204321906d Colour temperature 3000K Dimmability DALI Length 1124 mm Luminous flux 2830 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 34 W
Luminous flux 2830 lm
Current sec. 950 mA
Colour temperature 3000K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 1124 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 382,40
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-60204321406d Colour temperature 4000K Dimmability DALI Length 1124 mm Luminous flux 2960 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 34 W
Luminous flux 2960 lm
Current sec. 950 mA
Colour temperature 4000K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 1124 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 382,40
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-602043219060 Colour temperature 3000K Dimmability not dimmable Length 1124 mm Luminous flux 2830 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 34 W
Luminous flux 2830 lm
Current sec. 950 mA
Colour temperature 3000K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 1124 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 318,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-60205321906d Colour temperature 3000K Dimmability DALI Length 1405 mm Luminous flux 3540 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 41 W
Luminous flux 3540 lm
Current sec. 950 mA
Colour temperature 3000K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 1405 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 412,90
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-60205321306d Colour temperature 2700K Dimmability DALI Length 1405 mm Luminous flux 3440 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 41 W
Luminous flux 3440 lm
Current sec. 950 mA
Colour temperature 2700K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 1405 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 412,90
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-602043214060 Colour temperature 4000K Dimmability not dimmable Length 1124 mm Luminous flux 2960 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 34 W
Luminous flux 2960 lm
Current sec. 950 mA
Colour temperature 4000K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 1124 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 318,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-602033214060 Colour temperature 4000K Dimmability not dimmable Length 844 mm Luminous flux 2220 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 26 W
Luminous flux 2220 lm
Current sec. 950 mA
Colour temperature 4000K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 844 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 283,90
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-602043213060 Colour temperature 2700K Dimmability not dimmable Length 1124 mm Luminous flux 2750 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 34 W
Luminous flux 2750 lm
Current sec. 950 mA
Colour temperature 2700K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 1124 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 318,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-602033219060 Colour temperature 3000K Dimmability not dimmable Length 844 mm Luminous flux 2120 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 26 W
Luminous flux 2120 lm
Current sec. 950 mA
Colour temperature 3000K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 844 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 283,90
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-60203321306d Colour temperature 2700K Dimmability DALI Length 844 mm Luminous flux 2060 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 26 W
Luminous flux 2060 lm
Current sec. 950 mA
Colour temperature 2700K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 844 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 348,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-602033213060 Colour temperature 2700K Dimmability not dimmable Length 844 mm Luminous flux 2060 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 26 W
Luminous flux 2060 lm
Current sec. 950 mA
Colour temperature 2700K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 844 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 283,90
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-60205321406d Colour temperature 4000K Dimmability DALI Length 1405 mm Luminous flux 3700 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 41 W
Luminous flux 3700 lm
Current sec. 950 mA
Colour temperature 4000K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 1405 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 412,90
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-60204321306d Colour temperature 2700K Dimmability DALI Length 1124 mm Luminous flux 2750 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 34 W
Luminous flux 2750 lm
Current sec. 950 mA
Colour temperature 2700K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 1124 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 382,40
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-602053213060 Colour temperature 2700K Dimmability not dimmable Length 1405 mm Luminous flux 3440 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 41 W
Luminous flux 3440 lm
Current sec. 950 mA
Colour temperature 2700K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 1405 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 348,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-602053219060 Colour temperature 3000K Dimmability not dimmable Length 1405 mm Luminous flux 3540 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 41 W
Luminous flux 3540 lm
Current sec. 950 mA
Colour temperature 3000K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 1405 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 348,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-60203321906d Colour temperature 3000K Dimmability DALI Length 844 mm Luminous flux 2120 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 26 W
Luminous flux 2120 lm
Current sec. 950 mA
Colour temperature 3000K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 844 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 348,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-602053214060 Colour temperature 4000K Dimmability not dimmable Length 1405 mm Luminous flux 3700 lm
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
LOG 2.1 SYSTEM EINSATZ BINA OFFICE
Specifications
Light source LED
System performance 41 W
Luminous flux 3700 lm
Current sec. 950 mA
Colour temperature 4000K
CRI >80
UGR <19
Optics microprismatic cover
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 1405 mm
IP protection class IP20
IP protection class protection cl. I
IK value IK06
Material aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Downloads
Availability & Price
RRP excl. VAT
€ 348,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
