Components of this product family

LOG IN 2.1 BINA LENS R

LOG IN 2.1 BINA LENS R
LOG IN 2.1 BINA OFFICE R

LOG IN 2.1 BINA OFFICE R
LOG OUT 2.1 BINA OFFICE SD

LOG OUT 2.1 BINA OFFICE SD
LOG 2.1 SYSTEM PROFIL R TRIMLESS

LOG 2.1 SYSTEM PROFIL R TRIMLESS
LOG 2.1 SYSTEM PROFIL SD

LOG 2.1 SYSTEM PROFIL SD
39 Items found Filter (0)
Colour of body
Colour temperature
Dimmability
Luminous flux
System performance

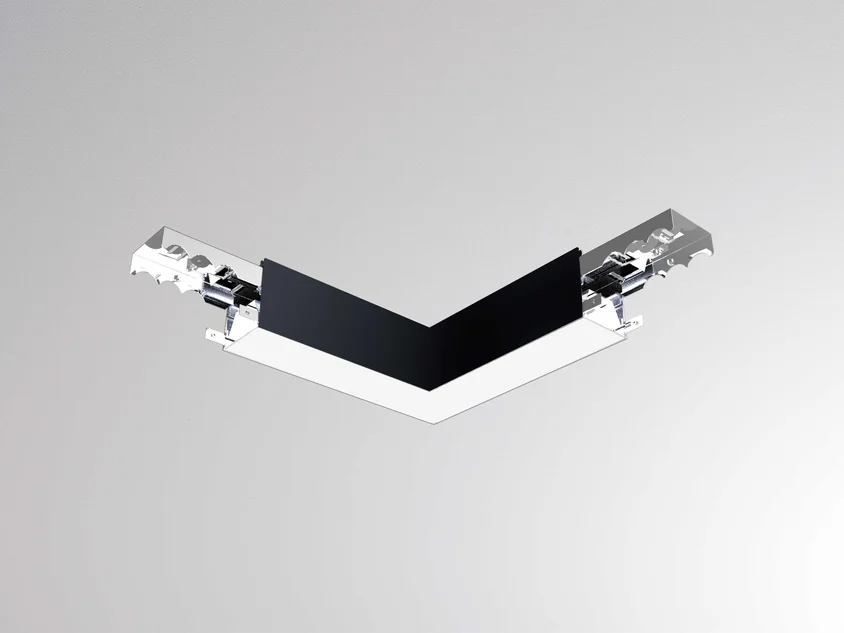

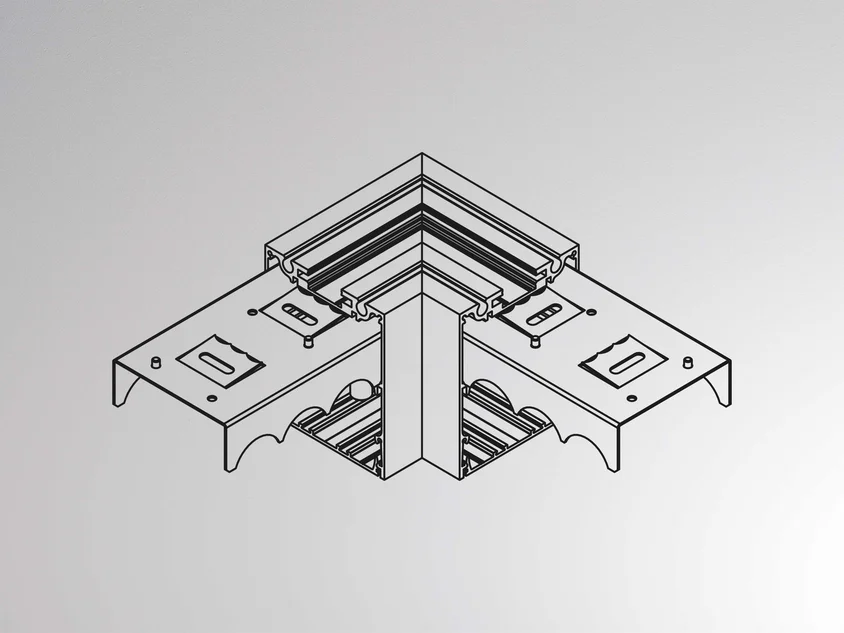

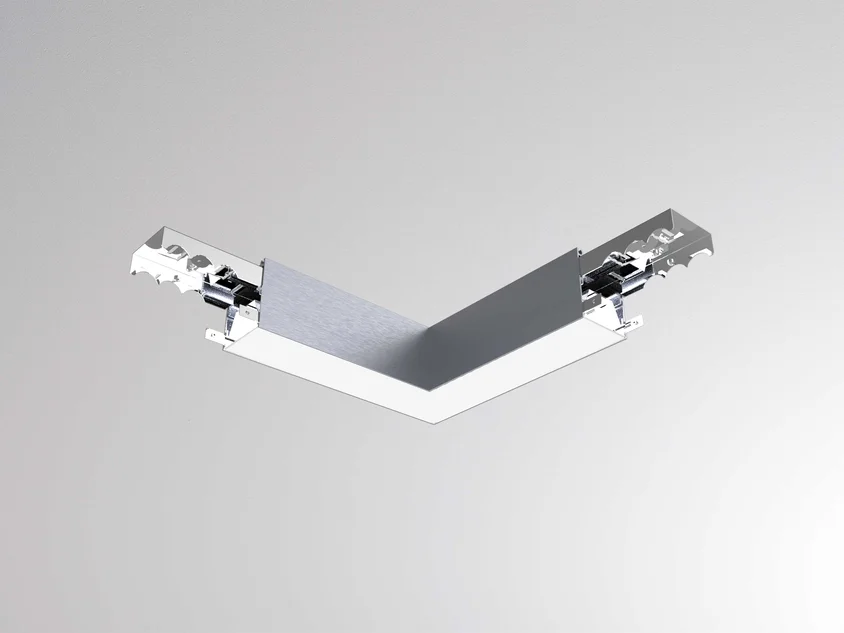

LOG OUT 2.1 ECKVERBINDER White
Item no. Colour of body Colour temperature Dimmability Luminous flux
Item no. 728-10500311350d Colour of body white Colour temperature 2700K Dimmability DALI Luminous flux 1910 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1910 lm
Colour temperature 2700K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body white
RAL 9016
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500311450d Colour of body white Colour temperature 4000K Dimmability DALI Luminous flux 1960 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1960 lm
Colour temperature 4000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body white
RAL 9016
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105001119500 Colour of body white Colour temperature 3000K Dimmability not dimmable Luminous flux 1020 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 1020 lm
Colour temperature 3000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body white
RAL 9016
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500311950d Colour of body white Colour temperature 3000K Dimmability DALI Luminous flux 1960 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1960 lm
Colour temperature 3000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body white
RAL 9016
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 259,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105001114500 Colour of body white Colour temperature 4000K Dimmability not dimmable Luminous flux 1020 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 1020 lm
Colour temperature 4000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body white
RAL 9016
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500111450d Colour of body white Colour temperature 4000K Dimmability DALI Luminous flux 1020 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 1020 lm
Colour temperature 4000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body white
RAL 9016
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105003113500 Colour of body white Colour temperature 2700K Dimmability not dimmable Luminous flux 1910 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1910 lm
Colour temperature 2700K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body white
RAL 9016
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105003119500 Colour of body white Colour temperature 3000K Dimmability not dimmable Luminous flux 1960 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1960 lm
Colour temperature 3000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body white
RAL 9016
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 200,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105001113500 Colour of body white Colour temperature 2700K Dimmability not dimmable Luminous flux 990 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 990 lm
Colour temperature 2700K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body white
RAL 9016
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500111950d Colour of body white Colour temperature 3000K Dimmability DALI Luminous flux 1020 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 1020 lm
Colour temperature 3000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body white
RAL 9016
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105003114500 Colour of body white Colour temperature 4000K Dimmability not dimmable Luminous flux 1960 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1960 lm
Colour temperature 4000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body white
RAL 9016
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-190000000500 Colour of body white Colour temperature Dimmability not dimmable Luminous flux
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source ***
Designer INHOUSE
Dimmability not dimmable
IP protection class IP20
Colour of body white
RAL 9016
Downloads
Availability & Price
RRP excl. VAT
€ 96,10
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500111350d Colour of body white Colour temperature 2700K Dimmability DALI Luminous flux 990 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 990 lm
Colour temperature 2700K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body white
RAL 9016
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
LOG OUT 2.1 ECKVERBINDER Aluminiuml Anodised
Item no. Colour of body Colour temperature Dimmability Luminous flux
Item no. 728-105001113800 Colour of body aluminiuml anodised Colour temperature 2700K Dimmability not dimmable Luminous flux 990 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 990 lm
Colour temperature 2700K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body aluminiuml anodised
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-190000000800 Colour of body aluminiuml anodised Colour temperature Dimmability not dimmable Luminous flux
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source ***
Designer INHOUSE
Dimmability not dimmable
IP protection class IP20
Colour of body aluminiuml anodised
Downloads
Availability & Price
RRP excl. VAT
€ 96,10
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105001119800 Colour of body aluminiuml anodised Colour temperature 3000K Dimmability not dimmable Luminous flux 1020 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 1020 lm
Colour temperature 3000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body aluminiuml anodised
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105003114800 Colour of body aluminiuml anodised Colour temperature 4000K Dimmability not dimmable Luminous flux 1960 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1960 lm
Colour temperature 4000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body aluminiuml anodised
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105003119800 Colour of body aluminiuml anodised Colour temperature 3000K Dimmability not dimmable Luminous flux 1960 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1960 lm
Colour temperature 3000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body aluminiuml anodised
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105003113800 Colour of body aluminiuml anodised Colour temperature 2700K Dimmability not dimmable Luminous flux 1910 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1910 lm
Colour temperature 2700K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body aluminiuml anodised
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105001114800 Colour of body aluminiuml anodised Colour temperature 4000K Dimmability not dimmable Luminous flux 1020 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 1020 lm
Colour temperature 4000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body aluminiuml anodised
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500111980d Colour of body aluminiuml anodised Colour temperature 3000K Dimmability DALI Luminous flux 1020 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 1020 lm
Colour temperature 3000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body aluminiuml anodised
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500111480d Colour of body aluminiuml anodised Colour temperature 4000K Dimmability DALI Luminous flux 1020 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 1020 lm
Colour temperature 4000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body aluminiuml anodised
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500311980d Colour of body aluminiuml anodised Colour temperature 3000K Dimmability DALI Luminous flux 1960 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1960 lm
Colour temperature 3000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body aluminiuml anodised
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500311480d Colour of body aluminiuml anodised Colour temperature 4000K Dimmability DALI Luminous flux 1960 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1960 lm
Colour temperature 4000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body aluminiuml anodised
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500311380d Colour of body aluminiuml anodised Colour temperature 2700K Dimmability DALI Luminous flux 1910 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1910 lm
Colour temperature 2700K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body aluminiuml anodised
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500111380d Colour of body aluminiuml anodised Colour temperature 2700K Dimmability DALI Luminous flux 990 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 990 lm
Colour temperature 2700K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body aluminiuml anodised
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
LOG OUT 2.1 ECKVERBINDER Black
Item no. Colour of body Colour temperature Dimmability Luminous flux
Item no. 728-105001113600 Colour of body black Colour temperature 2700K Dimmability not dimmable Luminous flux 990 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 990 lm
Colour temperature 2700K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105003119600 Colour of body black Colour temperature 3000K Dimmability not dimmable Luminous flux 1960 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1960 lm
Colour temperature 3000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-190000000600 Colour of body black Colour temperature Dimmability not dimmable Luminous flux
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source ***
Designer INHOUSE
Dimmability not dimmable
IP protection class IP20
Colour of body black
RAL 9005
Downloads
Availability & Price
RRP excl. VAT
€ 96,10
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105003113600 Colour of body black Colour temperature 2700K Dimmability not dimmable Luminous flux 1910 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1910 lm
Colour temperature 2700K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 204,10
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105001114600 Colour of body black Colour temperature 4000K Dimmability not dimmable Luminous flux 1020 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 1020 lm
Colour temperature 4000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105003114600 Colour of body black Colour temperature 4000K Dimmability not dimmable Luminous flux 1960 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1960 lm
Colour temperature 4000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-105001119600 Colour of body black Colour temperature 3000K Dimmability not dimmable Luminous flux 1020 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 1020 lm
Colour temperature 3000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 336,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500111360d Colour of body black Colour temperature 2700K Dimmability DALI Luminous flux 990 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 990 lm
Colour temperature 2700K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500311360d Colour of body black Colour temperature 2700K Dimmability DALI Luminous flux 1910 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1910 lm
Colour temperature 2700K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500111460d Colour of body black Colour temperature 4000K Dimmability DALI Luminous flux 1020 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 1020 lm
Colour temperature 4000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500111960d Colour of body black Colour temperature 3000K Dimmability DALI Luminous flux 1020 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 9 W
Luminous flux 1020 lm
Colour temperature 3000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500311960d Colour of body black Colour temperature 3000K Dimmability DALI Luminous flux 1960 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1960 lm
Colour temperature 3000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 728-10500311460d Colour of body black Colour temperature 4000K Dimmability DALI Luminous flux 1960 lm
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
LOG OUT 2.1 ECKVERBINDER
Specifications
Light source LED
System performance 17 W
Luminous flux 1960 lm
Colour temperature 4000K
CRI >80
Optics PMMA opal diffuser
Designer INHOUSE
Converter with converter
Dimmability DALI
Light emission area direct
Voltage 220-240V 50/60Hz
Through wiring 3x1,5mm² + 2x0,75mm²
Length 326X326 mm
Width 76 mm
Height 90 mm
IP protection class IP20
IP protection class protection cl. I
Material die-cast aluminium
Colour of body black
RAL 9005
Lifetime L80 B10 50 000 h
Energy efficiency class D
Number of luminaires B16A 50
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 400,60
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
