MAAN ROUND

Colours
Order now Request consultation
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND

From the same product family

MAAN SQUARE

MAAN SQUARE
4 Items found Filter (0)
Diameter
Luminous flux
Ceiling cutout
MAAN ROUND White
Item no. Diameter Luminous flux Ceiling cutout CRI

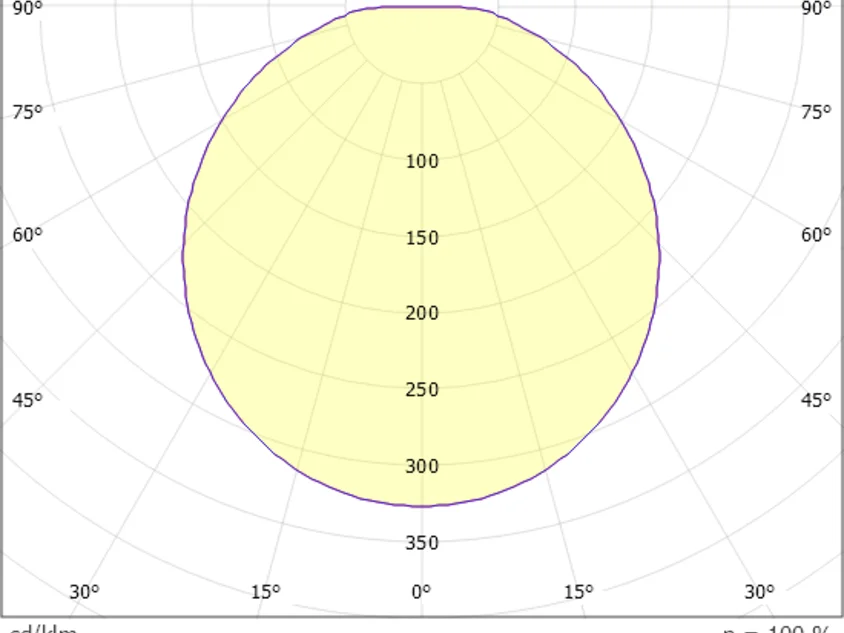

Item no. 139-000112201105 Diameter 120 mm Luminous flux 1140/1210/1110 lm Ceiling cutout 70-100 mm CRI >80
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
Specifications
Light source LED 12,5W
Luminous flux 1140/1210/1110 lm
Current sec. 350 mA
Colour temperature 2700K/3000K/4000K
CRI >80
Optics polycarbonate cover
Converter without converter
Dimmability see converter
Light emission area direct
Beam angle 118°
Voltage 35 VDC
Height 16 mm
Diameter 120 mm
Ceiling cutout 70-100 mm
Ceiling thickness 1-15 mm
Mounting depth 50 mm
IP protection class IP44/IP20
IP protection class protection cl. III
Material synthetic
Colour of body white
RAL 9003
Lifetime L80 B10 50 000 h
Energy efficiency class D
Downloads
Availability & Price
Fast Delivery
RRP excl. VAT
€ 25,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality

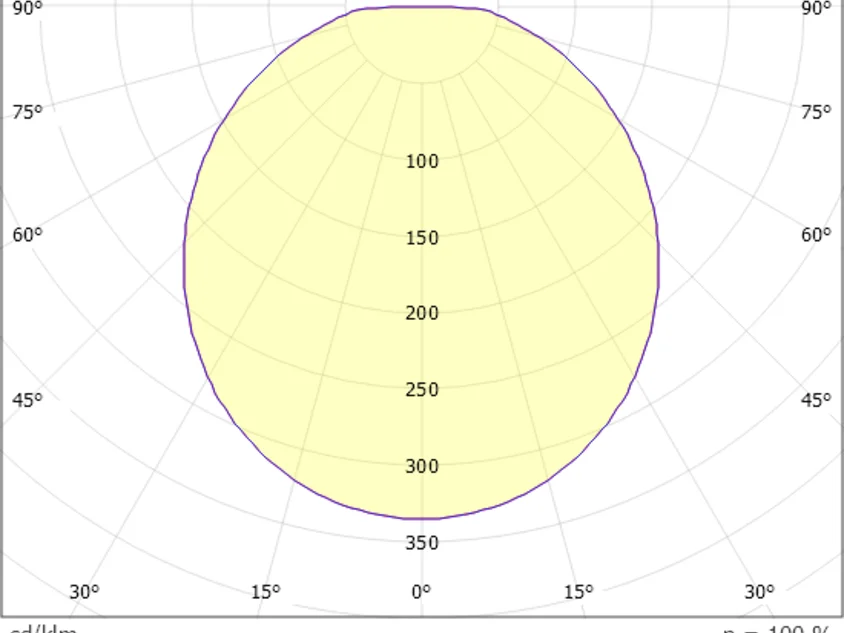

Item no. 139-000109201105 Diameter 90 mm Luminous flux 480/485/460 lm Ceiling cutout 50-75 mm CRI >80
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
Specifications
Light source LED 4,5W
Luminous flux 480/485/460 lm
Current sec. 250 mA
Colour temperature 2700K/3000K/4000K
CRI >80
Optics polycarbonate cover
Converter without converter
Dimmability see converter
Light emission area direct
Beam angle 118°
Voltage 18 VDC
Height 16 mm
Diameter 90 mm
Ceiling cutout 50-75 mm
Ceiling thickness 1-15 mm
Mounting depth 50 mm
IP protection class IP44/IP20
IP protection class protection cl. III
Material synthetic
Colour of body white
RAL 9003
Lifetime L80 B10 50 000 h
Energy efficiency class D
Downloads
Availability & Price
Fast Delivery
RRP excl. VAT
€ 19,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality

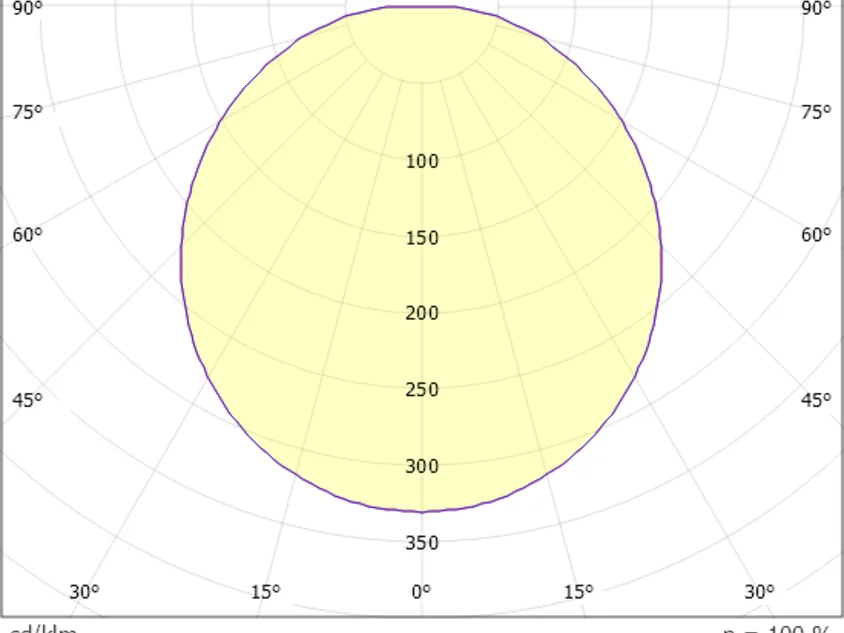

Item no. 139-000118201105 Diameter 175 mm Luminous flux 1740/1820/1750 lm Ceiling cutout 70-150 mm CRI >80
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
Specifications
Light source LED 17W
Luminous flux 1740/1820/1750 lm
Current sec. 500 mA
Colour temperature 2700K/3000K/4000K
CRI >80
Optics polycarbonate cover
Converter without converter
Dimmability see converter
Light emission area direct
Beam angle 118°
Voltage 35 VDC
Height 16 mm
Diameter 175 mm
Ceiling cutout 70-150 mm
Ceiling thickness 1-15 mm
Mounting depth 50 mm
IP protection class IP44/IP20
IP protection class protection cl. III
Material synthetic
Colour of body white
RAL 9003
Lifetime L80 B10 50 000 h
Energy efficiency class D
Downloads
Availability & Price
Fast Delivery
RRP excl. VAT
€ 39,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality

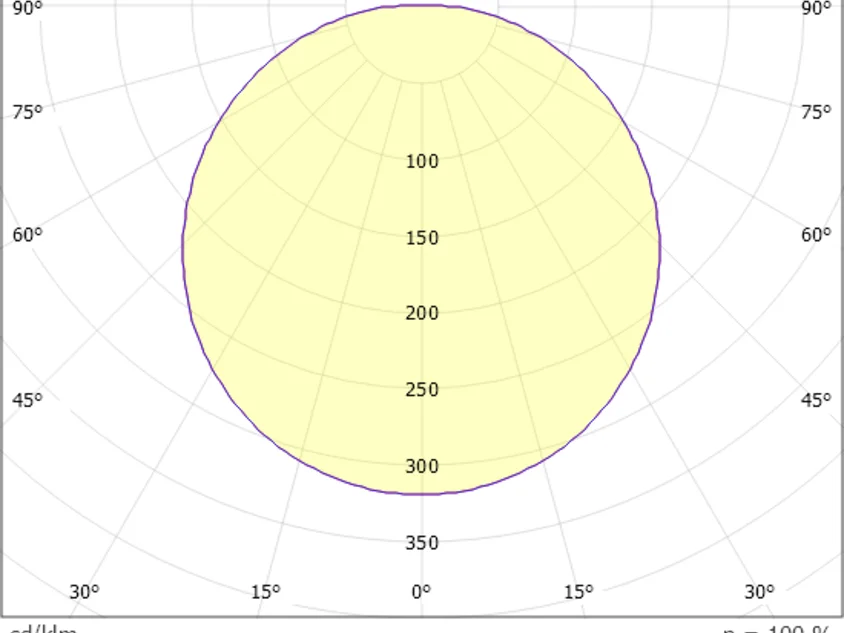

Item no. 139-000123201105 Diameter 225 mm Luminous flux 3110/3420/3330 lm Ceiling cutout 70-205 mm CRI >80
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
MAAN ROUND
Specifications
Light source LED 30,5W
Luminous flux 3110/3420/3330 lm
Current sec. 900 mA
Colour temperature 2700K/3000K/4000K
CRI >80
Optics polycarbonate cover
Converter without converter
Dimmability see converter
Light emission area direct
Beam angle 118°
Voltage 35 VDC
Height 16 mm
Diameter 225 mm
Ceiling cutout 70-205 mm
Ceiling thickness 1-15 mm
Mounting depth 50 mm
IP protection class IP44/IP20
IP protection class protection cl. III
Material synthetic
Colour of body white
RAL 9016
Lifetime L80 B10 50 000 h
Energy efficiency class D
Downloads
Availability & Price
Fast Delivery
RRP excl. VAT
€ 59,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality

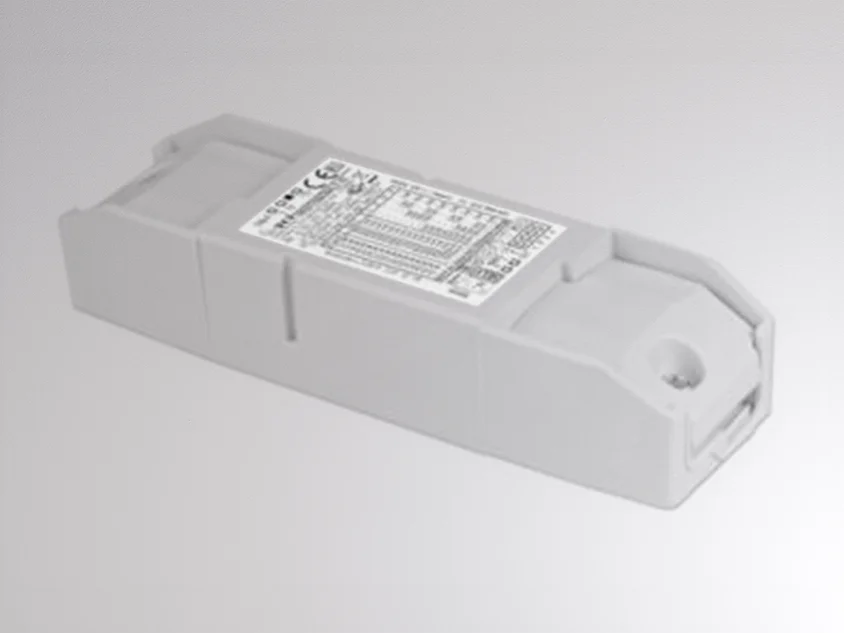

Accessories
