MAGNETICS GRID EINSATZ

Name: MAGNETICS GRID EINSATZ
SKU: 708-103013029060
Availability: InStock

Colours

Order now Request consultation

More product information

From the same product family

MAGNETICS SPHERE M PD

MAGNETICS DARK EINSATZ

MAGNETICS OPAL EINSATZ

MAGNETICS F

MAGNETICS S PD

16 Items found Filter (0)

MAGNETICS GRID EINSATZ Chrome

Item no.

Colour temperature

Luminous flux

Dimmability

Beam angle

Item no. 708-10301302906d

Colour temperature 3000K

Luminous flux 210 lm

Dimmability DALI

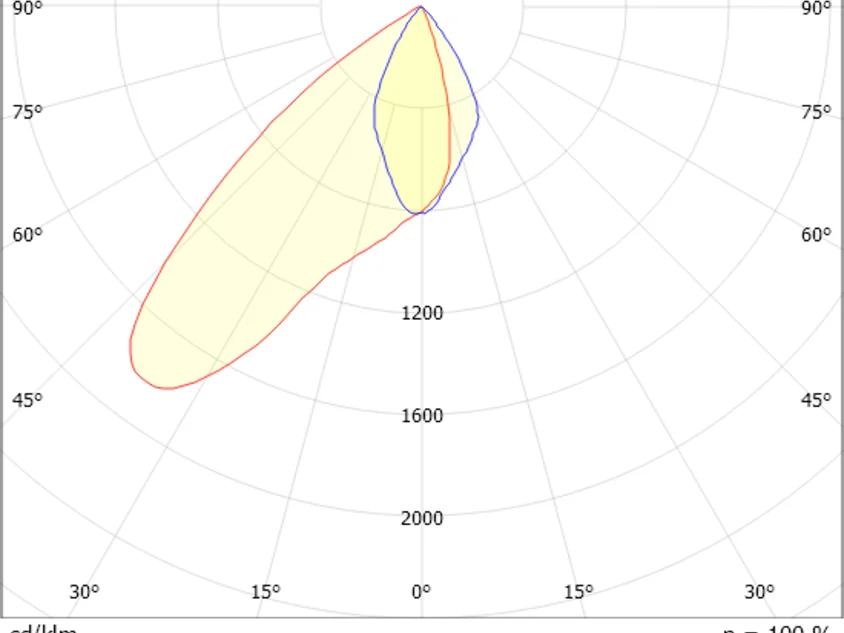

Beam angle asymmetric °

Specifications

Light source	LED
System performance	4 W
Luminous flux	210 lm
Colour temperature	3000K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct
Beam angle	asymmetric °
Voltage	24 VDC
Length	150 mm
Width	13,7 mm
Height	8,8 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 125,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-10301302706d

Colour temperature 3500K

Luminous flux 210 lm

Dimmability DALI

Beam angle asymmetric °

Specifications

Light source	LED
System performance	4 W
Luminous flux	210 lm
Colour temperature	3500K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct
Beam angle	asymmetric °
Voltage	24 VDC
Length	150 mm
Width	13,7 mm
Height	8,8 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 125,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-103013023060

Colour temperature 2700K

Luminous flux 200 lm

Dimmability not dimmable

Beam angle asymmetric °

Specifications

Light source	LED
System performance	4 W
Luminous flux	200 lm
Colour temperature	2700K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	asymmetric °
Voltage	24 VDC
Length	150 mm
Width	13,7 mm
Height	8,8 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 86,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-103013027060

Colour temperature 3500K

Luminous flux 210 lm

Dimmability not dimmable

Beam angle asymmetric °

Specifications

Light source	LED
System performance	4 W
Luminous flux	210 lm
Colour temperature	3500K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	asymmetric °
Voltage	24 VDC
Length	150 mm
Width	13,7 mm
Height	8,8 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 86,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-10301302306d

Colour temperature 2700K

Luminous flux 200 lm

Dimmability DALI

Beam angle asymmetric °

Specifications

Light source	LED
System performance	4 W
Luminous flux	200 lm
Colour temperature	2700K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct
Beam angle	asymmetric °
Voltage	24 VDC
Length	150 mm
Width	13,7 mm
Height	8,8 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 125,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-10301302406d

Colour temperature 4000K

Luminous flux 230 lm

Dimmability DALI

Beam angle asymmetric °

Specifications

Light source	LED
System performance	4 W
Luminous flux	230 lm
Colour temperature	4000K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct
Beam angle	asymmetric °
Voltage	24 VDC
Length	150 mm
Width	13,7 mm
Height	8,8 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 125,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-103013024060

Colour temperature 4000K

Luminous flux 230 lm

Dimmability not dimmable

Beam angle asymmetric °

Specifications

Light source	LED
System performance	4 W
Luminous flux	230 lm
Colour temperature	4000K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	asymmetric °
Voltage	24 VDC
Length	150 mm
Width	13,7 mm
Height	8,8 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 86,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-103013029060

Colour temperature 3000K

Luminous flux 210 lm

Dimmability not dimmable

Beam angle asymmetric °

Specifications

Light source	LED
System performance	4 W
Luminous flux	210 lm
Colour temperature	3000K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	asymmetric °
Voltage	24 VDC
Length	150 mm
Width	13,7 mm
Height	8,8 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 86,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

MAGNETICS GRID EINSATZ Dark Chrome

Item no.

Colour temperature

Luminous flux

Dimmability

Beam angle

Item no. 708-10301202906d

Colour temperature 3000K

Luminous flux 120 lm

Dimmability DALI

Beam angle 60° °

Specifications

Light source	LED
System performance	4 W
Luminous flux	120 lm
Colour temperature	3000K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct
Beam angle	60° °
Voltage	24 VDC
Length	150 mm
Width	13,3 mm
Height	9,1 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	dark chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 113,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-103012023060

Colour temperature 2700K

Luminous flux 110 lm

Dimmability not dimmable

Beam angle 60° °

Specifications

Light source	LED
System performance	4 W
Luminous flux	110 lm
Colour temperature	2700K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	60° °
Voltage	24 VDC
Length	150 mm
Width	13,3 mm
Height	9,1 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	dark chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 73,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-10301202306d

Colour temperature 2700K

Luminous flux 110 lm

Dimmability DALI

Beam angle 60° °

Specifications

Light source	LED
System performance	4 W
Luminous flux	110 lm
Colour temperature	2700K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct
Beam angle	60° °
Voltage	24 VDC
Length	150 mm
Width	13,3 mm
Height	9,1 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	dark chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 113,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-10301202706d

Colour temperature 3500K

Luminous flux 120 lm

Dimmability DALI

Beam angle 60° °

Specifications

Light source	LED
System performance	4 W
Luminous flux	120 lm
Colour temperature	3500K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct
Beam angle	60° °
Voltage	24 VDC
Length	150 mm
Width	13,3 mm
Height	9,1 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	dark chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 113,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-103012029060

Colour temperature 3000K

Luminous flux 120 lm

Dimmability not dimmable

Beam angle 60° °

Specifications

Light source	LED
System performance	4 W
Luminous flux	120 lm
Colour temperature	3000K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	60° °
Voltage	24 VDC
Length	150 mm
Width	13,3 mm
Height	9,1 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	dark chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 73,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-10301202406d

Colour temperature 4000K

Luminous flux 130 lm

Dimmability DALI

Beam angle 60° °

Specifications

Light source	LED
System performance	4 W
Luminous flux	130 lm
Colour temperature	4000K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct
Beam angle	60° °
Voltage	24 VDC
Length	150 mm
Width	13,3 mm
Height	9,1 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	dark chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 113,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-103012024060

Colour temperature 4000K

Luminous flux 130 lm

Dimmability not dimmable

Beam angle 60° °

Specifications

Light source	LED
System performance	4 W
Luminous flux	130 lm
Colour temperature	4000K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	60° °
Voltage	24 VDC
Length	150 mm
Width	13,3 mm
Height	9,1 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	dark chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 73,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-103012027060

Colour temperature 3500K

Luminous flux 120 lm

Dimmability not dimmable

Beam angle 60° °

Specifications

Light source	LED
System performance	4 W
Luminous flux	120 lm
Colour temperature	3500K
CRI	>90
Optics	high quality linear optics
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	60° °
Voltage	24 VDC
Length	150 mm
Width	13,3 mm
Height	9,1 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	synthetic
Colour of body	dark chrome
Lifetime	L80 B10 50 000 h
Energy efficiency class	G

Downloads

Availability & Price

RRP excl. VAT
€ 73,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality
