MAGNETICS SPOT S

Colours

Black

Order now Request consultation

From the same product family

MAGNETICS SPHERE M PD

MAGNETICS GRID EINSATZ

MAGNETICS DARK EINSATZ

MAGNETICS OPAL EINSATZ

MAGNETICS F

16 Items found Filter (0)

MAGNETICS SPOT S Black

Item no.

Length

Colour temperature

Luminous flux

Dimmability

Item no. 708-002010447060

Length 74,9 mm

Colour temperature 3500K

Luminous flux 330 lm

Dimmability not dimmable

Specifications

Light source	LED
System performance	4 W
Luminous flux	330 lm
Current sec.	195 mA
Colour temperature	3500K
CRI	PREMIUM>90
UGR	<19
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct

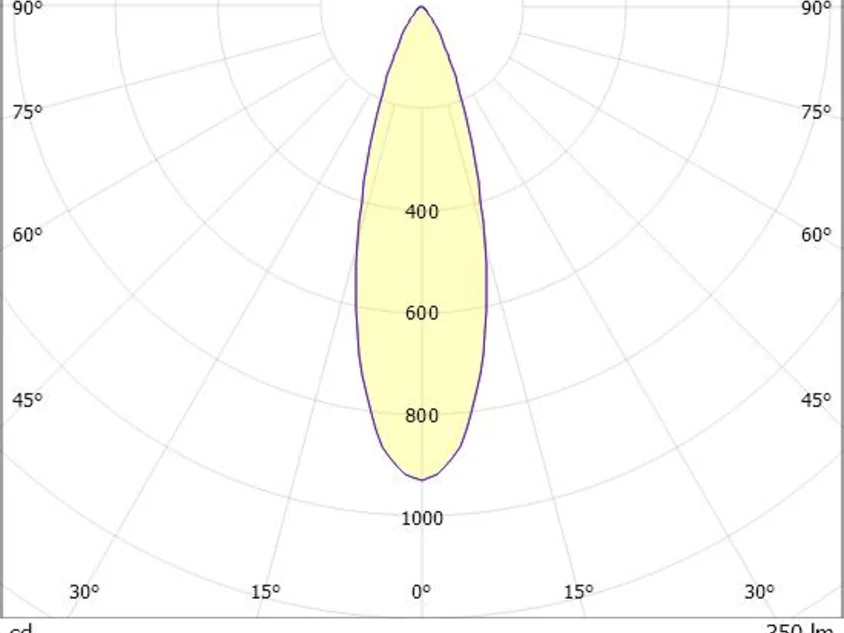

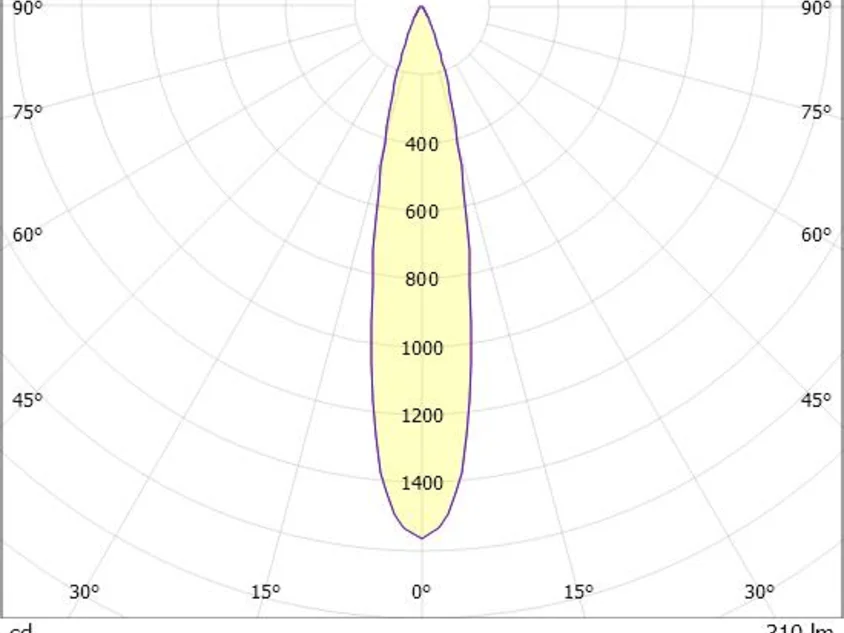

Beam angle	20°
Voltage	24 VDC
Length	74,9 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	E

Downloads

Availability & Price

RRP excl. VAT
€ 102,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-002010424060

Length 74,9 mm

Colour temperature 4000K

Luminous flux 340 lm

Dimmability not dimmable

Specifications

Light source	LED
System performance	4 W
Luminous flux	340 lm
Current sec.	195 mA
Colour temperature	4000K
CRI	>90
UGR	<19
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	20°
Voltage	24 VDC
Length	74,9 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	E

Downloads

Availability & Price

RRP excl. VAT
€ 102,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-10201064706d

Length 75 mm

Colour temperature 3500K

Luminous flux 350 lm

Dimmability DALI

Specifications

Light source	LED
System performance	4 W
Luminous flux	350 lm
Current sec.	195 mA
Colour temperature	3500K
CRI	PREMIUM>90
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct

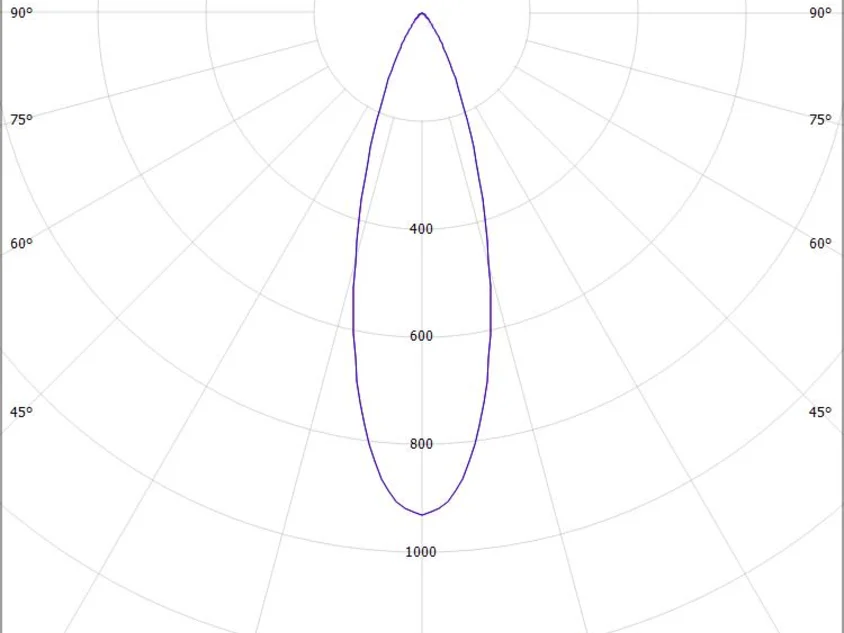

Beam angle	30°
Voltage	24 VDC
Length	75 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	E

Downloads

Availability & Price

RRP excl. VAT
€ 141,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-10201064906d

Length 75 mm

Colour temperature 3000K

Luminous flux 330 lm

Dimmability DALI

Specifications

Light source	LED
System performance	4 W
Luminous flux	330 lm
Current sec.	195 mA
Colour temperature	3000K
CRI	PREMIUM>90
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct

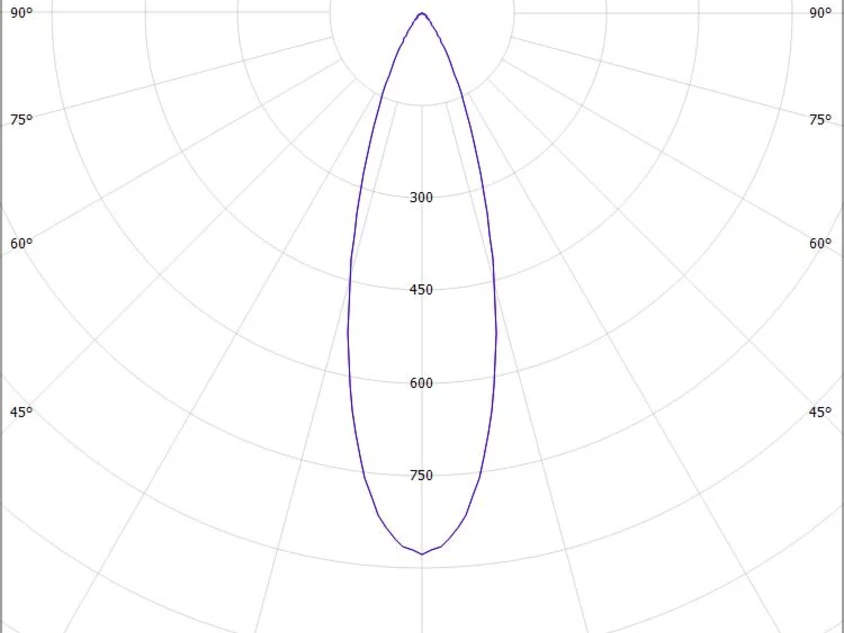

Beam angle	30°
Voltage	24 VDC
Length	75 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	E

Downloads

Availability & Price

RRP excl. VAT
€ 141,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-10201044706d

Length 75 mm

Colour temperature 3500K

Luminous flux 330 lm

Dimmability DALI

Specifications

Light source	LED
System performance	4 W
Luminous flux	330 lm
Current sec.	195 mA
Colour temperature	3500K
CRI	PREMIUM>90
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct

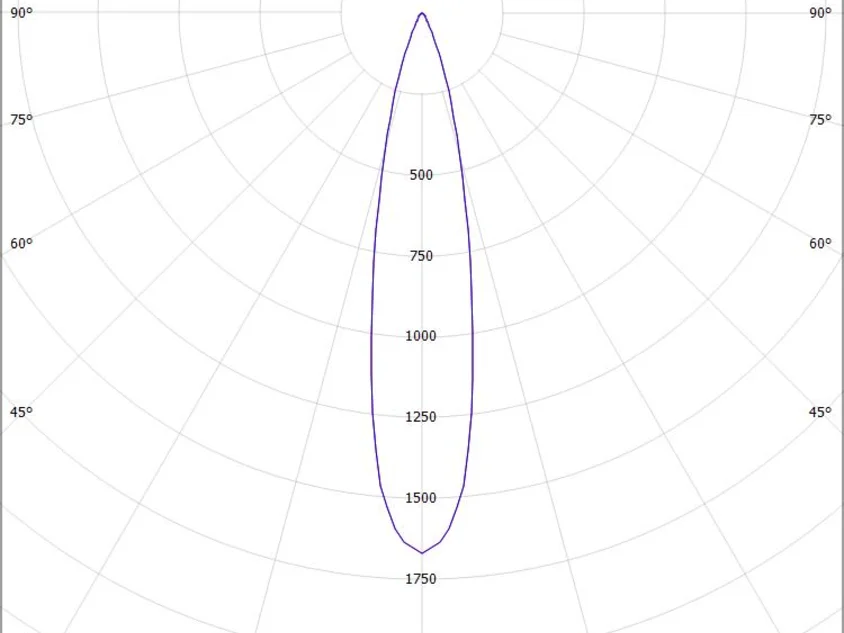

Beam angle	20°
Voltage	24 VDC
Length	75 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	E

Downloads

Availability & Price

RRP excl. VAT
€ 141,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-10201042406d

Length 75 mm

Colour temperature 4000K

Luminous flux 340 lm

Dimmability DALI

Specifications

Light source	LED
System performance	4 W
Luminous flux	340 lm
Current sec.	195 mA
Colour temperature	4000K
CRI	>90
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct
Beam angle	20°
Voltage	24 VDC
Length	75 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	E

Downloads

Availability & Price

RRP excl. VAT
€ 141,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-002010643060

Length 74,9 mm

Colour temperature 2700K

Luminous flux 310 lm

Dimmability not dimmable

Specifications

Light source	LED
System performance	4 W
Luminous flux	310 lm
Current sec.	195 mA
Colour temperature	2700K
CRI	PREMIUM>90
UGR	<19
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	24 VDC
Length	74,9 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	F

Downloads

Availability & Price

RRP excl. VAT
€ 102,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-10201062406d

Length 75 mm

Colour temperature 4000K

Luminous flux 360 lm

Dimmability DALI

Specifications

Light source	LED
System performance	4 W
Luminous flux	360 lm
Current sec.	195 mA
Colour temperature	4000K
CRI	>90
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct
Beam angle	30°
Voltage	24 VDC
Length	75 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	E

Downloads

Availability & Price

RRP excl. VAT
€ 141,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-002010649060

Length 74,9 mm

Colour temperature 3000K

Luminous flux 330 lm

Dimmability not dimmable

Specifications

Light source	LED
System performance	4 W
Luminous flux	330 lm
Current sec.	195 mA
Colour temperature	3000K
CRI	PREMIUM>90
UGR	<19
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct

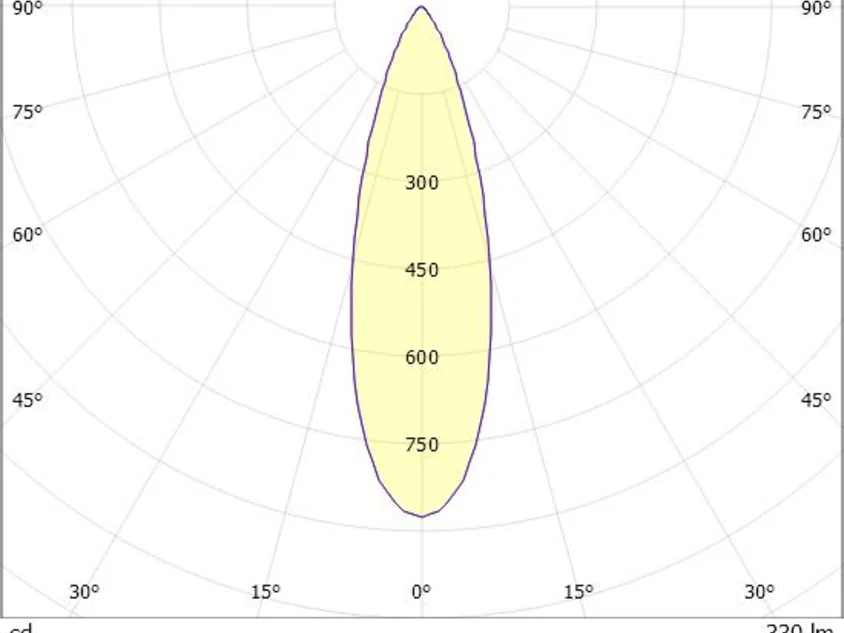

Beam angle	30°
Voltage	24 VDC
Length	74,9 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	E

Downloads

Availability & Price

RRP excl. VAT
€ 102,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-002010624060

Length 74,9 mm

Colour temperature 4000K

Luminous flux 360 lm

Dimmability not dimmable

Specifications

Light source	LED
System performance	4 W
Luminous flux	360 lm
Current sec.	195 mA
Colour temperature	4000K
CRI	>90
UGR	<19
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	24 VDC
Length	74,9 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	E

Downloads

Availability & Price

RRP excl. VAT
€ 102,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-10201044306d

Length 75 mm

Colour temperature 2700K

Luminous flux 290 lm

Dimmability DALI

Specifications

Light source	LED
System performance	4 W
Luminous flux	290 lm
Current sec.	195 mA
Colour temperature	2700K
CRI	PREMIUM>90
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct
Beam angle	20°
Voltage	24 VDC
Length	75 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	F

Downloads

Availability & Price

RRP excl. VAT
€ 141,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-10201064306d

Length 75 mm

Colour temperature 2700K

Luminous flux 310 lm

Dimmability DALI

Specifications

Light source	LED
System performance	4 W
Luminous flux	310 lm
Current sec.	195 mA
Colour temperature	2700K
CRI	PREMIUM>90
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct
Beam angle	30°
Voltage	24 VDC
Length	75 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	F

Downloads

Availability & Price

RRP excl. VAT
€ 141,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-002010443060

Length 74,9 mm

Colour temperature 2700K

Luminous flux 290 lm

Dimmability not dimmable

Specifications

Light source	LED
System performance	4 W
Luminous flux	290 lm
Current sec.	195 mA
Colour temperature	2700K
CRI	PREMIUM>90
UGR	<19
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	20°
Voltage	24 VDC
Length	74,9 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	F

Downloads

Availability & Price

RRP excl. VAT
€ 102,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-10201044906d

Length 75 mm

Colour temperature 3000K

Luminous flux 310 lm

Dimmability DALI

Specifications

Light source	LED
System performance	4 W
Luminous flux	310 lm
Current sec.	195 mA
Colour temperature	3000K
CRI	PREMIUM>90
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	DALI
Light emission area	direct
Beam angle	20°
Voltage	24 VDC
Length	75 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	E

Downloads

Availability & Price

RRP excl. VAT
€ 141,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-002010449060

Length 74,9 mm

Colour temperature 3000K

Luminous flux 310 lm

Dimmability not dimmable

Specifications

Light source	LED
System performance	4 W
Luminous flux	310 lm
Current sec.	195 mA
Colour temperature	3000K
CRI	PREMIUM>90
UGR	<19
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	20°
Voltage	24 VDC
Length	74,9 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	E

Downloads

Availability & Price

RRP excl. VAT
€ 102,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 708-002010647060

Length 74,9 mm

Colour temperature 3500K

Luminous flux 350 lm

Dimmability not dimmable

Specifications

Light source	LED
System performance	4 W
Luminous flux	350 lm
Current sec.	195 mA
Colour temperature	3500K
CRI	PREMIUM>90
UGR	<19
Optics	high-Precision-Anti-Glare-Lens
Designer	INHOUSE
Converter	without converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	24 VDC
Length	74,9 mm
Width	22 mm
Height	52 mm
Diameter	22 mm
IP protection class	IP20
IP protection class	protection cl. III
IK value	IK03
Material	aluminium
Colour of body	black
RAL	9005
Colour of adapter / ceiling base	black
Lifetime	L80 B10 50 000 h
Energy efficiency class	E

Downloads

Availability & Price

RRP excl. VAT
€ 102,30

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

MAGNETICS SPOT S

From the same product family

MAGNETICS in use
