OTIN M ROUND PRO R

Colours
Go to configurator
Order now Request consultation
More product information
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R

From the same product family

OTIN XL ROUND PRO R

OTIN XL ROUND PRO R
OTIN LENS L SQUARE R

OTIN LENS L SQUARE R
OTIN LENS L SQUARE SD

OTIN LENS L SQUARE SD
OTIN XL SQUARE PRO SD

OTIN XL SQUARE PRO SD
OTIN M SQUARE PRO SD

OTIN M SQUARE PRO SD
3 Items found Filter (0)
Colour temperature
Luminous flux
System performance
OTIN M ROUND PRO R White
Item no. Colour temperature Luminous flux System performance Optics
Item no. 227-011213022140050 Colour temperature 4000K Luminous flux 1900 lm System performance 11 W Optics opal diffuser
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
Specifications
Light source LED
System performance 11 W
Luminous flux 1900 lm
Current sec. 300 mA
Colour temperature 4000K
CRI >80
UGR <25
Optics opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Beam angle Wide beam (BS)
Voltage 220-240V AC/DC
Through wiring 2,5mm²

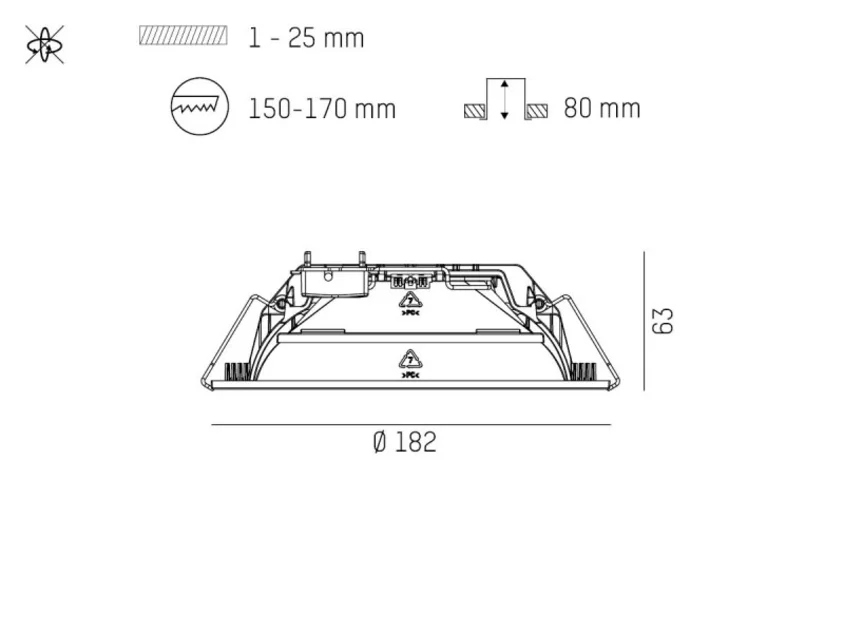

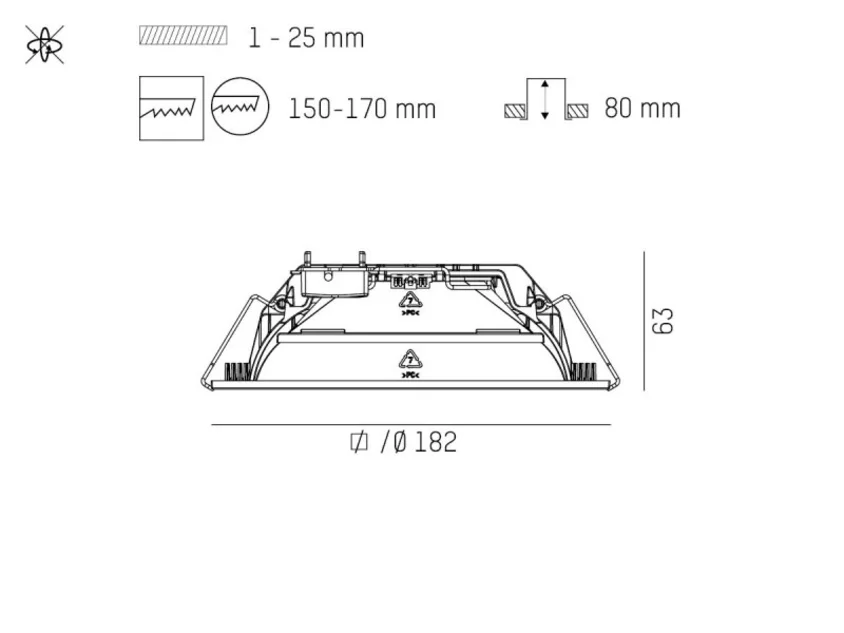

Height 63 mm
Diameter 182 mm
Ceiling cutout 150-170 mm
Ceiling thickness 1-25 mm
Mounting depth 80 mm
IP protection class IP54/IP20
IP protection class protection cl. II
IK value IK02
Material aluminium
Colour of body white
RAL 9016

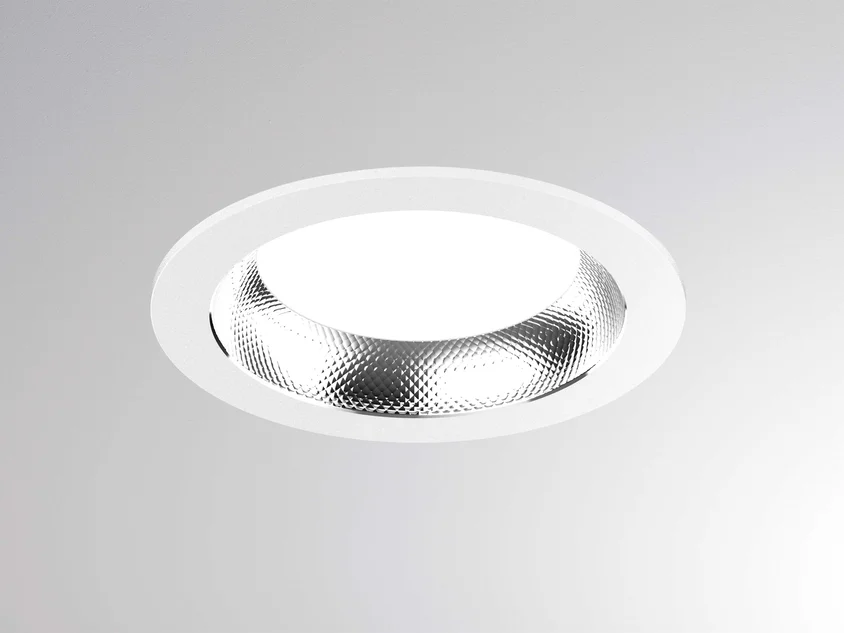

Colour of decor Faceted plastic reflector high-gloss
Lifetime L90 B10 100 000 h
Energy efficiency class B
Number of luminaires B16A 49
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 132,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 227-011213032190050 Colour temperature 3000K Luminous flux 2930 lm System performance 18 W Optics opal diffuser
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
Specifications
Light source LED
System performance 18 W
Luminous flux 2930 lm
Current sec. 500 mA
Colour temperature 3000K
CRI >80
UGR <25
Optics opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Beam angle Wide beam (BS)
Voltage 220-240V AC/DC
Through wiring 2,5mm²
Height 63 mm
Diameter 182 mm
Ceiling cutout 150-170 mm
Ceiling thickness 1-25 mm
Mounting depth 80 mm
IP protection class IP54/IP20
IP protection class protection cl. II
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Colour of decor Faceted plastic reflector high-gloss
Lifetime L90 B10 100 000 h
Energy efficiency class C
Number of luminaires B16A 45
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 132,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 227-011213022190050 Colour temperature 3000K Luminous flux 1780 lm System performance 11 W Optics opal diffuser
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
OTIN M ROUND PRO R
Specifications
Light source LED
System performance 11 W
Luminous flux 1780 lm
Current sec. 300 mA
Colour temperature 3000K
CRI >80
UGR <25
Optics opal diffuser
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct
Beam angle Wide beam (BS)
Voltage 220-240V AC/DC
Through wiring 2,5mm²
Height 63 mm
Diameter 182 mm
Ceiling cutout 150-170 mm
Ceiling thickness 1-25 mm
Mounting depth 80 mm
IP protection class IP54/IP20
IP protection class protection cl. II
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Colour of decor Faceted plastic reflector high-gloss
Lifetime L90 B10 100 000 h
Energy efficiency class C
Number of luminaires B16A 49
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 132,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality

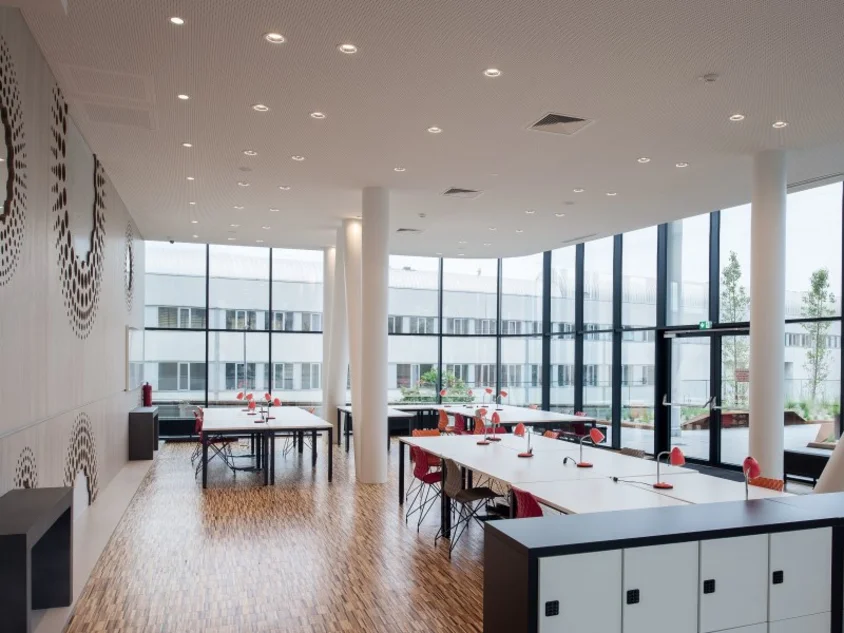

OTIN in use
