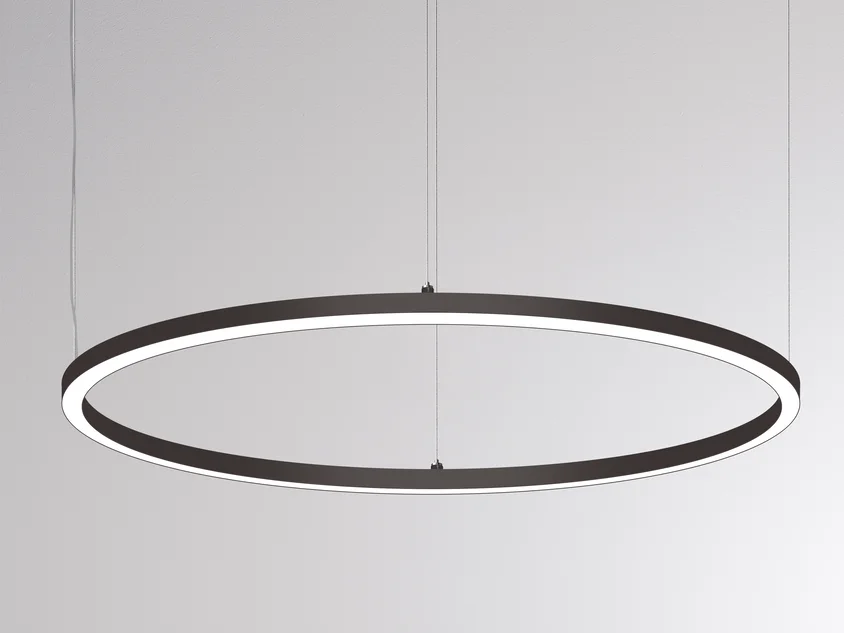

Ride Ring PD

Name: Ride Ring PD
Brand: Ride Ring
SKU: 675-20201102906d
Availability: InStock

Colours

Order product in Creative Colours

Order now Request consultation

More product information

Credit: Molto Luce

From the same product family

Ride Ring System 180°

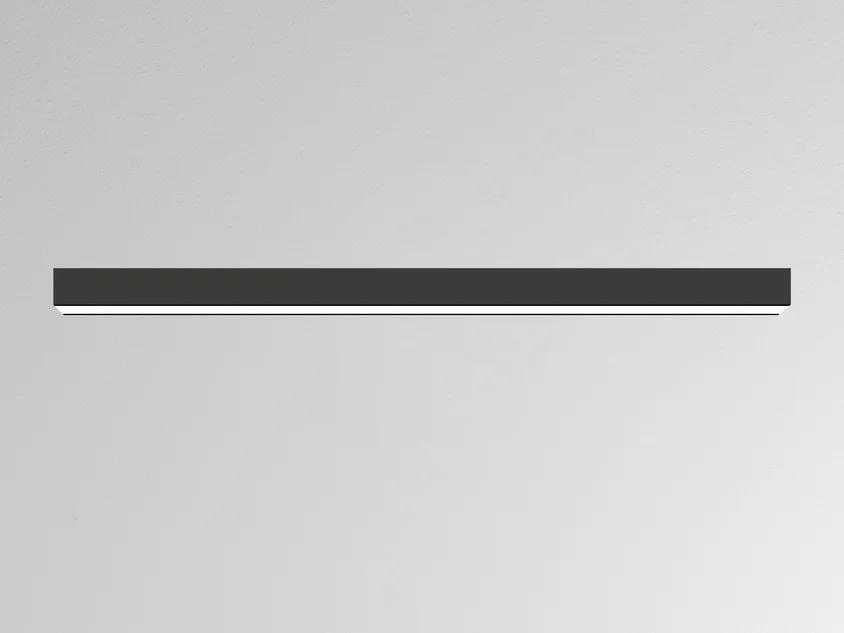

Ride Ring System Linear

Ride Ring System 90°

Ride Ring SD

20 Items found Filter (0)

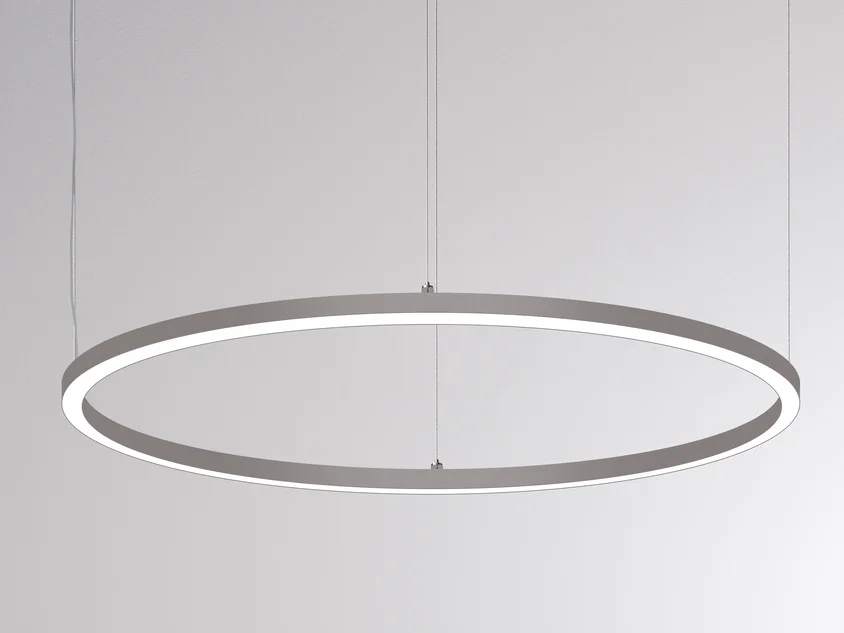

Ride Ring PD Grey

Item no.

Item no. 675-20101102304d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	38 W
Luminous Flux	3300 lm
Current Sec.	500 mA
Colour Temperature	2700K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	780,4 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	750 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	grey
RAL	9006
Colour of Adapter / Ceiling Base	grey
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.684,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20101102404d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	38 W
Luminous Flux	3730 lm
Current Sec.	500 mA
Colour Temperature	4000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	780,4 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	750 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	grey
RAL	9006
Colour of Adapter / Ceiling Base	grey
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.684,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20101102904d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	38 W
Luminous Flux	3590 lm
Current Sec.	500 mA
Colour Temperature	3000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	780,4 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	750 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	grey
RAL	9006
Colour of Adapter / Ceiling Base	grey
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.684,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20201102304d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	76 W
Luminous Flux	6610 lm
Current Sec.	500 mA
Colour Temperature	2700K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz

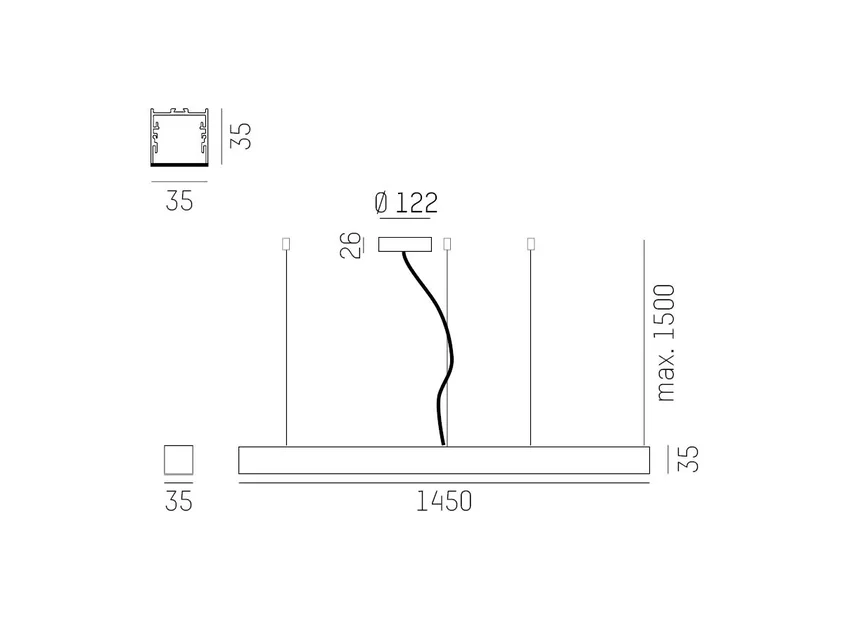

Length	1451,5 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	1450 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	grey
RAL	9006
Colour of Adapter / Ceiling Base	grey
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.479,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20201102404d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	76 W
Luminous Flux	7470 lm
Current Sec.	500 mA
Colour Temperature	4000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	1450 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	grey
RAL	9006
Colour of Adapter / Ceiling Base	grey
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.479,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20201102904d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	76 W
Luminous Flux	7180 lm
Current Sec.	500 mA
Colour Temperature	3000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	1450 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	grey
RAL	9006
Colour of Adapter / Ceiling Base	grey
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.479,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Ride Ring PD White

Item no.

Item no. 675-20101102305d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	38 W
Luminous Flux	3300 lm
Current Sec.	500 mA
Colour Temperature	2700K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	780,4 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	750 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	white
RAL	9016
Colour of Adapter / Ceiling Base	white
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.684,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20101102405d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	38 W
Luminous Flux	3730 lm
Current Sec.	500 mA
Colour Temperature	4000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	780,4 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	750 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	white
RAL	9016
Colour of Adapter / Ceiling Base	white
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.684,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20101102705d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	38 W
Luminous Flux	3590 lm
Current Sec.	500 mA
Colour Temperature	3500K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	780,4 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	750 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	white
RAL	9016
Colour of Adapter / Ceiling Base	white
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.684,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20101102905d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	38 W
Luminous Flux	3590 lm
Current Sec.	500 mA
Colour Temperature	3000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	780,4 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	750 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	white
RAL	9016
Colour of Adapter / Ceiling Base	white
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.684,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20201102305d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	76 W
Luminous Flux	6610 lm
Current Sec.	500 mA
Colour Temperature	2700K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	1450 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	white
RAL	9016
Colour of Adapter / Ceiling Base	white
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.479,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20201102405d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	76 W
Luminous Flux	7470 lm
Current Sec.	500 mA
Colour Temperature	4000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	1450 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	white
RAL	9016
Colour of Adapter / Ceiling Base	white
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.479,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20201102705d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	76 W
Luminous Flux	7180 lm
Current Sec.	500 mA
Colour Temperature	3500K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	1450 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	white
RAL	9016
Colour of Adapter / Ceiling Base	white
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.479,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20201102905d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	76 W
Luminous Flux	7180 lm
Current Sec.	500 mA
Colour Temperature	3000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	1450 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	white
RAL	9016
Colour of Adapter / Ceiling Base	white
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.479,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Ride Ring PD Black

Item no.

Item no. 675-20101102306d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	38 W
Luminous Flux	3300 lm
Current Sec.	500 mA
Colour Temperature	2700K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	780,4 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	750 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	black
RAL	9005
Colour of Adapter / Ceiling Base	black
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.684,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20101102406d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	38 W
Luminous Flux	3730 lm
Current Sec.	500 mA
Colour Temperature	4000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	780,4 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	750 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	black
RAL	9005
Colour of Adapter / Ceiling Base	black
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.684,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20101102906d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	38 W
Luminous Flux	3590 lm
Current Sec.	500 mA
Colour Temperature	3000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	780,4 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	750 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	black
RAL	9005
Colour of Adapter / Ceiling Base	black
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.684,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20201102306d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	76 W
Luminous Flux	6610 lm
Current Sec.	500 mA
Colour Temperature	2700K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	1450 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	black
RAL	9005
Colour of Adapter / Ceiling Base	black
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.479,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20201102406d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	76 W
Luminous Flux	7470 lm
Current Sec.	500 mA
Colour Temperature	4000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	1450 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	black
RAL	9005
Colour of Adapter / Ceiling Base	black
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.479,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-20201102906d

Credit: Molto Luce

Specifications

Light source	LED
System Performance	76 W
Luminous Flux	7180 lm
Current Sec.	500 mA
Colour Temperature	3000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light Emission Area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Length Pendant	1500 mm
Diameter	1450 mm
IP Protection Class	IP20
IP Protection Class	protection cl. I
Ik Value	IK03
Material	die-cast aluminium
Colour of Body	black
RAL	9005
Colour of Adapter / Ceiling Base	black
Creative Colours	JA
Cable	transparent
Lifetime	L80 B10 50 000 h
Energy Efficiency Class	E
Number of Luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.479,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

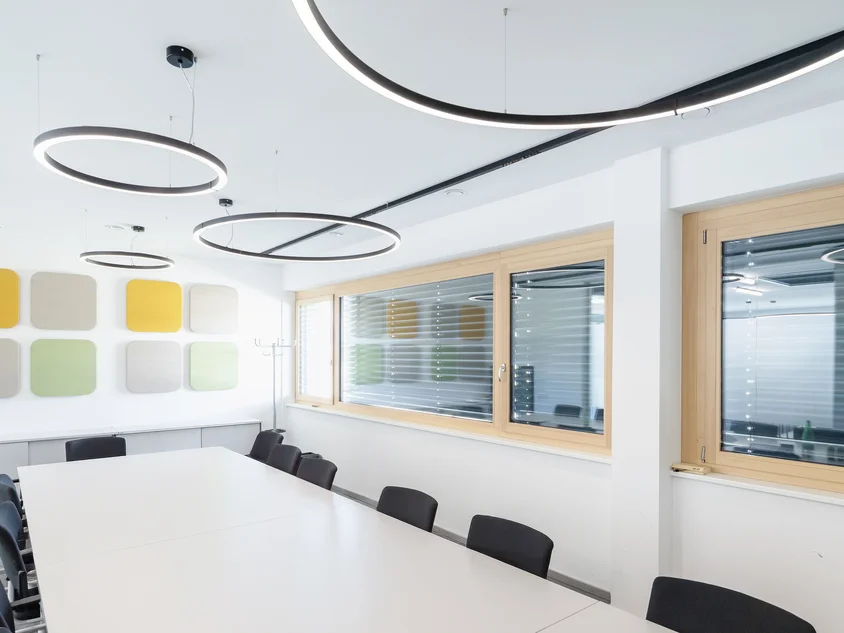

RIDE RING in use

Strabag Trautenfels

Trautenfels / Österreich

Ride Ring PD

From the same product family

RIDE RING in use

Strabag Trautenfels
