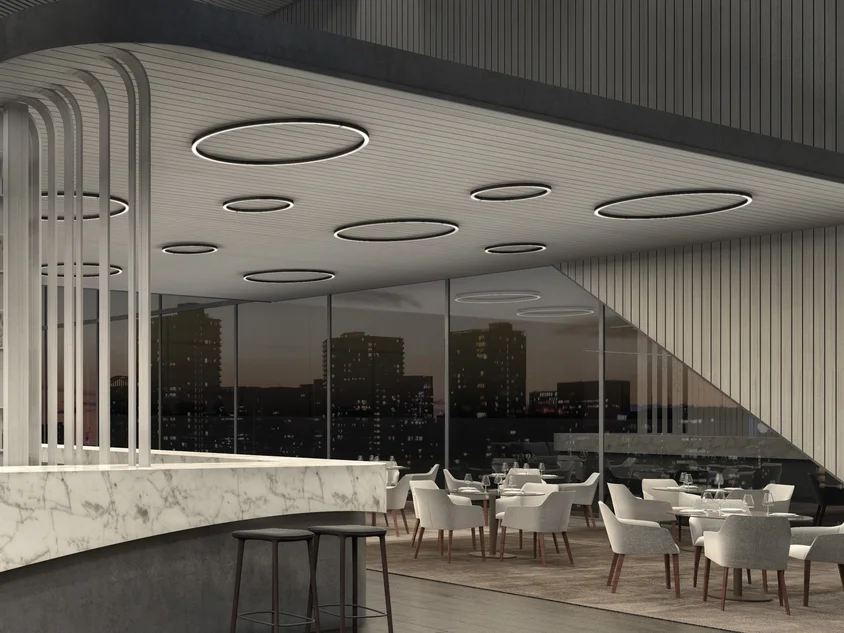

RIDE RING SD

Colours

Order product in Creative Colours

Order now Request consultation

More product information

Credit: Molto Luce

Credit: visualisation@nonstandard.at

From the same product family

RIDE RING SYSTEM 180°

RIDE RING SYSTEM LINEAR

RIDE RING SYSTEM 90°

RIDE RING PD

18 Items found Filter (0)

RIDE RING SD Grey

Item no.

Colour temperature

System performance

Creative Colours

CRI

Item no. 675-10101102904d

Colour temperature 3000K

System performance 38 W

Creative Colours JA

CRI >90

Credit: Molto Luce

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	38 W
Luminous flux	3590 lm
Current sec.	500 mA
Colour temperature	3000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	751,8 mm
Width	35 mm
Height	35 mm
Diameter	750 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	grey
RAL	9006
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.431,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-10101102304d

Colour temperature 2700K

System performance 38 W

Creative Colours JA

CRI >90

Credit: Molto Luce

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	38 W
Luminous flux	3300 lm
Current sec.	500 mA
Colour temperature	2700K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	751,8 mm
Width	35 mm
Height	35 mm
Diameter	750 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	grey
RAL	9006
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.431,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-10201102904d

Colour temperature 3000K

System performance 76 W

Creative Colours JA

CRI >90

Credit: Molto Luce

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	76 W
Luminous flux	7180 lm
Current sec.	500 mA
Colour temperature	3000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Diameter	1450 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	grey
RAL	9006
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.211,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-10201102404d

Colour temperature 4000K

System performance 76 W

Creative Colours JA

CRI >90

Credit: Molto Luce

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	76 W
Luminous flux	7470 lm
Current sec.	500 mA
Colour temperature	4000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Diameter	1450 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	grey
RAL	9006
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.211,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-10101102404d

Colour temperature 4000K

System performance 38 W

Creative Colours JA

CRI >90

Credit: Molto Luce

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	38 W
Luminous flux	3730 lm
Current sec.	500 mA
Colour temperature	4000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	751,8 mm
Width	35 mm
Height	35 mm
Diameter	750 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	grey
RAL	9006
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.431,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-10201102304d

Colour temperature 2700K

System performance 76 W

Creative Colours JA

CRI >90

Credit: Molto Luce

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	76 W
Luminous flux	6610 lm
Current sec.	500 mA
Colour temperature	2700K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Diameter	1450 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	grey
RAL	9006
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.211,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

RIDE RING SD Black

Item no.

Colour temperature

System performance

Creative Colours

CRI

Item no. 675-10201102306d

Colour temperature 2700K

System performance 76 W

Creative Colours JA

CRI >90

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	76 W
Luminous flux	6610 lm
Current sec.	500 mA
Colour temperature	2700K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Diameter	1450 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	black
RAL	9005
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.211,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-10101102306d

Colour temperature 2700K

System performance 38 W

Creative Colours JA

CRI >90

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	38 W
Luminous flux	3300 lm
Current sec.	500 mA
Colour temperature	2700K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	751,8 mm
Width	35 mm
Height	35 mm
Diameter	750 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	black
RAL	9005
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.431,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-10101102906d

Colour temperature 3000K

System performance 38 W

Creative Colours JA

CRI >90

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	38 W
Luminous flux	3590 lm
Current sec.	500 mA
Colour temperature	3000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	751,8 mm
Width	35 mm
Height	35 mm
Diameter	750 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	black
RAL	9005
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.431,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-10201102906d

Colour temperature 3000K

System performance 76 W

Creative Colours JA

CRI >90

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	76 W
Luminous flux	7180 lm
Current sec.	500 mA
Colour temperature	3000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Diameter	1450 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	black
RAL	9005
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.211,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-10201102406d

Colour temperature 4000K

System performance 76 W

Creative Colours JA

CRI >90

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	76 W
Luminous flux	7470 lm
Current sec.	500 mA
Colour temperature	4000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Diameter	1450 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	black
RAL	9005
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.211,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 675-10101102406d

Colour temperature 4000K

System performance 38 W

Creative Colours JA

CRI >90

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	38 W
Luminous flux	3730 lm
Current sec.	500 mA
Colour temperature	4000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	751,8 mm
Width	35 mm
Height	35 mm
Diameter	750 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	black
RAL	9005
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.431,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

RIDE RING SD White

Item no.

Colour temperature

System performance

Creative Colours

CRI

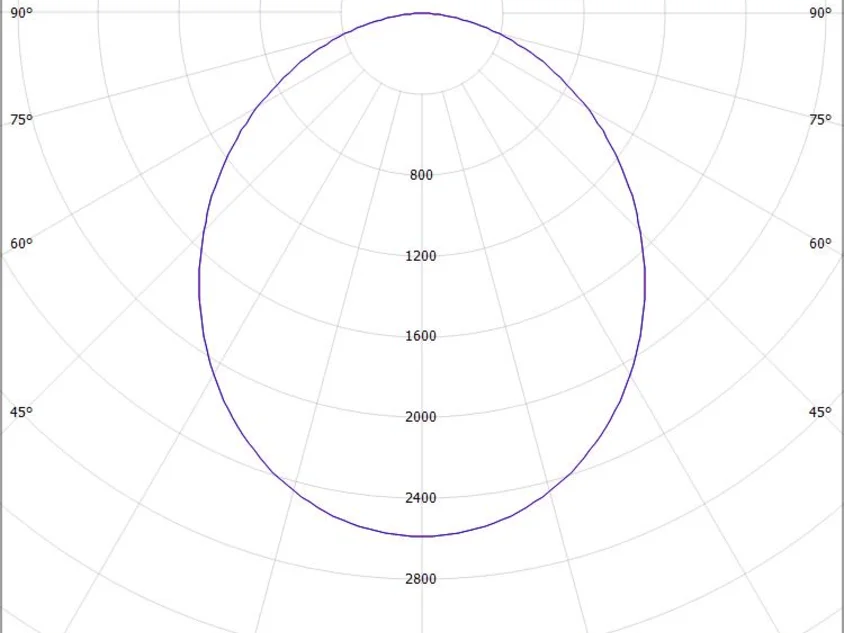

Item no. 675-10201102305d

Colour temperature 2700K

System performance 76 W

Creative Colours JA

CRI >90

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	76 W
Luminous flux	6610 lm
Current sec.	500 mA
Colour temperature	2700K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Diameter	1450 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	white
RAL	9016
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.211,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

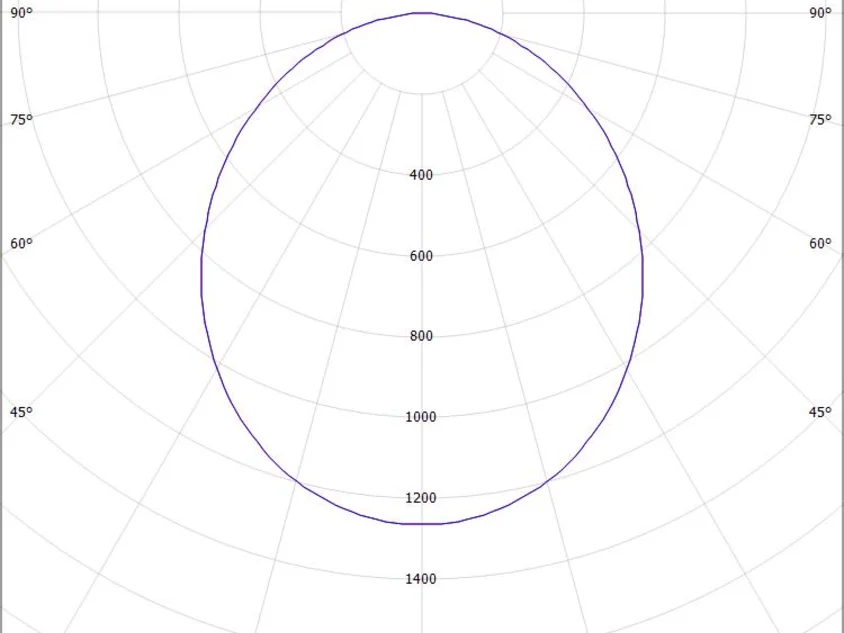

Item no. 675-10101102305d

Colour temperature 2700K

System performance 38 W

Creative Colours JA

CRI >90

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	38 W
Luminous flux	3300 lm
Current sec.	500 mA
Colour temperature	2700K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	751,8 mm
Width	35 mm
Height	35 mm
Diameter	750 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	white
RAL	9016
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.431,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

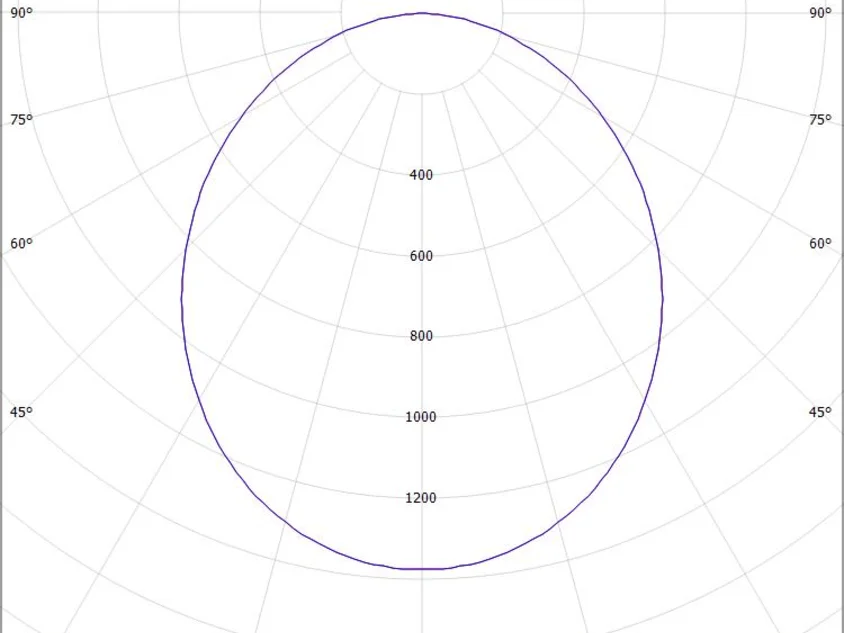

Item no. 675-10101102905d

Colour temperature 3000K

System performance 38 W

Creative Colours JA

CRI >90

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	38 W
Luminous flux	3590 lm
Current sec.	500 mA
Colour temperature	3000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	751,8 mm
Width	35 mm
Height	35 mm
Diameter	750 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	white
RAL	9016
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.431,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

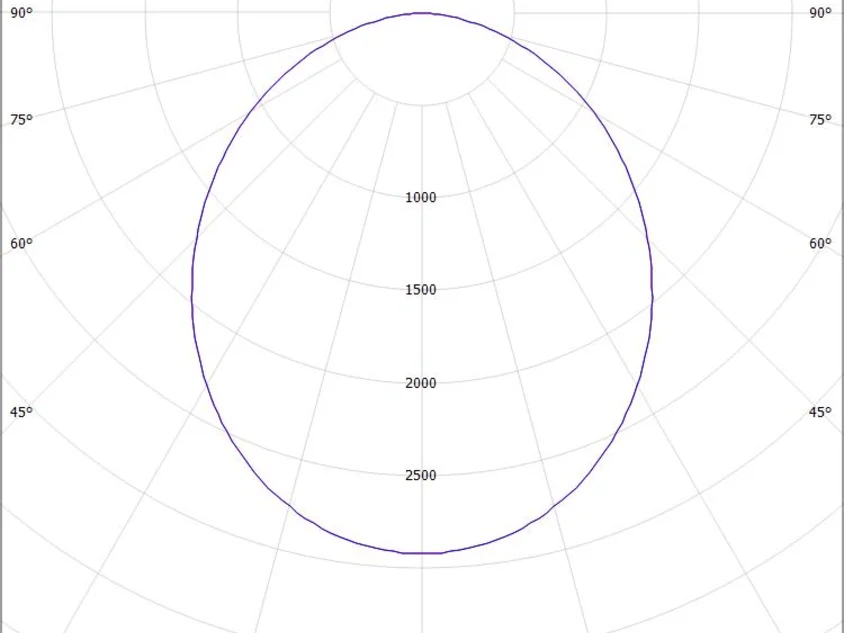

Item no. 675-10201102405d

Colour temperature 4000K

System performance 76 W

Creative Colours JA

CRI >90

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	76 W
Luminous flux	7470 lm
Current sec.	500 mA
Colour temperature	4000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Diameter	1450 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	white
RAL	9016
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.211,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

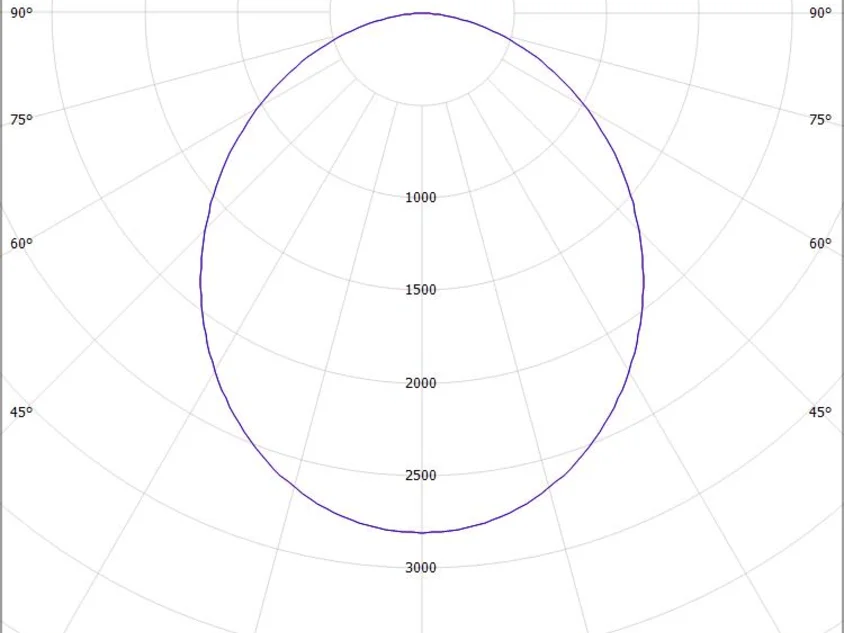

Item no. 675-10201102905d

Colour temperature 3000K

System performance 76 W

Creative Colours JA

CRI >90

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	76 W
Luminous flux	7180 lm
Current sec.	500 mA
Colour temperature	3000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	1451,5 mm
Width	35 mm
Height	35 mm
Diameter	1450 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	white
RAL	9016
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	16

Downloads

Availability & Price

RRP excl. VAT
€ 2.211,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

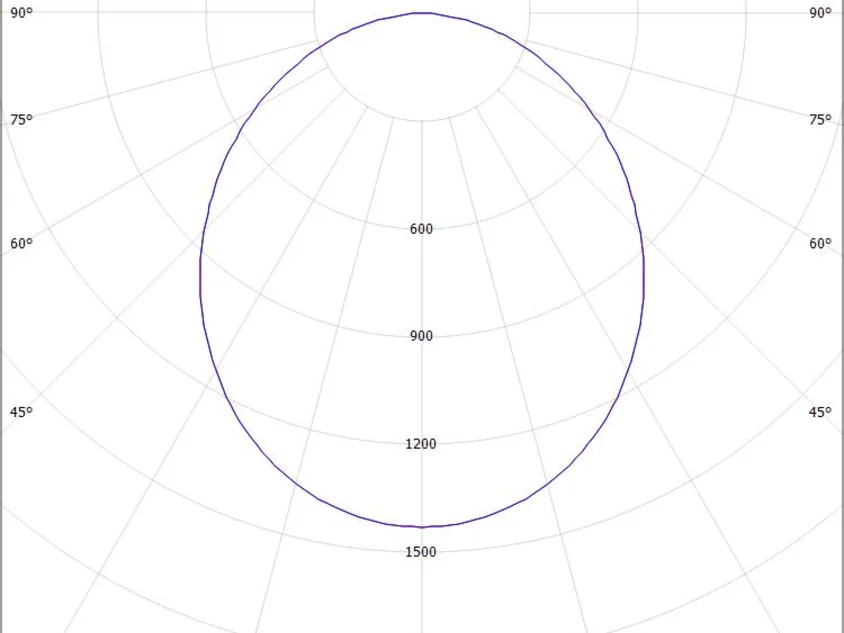

Item no. 675-10101102405d

Colour temperature 4000K

System performance 38 W

Creative Colours JA

CRI >90

Credit: visualisation@nonstandard.at

Specifications

Light source	LED
System performance	38 W
Luminous flux	3730 lm
Current sec.	500 mA
Colour temperature	4000K
CRI	>90
Optics	PMMA opal diffuser flat
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Voltage	220-240V 50/60Hz
Length	751,8 mm
Width	35 mm
Height	35 mm
Diameter	750 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	die-cast aluminium
Colour of body	white
RAL	9016
Creative Colours	JA
Lifetime	L80 B10 50 000 h
Number of luminaires B16A	25

Downloads

Availability & Price

RRP excl. VAT
€ 1.431,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality
