Components of this product family

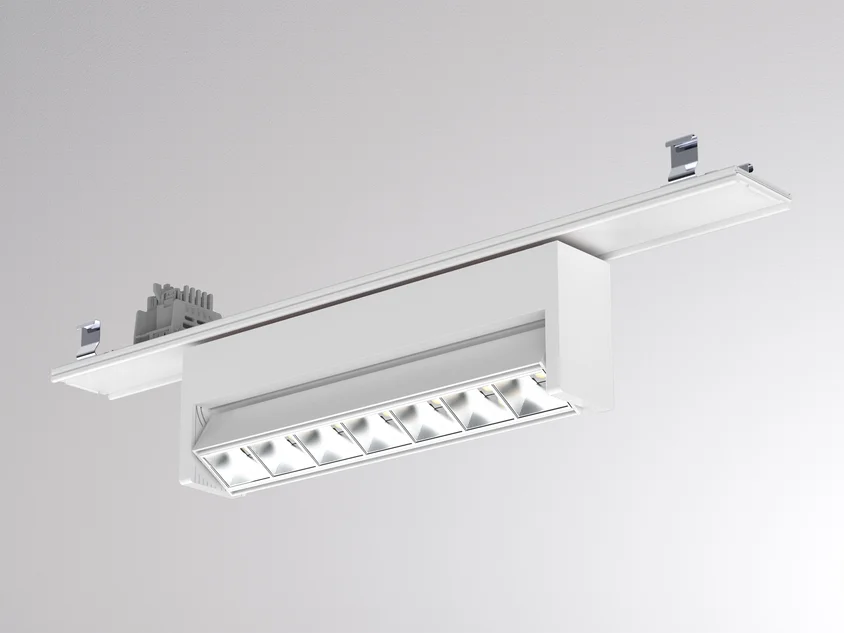

TRAIL TARIO 1

TRAIL TARIO 1
TRAIL TARIO 2

TRAIL TARIO 2
TRAIL SYSTEM T-CONNECTOR

TRAIL SYSTEM T-CONNECTOR
TRAIL MOVA M

TRAIL MOVA M
TRAIL LIGHT INSERT NB

TRAIL LIGHT INSERT NB
30 Items found Filter (0)
Length
Colour temperature
System performance
TRAIL LIGHT INSERT CUBIC MB UGR White
Item no. Length Colour temperature System performance CRI
Item no. 610-3268011519052 Length 2255 mm Colour temperature 3000K System performance 47 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 47 W
Luminous flux 7910 lm
Current sec. 250 mA
Colour temperature 3000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect

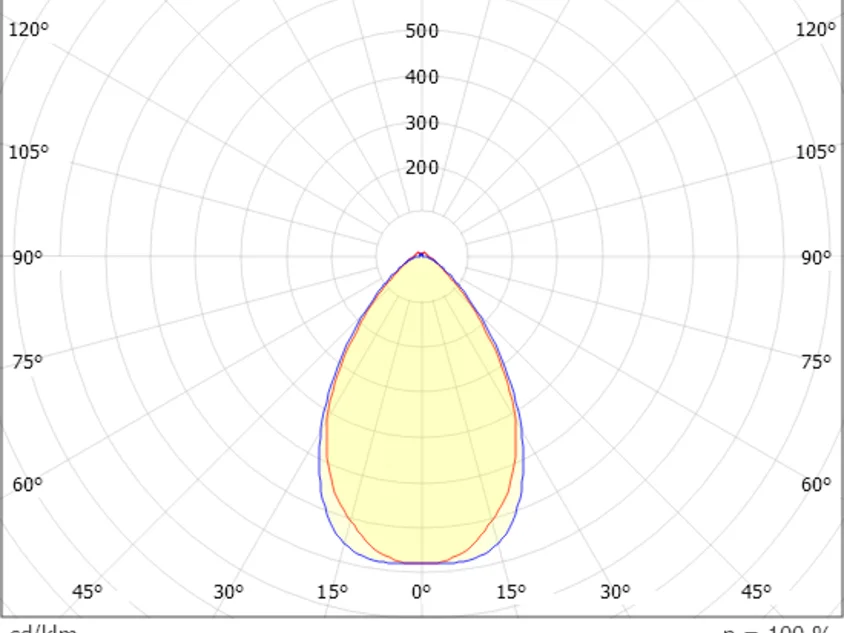

Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 2255 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 21
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 369,10
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3268011516052 Length 2255 mm Colour temperature 6500K System performance 47 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 47 W
Luminous flux 8340 lm
Current sec. 250 mA
Colour temperature 6500K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 2255 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 21
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 369,10
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3268011515050 Length 2255 mm Colour temperature 5000K System performance 47 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 47 W
Luminous flux 8340 lm
Current sec. 250 mA
Colour temperature 5000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 2255 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 36
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 331,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3267011514052 Length 1696 mm Colour temperature 4000K System performance 35 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 35 W
Luminous flux 6250 lm
Current sec. 250 mA
Colour temperature 4000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1696 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 38
IFS True
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 307,40
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3267011514050 Length 1696 mm Colour temperature 4000K System performance 35 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 35 W
Luminous flux 6250 lm
Current sec. 250 mA
Colour temperature 4000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1696 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 35
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 269,30
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3268011515052 Length 2255 mm Colour temperature 5000K System performance 47 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 47 W
Luminous flux 8340 lm
Current sec. 250 mA
Colour temperature 5000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 2255 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 21
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 369,10
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3267011519052 Length 1696 mm Colour temperature 3000K System performance 35 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 35 W
Luminous flux 5930 lm
Current sec. 250 mA
Colour temperature 3000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1696 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 38
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 307,40
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3267011519050 Length 1696 mm Colour temperature 3000K System performance 35 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 35 W
Luminous flux 5930 lm
Current sec. 250 mA
Colour temperature 3000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1696 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 35
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 269,30
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3268011514050 Length 2255 mm Colour temperature 4000K System performance 47 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 47 W
Luminous flux 8340 lm
Current sec. 250 mA
Colour temperature 4000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 2255 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 36
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 331,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3268011517050 Length 2255 mm Colour temperature 3500K System performance 47 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 47 W
Luminous flux 7910 lm
Current sec. 250 mA
Colour temperature 3500K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 2255 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 36
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 331,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3268011514052 Length 2255 mm Colour temperature 4000K System performance 47 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 47 W
Luminous flux 8340 lm
Current sec. 250 mA
Colour temperature 4000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 2255 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 21
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 369,10
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3268011517052 Length 2255 mm Colour temperature 3500K System performance 47 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 47 W
Luminous flux 7910 lm
Current sec. 250 mA
Colour temperature 3500K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 2255 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 21
IFS True
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Subsidizable >= 100 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 369,10
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3268011519050 Length 2255 mm Colour temperature 3000K System performance 47 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 47 W
Luminous flux 7910 lm
Current sec. 250 mA
Colour temperature 3000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 2255 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 36
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 331,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3268011516050 Length 2255 mm Colour temperature 6500K System performance 47 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 47 W
Luminous flux 8340 lm
Current sec. 250 mA
Colour temperature 6500K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 2255 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 36
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 331,00
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3266011517050 Length 1137 mm Colour temperature 3500K System performance 23,5 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 23,5 W
Luminous flux 3950 lm
Current sec. 250 mA
Colour temperature 3500K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1137 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 35
IFS True
Downloads
Availability & Price
RRP excl. VAT
€ 212,80
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3266011516052 Length 1137 mm Colour temperature 6500K System performance 23,5 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 23,5 W
Luminous flux 4170 lm
Current sec. 250 mA
Colour temperature 6500K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1137 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 38
IFS True
Downloads
Availability & Price
RRP excl. VAT
€ 250,80
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3266011515052 Length 1137 mm Colour temperature 5000K System performance 23,5 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 23,5 W
Luminous flux 4170 lm
Current sec. 250 mA
Colour temperature 5000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1137 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 38
IFS True
Downloads
Availability & Price
RRP excl. VAT
€ 250,80
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3267011516052 Length 1696 mm Colour temperature 6500K System performance 35 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 35 W
Luminous flux 6250 lm
Current sec. 250 mA
Colour temperature 6500K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1696 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 38
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 307,40
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3266011517052 Length 1137 mm Colour temperature 3500K System performance 23,5 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 23,5 W
Luminous flux 3950 lm
Current sec. 250 mA
Colour temperature 3500K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1137 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 38
IFS True
Downloads
Availability & Price
RRP excl. VAT
€ 250,80
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3266011515050 Length 1137 mm Colour temperature 5000K System performance 23,5 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 23,5 W
Luminous flux 4170 lm
Current sec. 250 mA
Colour temperature 5000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1137 mm
Width 64 mm
Height 25 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 35
IFS True
Downloads
Availability & Price
RRP excl. VAT
€ 212,80
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3266011514050 Length 1137 mm Colour temperature 4000K System performance 23,5 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 23,5 W
Luminous flux 4170 lm
Current sec. 250 mA
Colour temperature 4000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1137 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 35
IFS True
Downloads
Availability & Price
RRP excl. VAT
€ 212,80
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3266011516050 Length 1137 mm Colour temperature 6500K System performance 23,5 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 23,5 W
Luminous flux 4170 lm
Current sec. 250 mA
Colour temperature 6500K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1137 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 35
IFS True
Downloads
Availability & Price
RRP excl. VAT
€ 212,80
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3266011519052 Length 1137 mm Colour temperature 3000K System performance 23,5 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 23,5 W
Luminous flux 3950 lm
Current sec. 250 mA
Colour temperature 3000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1137 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 38
IFS True
Downloads
Availability & Price
RRP excl. VAT
€ 250,80
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3267011515052 Length 1696 mm Colour temperature 5000K System performance 35 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 35 W
Luminous flux 6250 lm
Current sec. 250 mA
Colour temperature 5000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1696 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 38
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 307,40
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3266011514052 Length 1137 mm Colour temperature 4000K System performance 23,5 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 23,5 W
Luminous flux 4170 lm
Current sec. 250 mA
Colour temperature 4000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1137 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 38
IFS True
Downloads
Availability & Price
RRP excl. VAT
€ 250,80
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3266011519050 Length 1137 mm Colour temperature 3000K System performance 23,5 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 23,5 W
Luminous flux 3950 lm
Current sec. 250 mA
Colour temperature 3000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1137 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 35
IFS True
Downloads
Availability & Price
RRP excl. VAT
€ 212,80
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3267011516050 Length 1696 mm Colour temperature 6500K System performance 35 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 35 W
Luminous flux 6250 lm
Current sec. 250 mA
Colour temperature 6500K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1696 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 35
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 269,30
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3267011515050 Length 1696 mm Colour temperature 5000K System performance 35 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 35 W
Luminous flux 6250 lm
Current sec. 250 mA
Colour temperature 5000K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1696 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 35
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 269,30
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3267011517050 Length 1696 mm Colour temperature 3500K System performance 35 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 35 W
Luminous flux 5930 lm
Current sec. 250 mA
Colour temperature 3500K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability not dimmable
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1696 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 35
IFS True
Subsidizable >= 140 Lm/W
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 269,30
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 610-3267011517052 Length 1696 mm Colour temperature 3500K System performance 35 W CRI >80
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
TRAIL LIGHT INSERT CUBIC MB UGR
Specifications
Light source LED
System performance 35 W
Luminous flux 5930 lm
Current sec. 250 mA
Colour temperature 3500K
CRI >80
UGR <19
Optics PMMA diffuser cubic
Designer INHOUSE
Converter with converter
Dimmability DALI 2
Light emission area direct / indirect
Beam angle 60°
Voltage 220-240V 50/60Hz
Through wiring 7-polig
Length 1696 mm
Width 64 mm
Height 35 mm
IP protection class IP54
IP protection class protection cl. I
IK value IK02
Material aluminium
Colour of body white
RAL 9016
Lifetime L90 B10 100 000 h
Ambient temperature from -20° to +50°
Energy efficiency class C
Number of luminaires B16A 38
IFS True
Subsidizable >= 100 Lm/W
Subsidizable >= 120 Lm/W
Subsidizable >= 140 Lm/W
Downloads
Availability & Price
RRP excl. VAT
€ 307,40
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality

TRAIL in use
