TRAIL LIGHT INSERT NB

Colours

Order now Request consultation

More product information

From the same product family

TRAIL TARIO 1

TRAIL TARIO 2

TRAIL SYSTEM T-CONNECTOR

TRAIL MOVA M

TRAIL LIGHT INSERT OFFICE DARK CHROM

45 Items found Filter (0)

TRAIL LIGHT INSERT NB Grey

Item no.

Length

Colour temperature

System performance

CRI

Item no. 610-1252011416040

Length 1696 mm

Colour temperature 6500K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	5790 lm
Current sec.	250 mA
Colour temperature	6500K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct

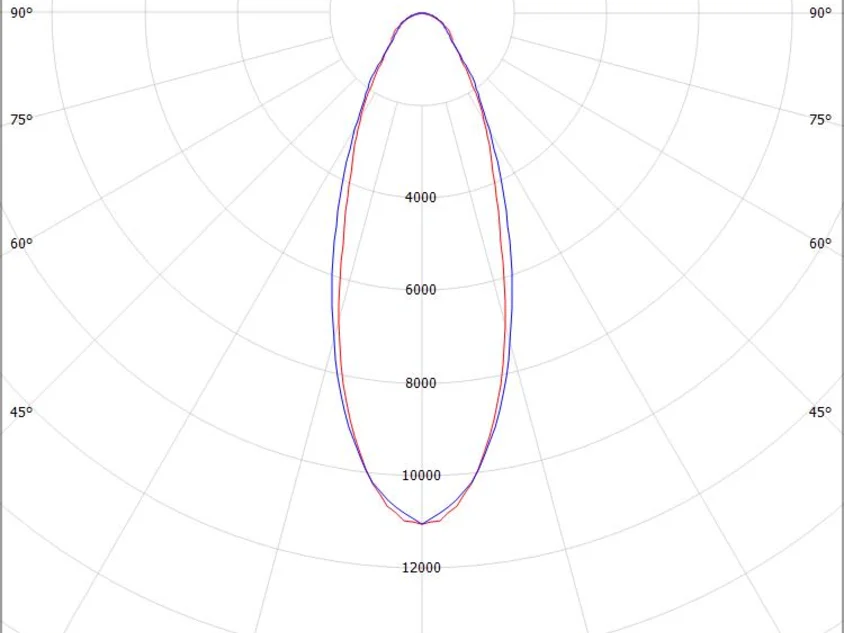

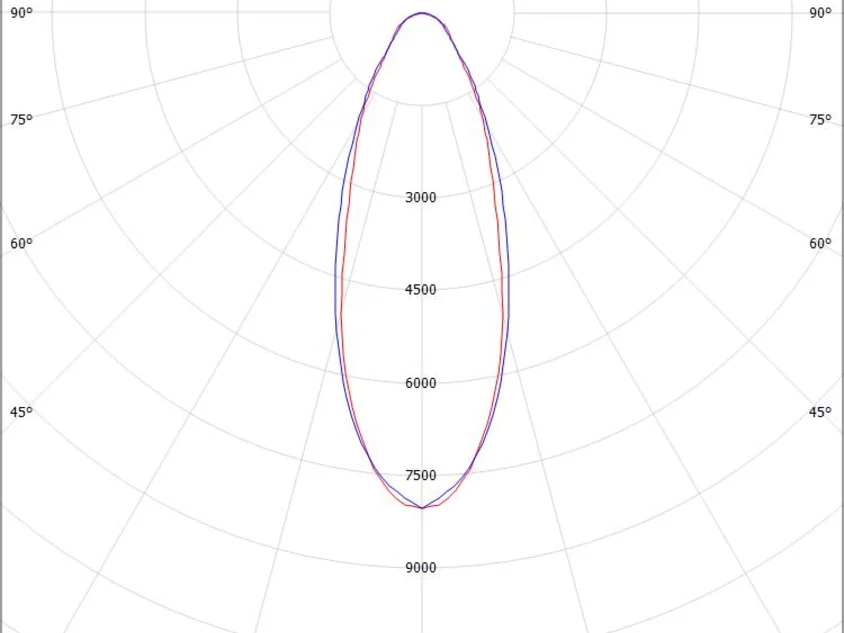

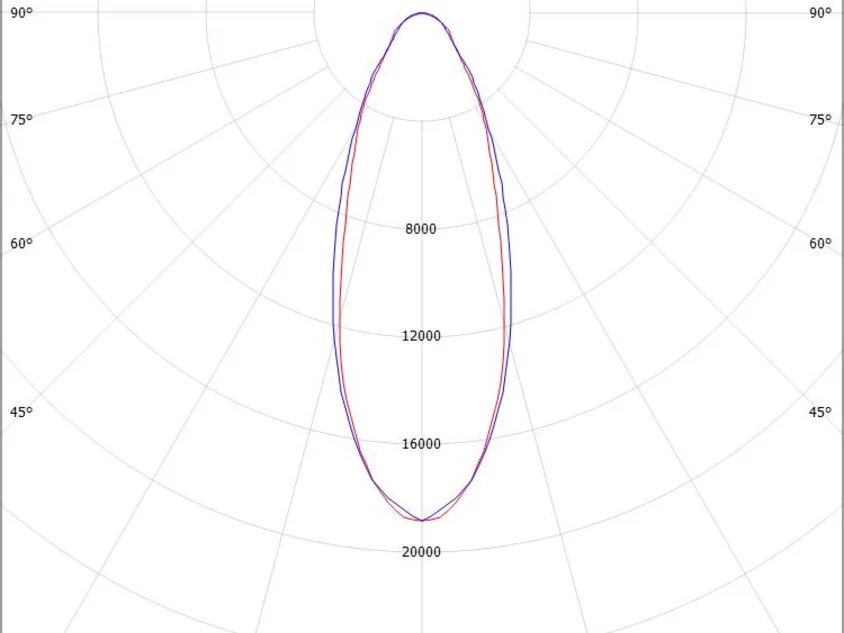

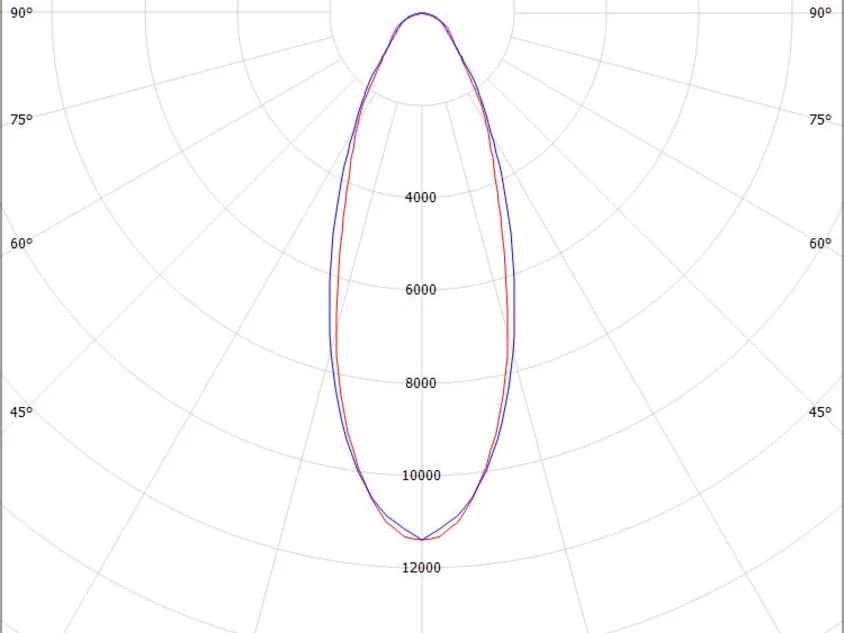

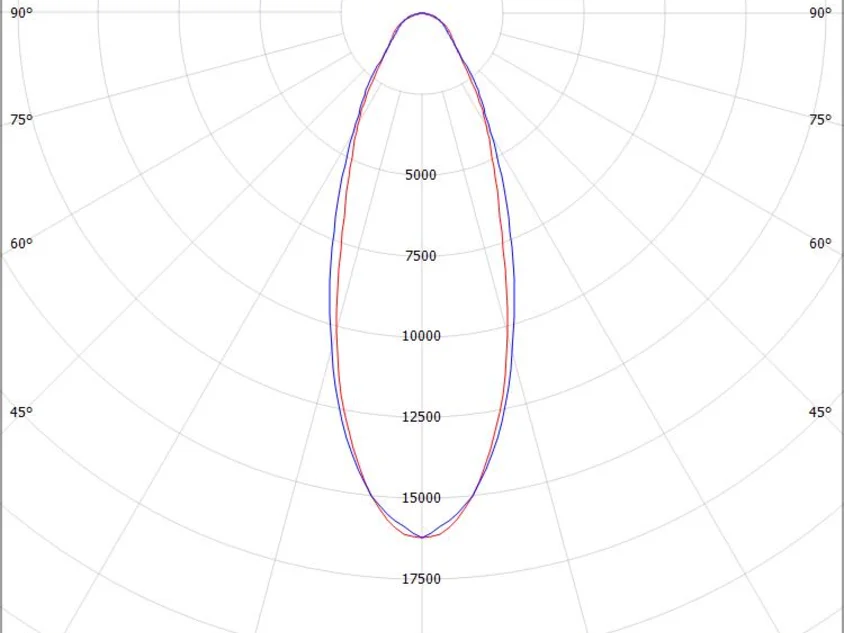

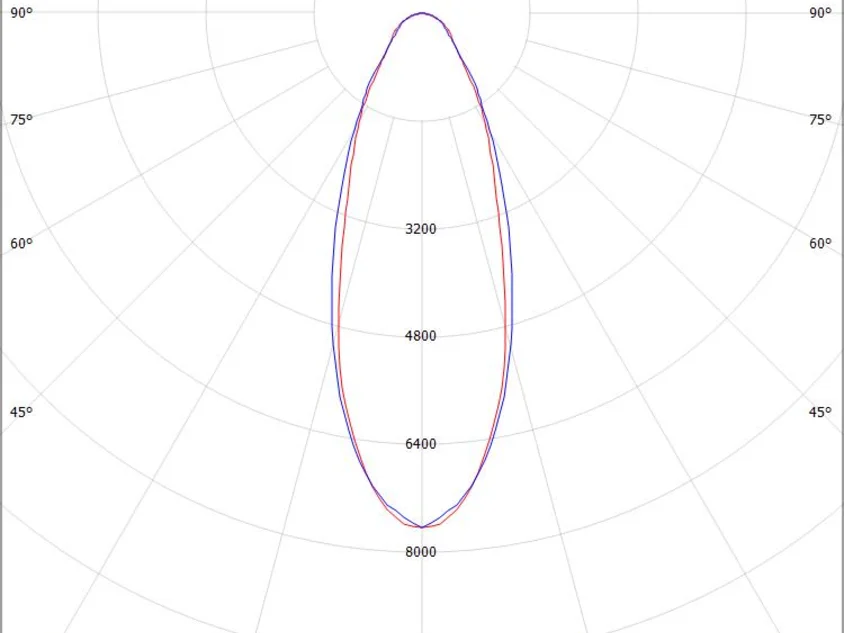

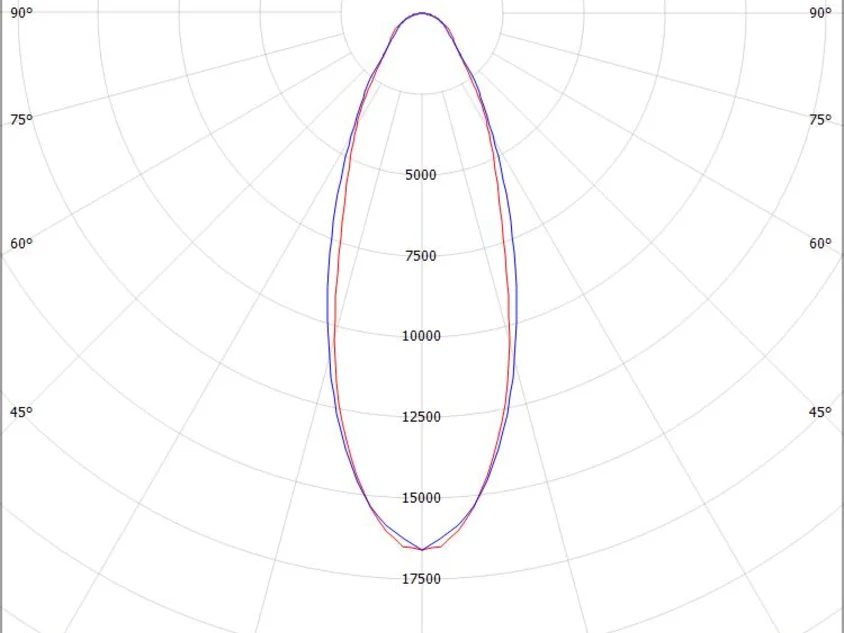

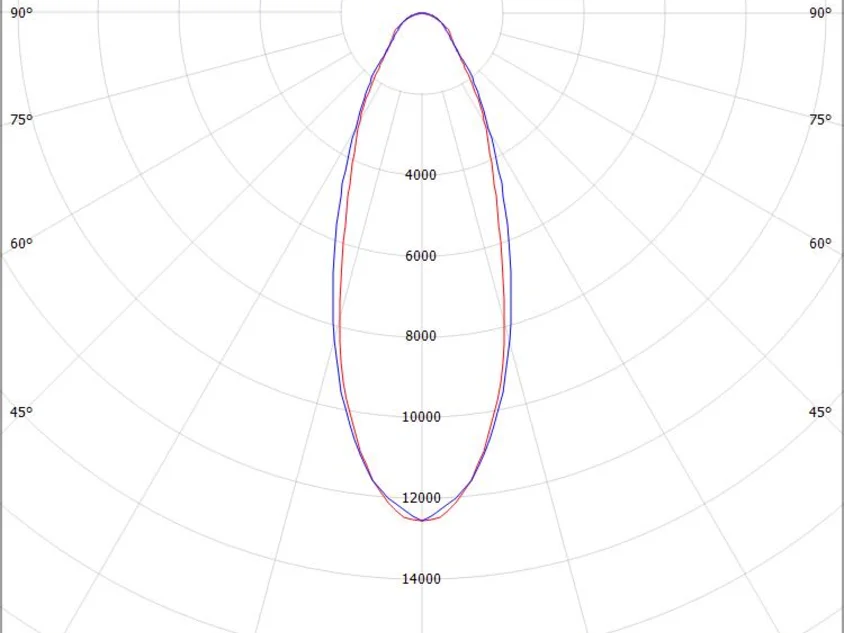

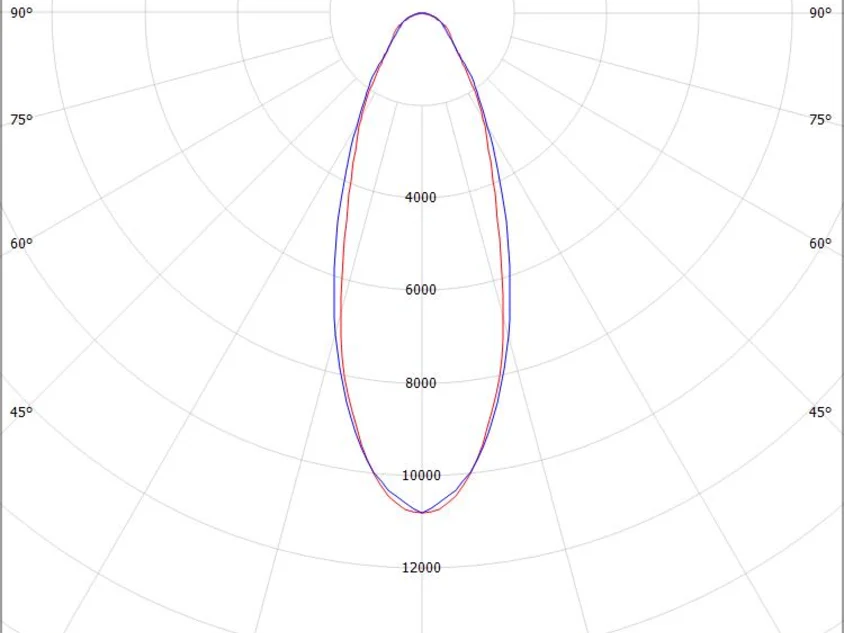

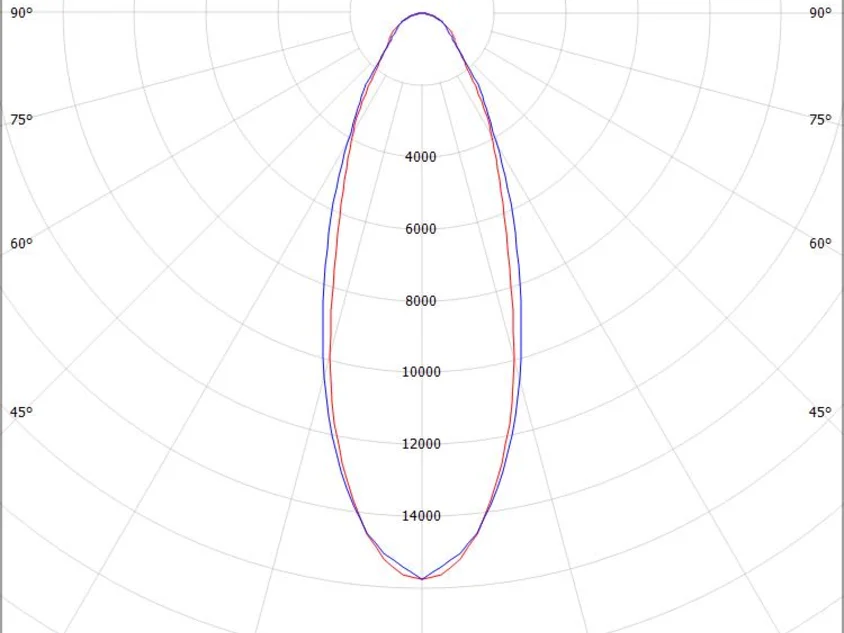

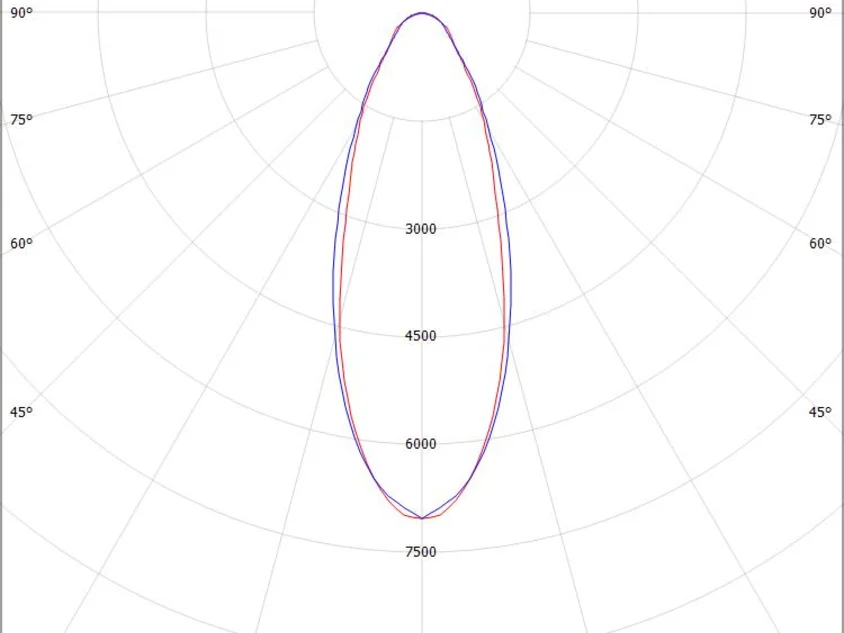

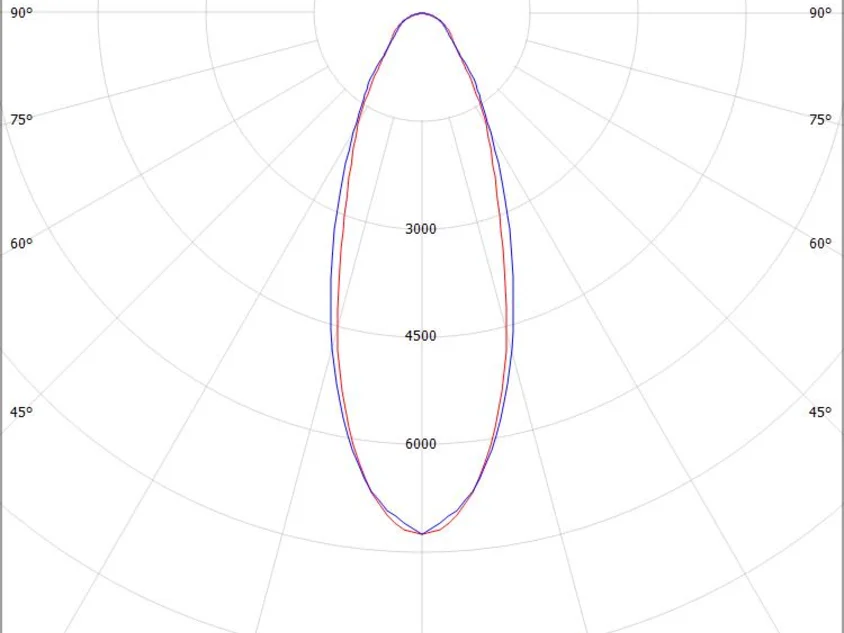

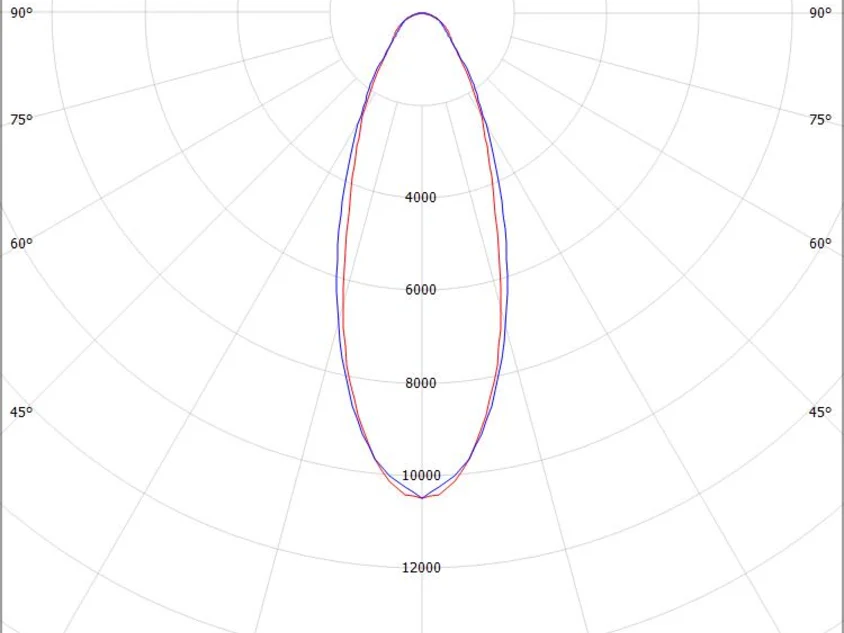

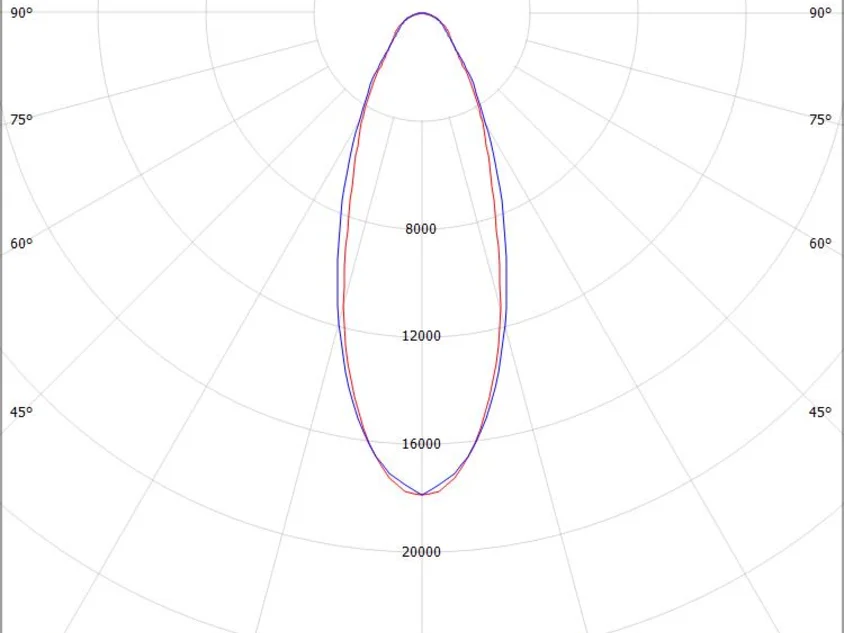

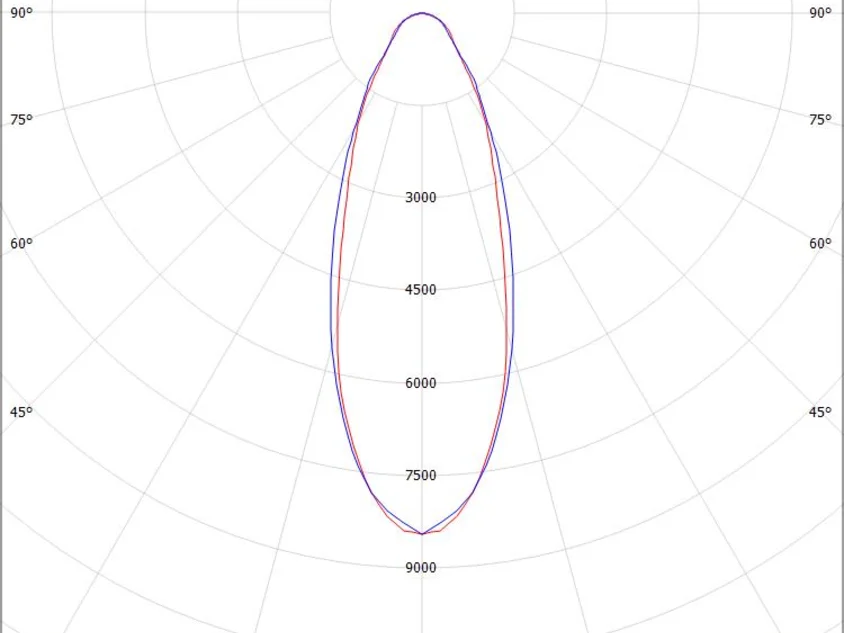

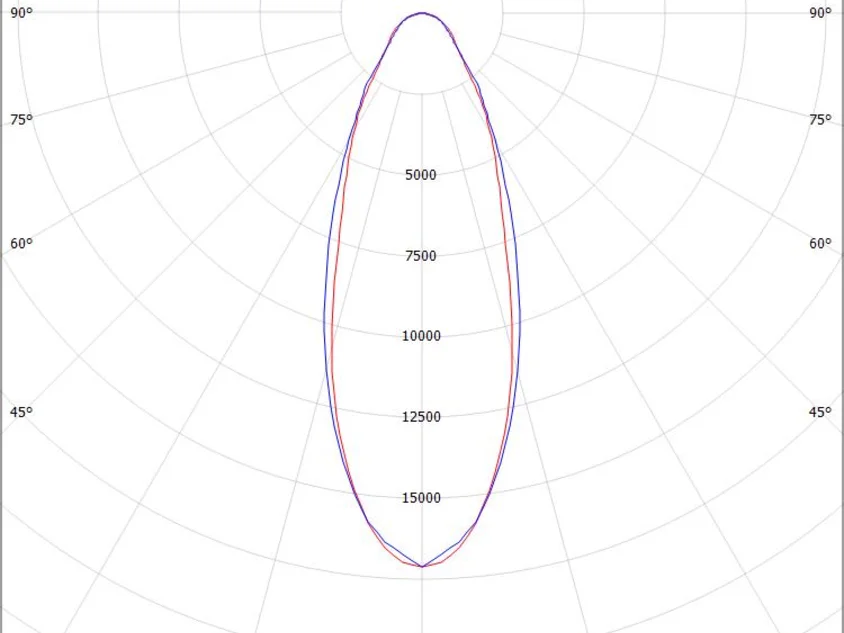

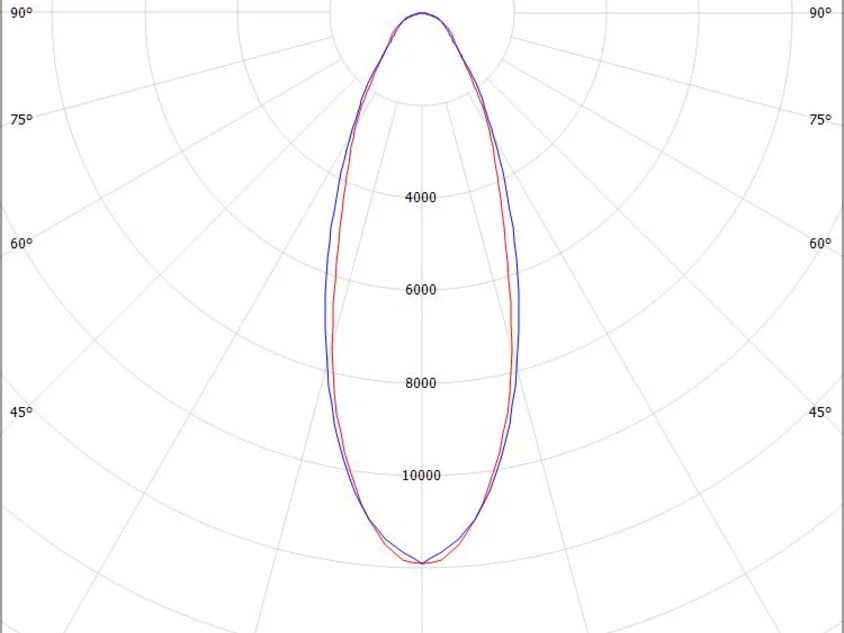

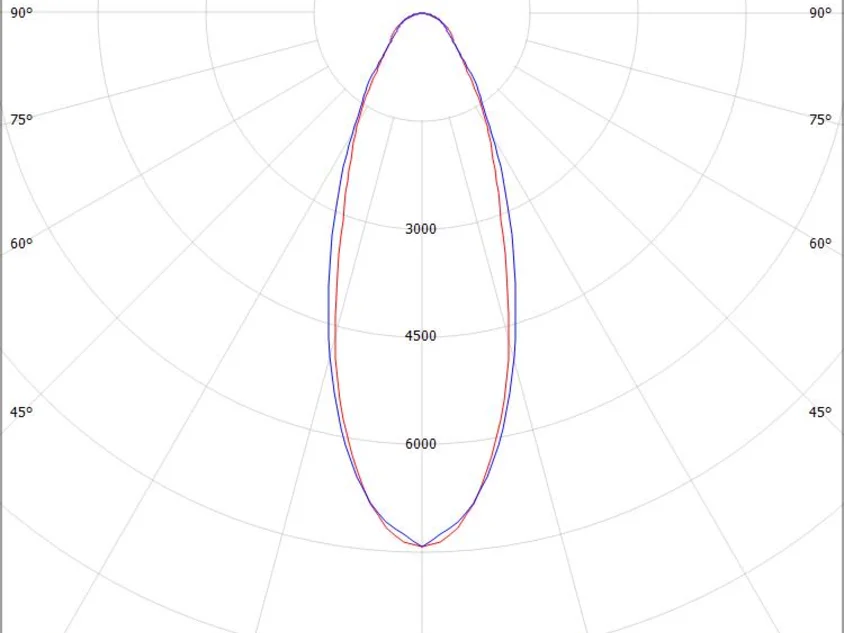

Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 208,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031416040

Length 1696 mm

Colour temperature 6500K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	12970 lm
Current sec.	600 mA
Colour temperature	6500K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 273,20

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252011417040

Length 1696 mm

Colour temperature 3500K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	5490 lm
Current sec.	250 mA
Colour temperature	3500K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 208,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031417040

Length 1696 mm

Colour temperature 3500K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	12300 lm
Current sec.	600 mA
Colour temperature	3500K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 273,20

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252011419040

Length 1696 mm

Colour temperature 3000K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	5490 lm
Current sec.	250 mA
Colour temperature	3000K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 208,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031419040

Length 1696 mm

Colour temperature 3000K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	12300 lm
Current sec.	600 mA
Colour temperature	3000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 273,20

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031419040

Length 1137 mm

Colour temperature 3000K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	8200 lm
Current sec.	600 mA
Colour temperature	3000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 230,80

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031415040

Length 1696 mm

Colour temperature 5000K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	12970 lm
Current sec.	600 mA
Colour temperature	5000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W
Subsidizable	>= 100 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 258,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252011414040

Length 1696 mm

Colour temperature 4000K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	5790 lm
Current sec.	250 mA
Colour temperature	4000K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 208,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031415040

Length 1137 mm

Colour temperature 5000K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	8640 lm
Current sec.	600 mA
Colour temperature	5000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 217,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031414040

Length 1696 mm

Colour temperature 4000K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	12970 lm
Current sec.	600 mA
Colour temperature	4000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 273,20

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252011415040

Length 1696 mm

Colour temperature 5000K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	5790 lm
Current sec.	250 mA
Colour temperature	5000K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 195,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031414040

Length 1137 mm

Colour temperature 4000K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	8640 lm
Current sec.	600 mA
Colour temperature	4000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 230,80

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031416040

Length 1137 mm

Colour temperature 6500K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	8640 lm
Current sec.	600 mA
Colour temperature	6500K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 140 Lm/W
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 230,80

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031417040

Length 1137 mm

Colour temperature 3500K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	8200 lm
Current sec.	600 mA
Colour temperature	3500K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 230,80

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

TRAIL LIGHT INSERT NB White

Item no.

Length

Colour temperature

System performance

CRI

Item no. 610-1252011416050

Length 1696 mm

Colour temperature 6500K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	6380 lm
Current sec.	250 mA
Colour temperature	6500K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W
Subsidizable	>= 100 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 208,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031416050

Length 1696 mm

Colour temperature 6500K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	14280 lm
Current sec.	600 mA
Colour temperature	6500K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 273,20

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252011417050

Length 1696 mm

Colour temperature 3500K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	6050 lm
Current sec.	250 mA
Colour temperature	3500K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 208,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031417050

Length 1696 mm

Colour temperature 3500K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	13550 lm
Current sec.	600 mA
Colour temperature	3500K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 273,20

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252011419050

Length 1696 mm

Colour temperature 3000K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	6050 lm
Current sec.	250 mA
Colour temperature	3000K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 140 Lm/W
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 208,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031419050

Length 1696 mm

Colour temperature 3000K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	13550 lm
Current sec.	600 mA
Colour temperature	3000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 273,20

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031419050

Length 1137 mm

Colour temperature 3000K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	9030 lm
Current sec.	600 mA
Colour temperature	3000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W
Subsidizable	>= 100 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 230,80

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031415050

Length 1696 mm

Colour temperature 5000K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	14280 lm
Current sec.	600 mA
Colour temperature	5000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 258,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252011414050

Length 1696 mm

Colour temperature 4000K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	6380 lm
Current sec.	250 mA
Colour temperature	4000K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 208,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031415050

Length 1137 mm

Colour temperature 5000K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	9520 lm
Current sec.	600 mA
Colour temperature	5000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 217,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031414050

Length 1696 mm

Colour temperature 4000K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	14280 lm
Current sec.	600 mA
Colour temperature	4000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 273,20

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252011415050

Length 1696 mm

Colour temperature 5000K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	6380 lm
Current sec.	250 mA
Colour temperature	5000K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 195,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031414050

Length 1137 mm

Colour temperature 4000K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	9520 lm
Current sec.	600 mA
Colour temperature	4000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 230,80

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031416050

Length 1137 mm

Colour temperature 6500K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	9520 lm
Current sec.	600 mA
Colour temperature	6500K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 230,80

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031417050

Length 1137 mm

Colour temperature 3500K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	9030 lm
Current sec.	600 mA
Colour temperature	3500K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 230,80

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

TRAIL LIGHT INSERT NB Black

Item no.

Length

Colour temperature

System performance

CRI

Item no. 610-1252011416060

Length 1696 mm

Colour temperature 6500K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	5620 lm
Current sec.	250 mA
Colour temperature	6500K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 208,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031414060

Length 1696 mm

Colour temperature 4000K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	12580 lm
Current sec.	600 mA
Colour temperature	4000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 273,20

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252011417060

Length 1696 mm

Colour temperature 3500K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	5330 lm
Current sec.	250 mA
Colour temperature	3500K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 208,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031416060

Length 1696 mm

Colour temperature 6500K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	12580 lm
Current sec.	600 mA
Colour temperature	6500K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 273,20

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252011419060

Length 1696 mm

Colour temperature 3000K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	5330 lm
Current sec.	250 mA
Colour temperature	3000K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 208,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031417060

Length 1696 mm

Colour temperature 3500K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	11930 lm
Current sec.	600 mA
Colour temperature	3500K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 273,20

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031419060

Length 1137 mm

Colour temperature 3000K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	7950 lm
Current sec.	600 mA
Colour temperature	3000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 230,80

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031415060

Length 1696 mm

Colour temperature 5000K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	12580 lm
Current sec.	600 mA
Colour temperature	5000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 258,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252011414060

Length 1696 mm

Colour temperature 4000K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	5620 lm
Current sec.	250 mA
Colour temperature	4000K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 208,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031415060

Length 1137 mm

Colour temperature 5000K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	8380 lm
Current sec.	600 mA
Colour temperature	5000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 217,70

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252011415060

Length 1696 mm

Colour temperature 5000K

System performance 37 W

CRI >80

Specifications

Light source	LED
System performance	37 W
Luminous flux	5620 lm
Current sec.	250 mA
Colour temperature	5000K
CRI	>80
UGR	<25
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 100 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	33
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 195,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1252031419060

Length 1696 mm

Colour temperature 3000K

System performance 92 W

CRI >80

Specifications

Light source	LED
System performance	92 W
Luminous flux	11930 lm
Current sec.	600 mA
Colour temperature	3000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1696 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 273,20

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031414060

Length 1137 mm

Colour temperature 4000K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	8380 lm
Current sec.	600 mA
Colour temperature	4000K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 230,80

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031416060

Length 1137 mm

Colour temperature 6500K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	8380 lm
Current sec.	600 mA
Colour temperature	6500K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 230,80

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 610-1251031417060

Length 1137 mm

Colour temperature 3500K

System performance 61 W

CRI >80

Specifications

Light source	LED
System performance	61 W
Luminous flux	7950 lm
Current sec.	600 mA
Colour temperature	3500K
CRI	>80
UGR	<28
Optics	high quality linear optics
Designer	INHOUSE
Converter	with converter
Dimmability	not dimmable
Light emission area	direct
Beam angle	30°
Voltage	220-240V 50/60Hz
Through wiring	7-polig
Length	1137 mm
Width	64 mm
Height	16 mm
IP protection class	IP20
IP protection class	protection cl. I
IK value	IK06
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L90 B10 70 000 h
Ambient temperature	from -20° to +50°
Energy efficiency class	C
Number of luminaires B16A	22
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 230,80

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

TRAIL LIGHT INSERT NB

From the same product family

TRAIL in use
