16 Items found Filter (0)
Colour Temperature
UGR
Luminous Flux
15520 lm30030 lm
1552030030
System Performance
98 W205 W
98205
Tune M Glas Master 3360 Grey
Item no. Colour Temperature Dimmability UGR Luminous Flux
Item no. 157-0224070114442 Colour Temperature 4000K Dimmability DALI 2, motion swarm UGR <25 Luminous Flux 30030 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 205 W
Luminous Flux 30030 lm
Current Sec. 4150 mA
Colour Temperature 4000K
CRI >80
UGR <25
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct

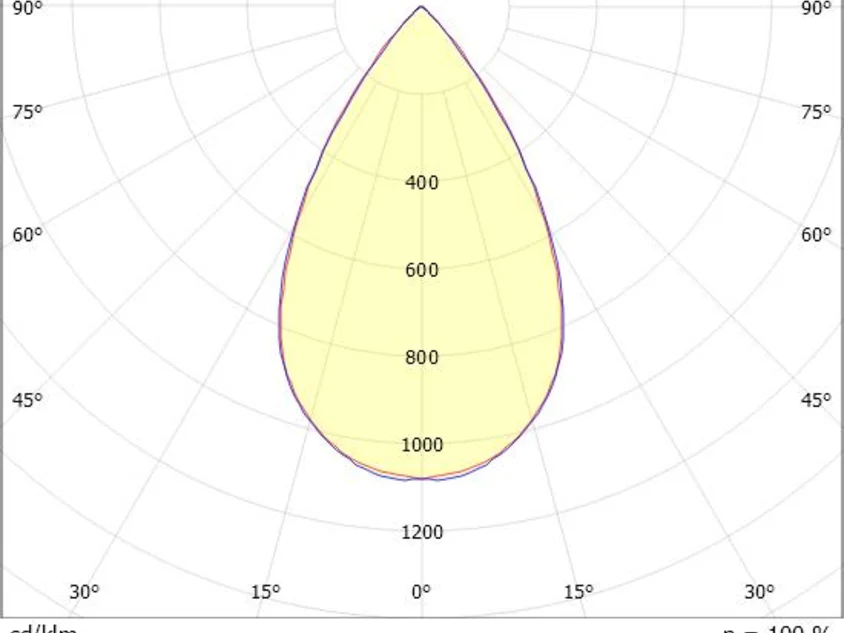

Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224070116442 Colour Temperature 6500K Dimmability DALI 2, motion swarm UGR <25 Luminous Flux 30030 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 205 W
Luminous Flux 30030 lm
Current Sec. 4150 mA
Colour Temperature 6500K
CRI >80
UGR <25
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct

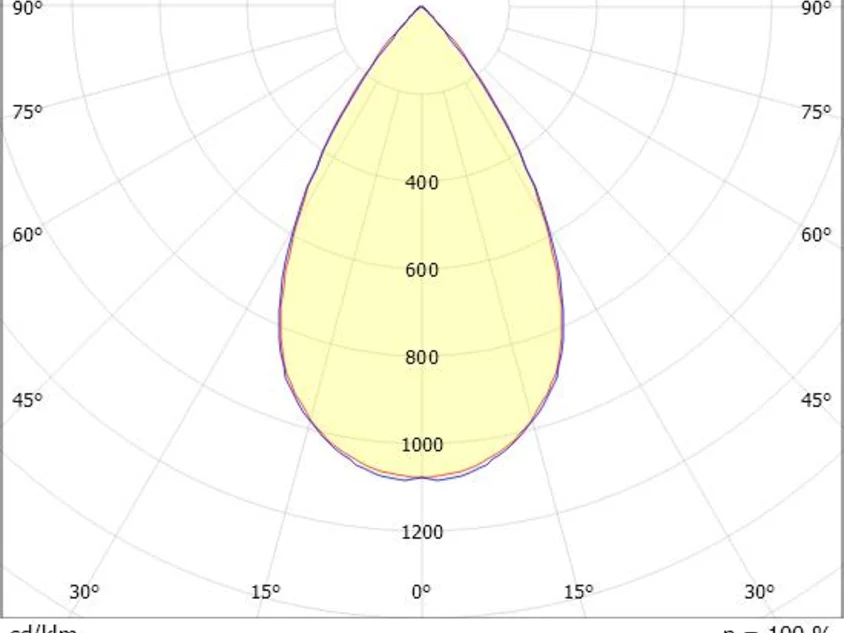

Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224080114442 Colour Temperature 4000K Dimmability DALI 2, motion swarm UGR <25 Luminous Flux 28150 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 190 W
Luminous Flux 28150 lm
Current Sec. 3800 mA
Colour Temperature 4000K
CRI >80
UGR <25
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct

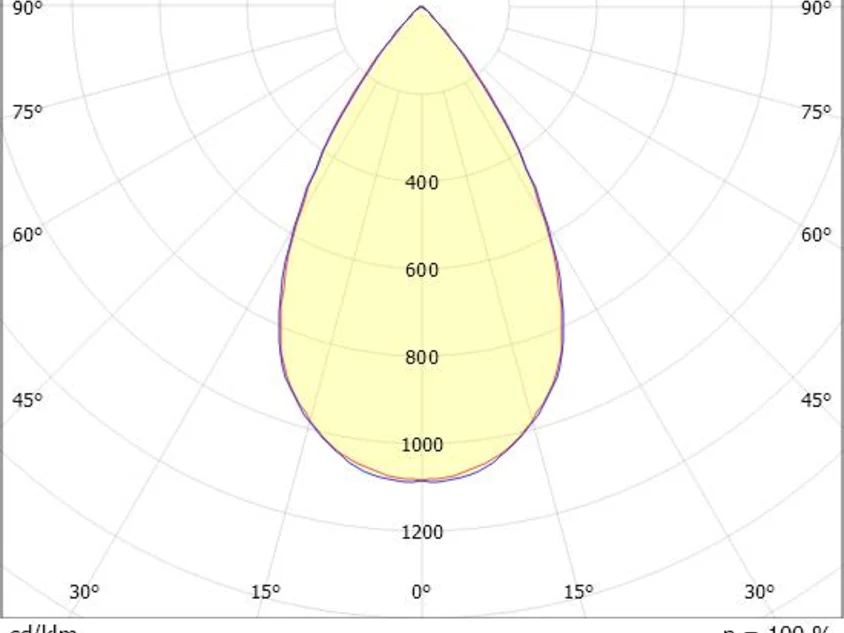

Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224080116442 Colour Temperature 6500K Dimmability DALI 2, motion swarm UGR <25 Luminous Flux 28150 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 190 W
Luminous Flux 28150 lm
Current Sec. 3800 mA
Colour Temperature 6500K
CRI >80
UGR <25
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct

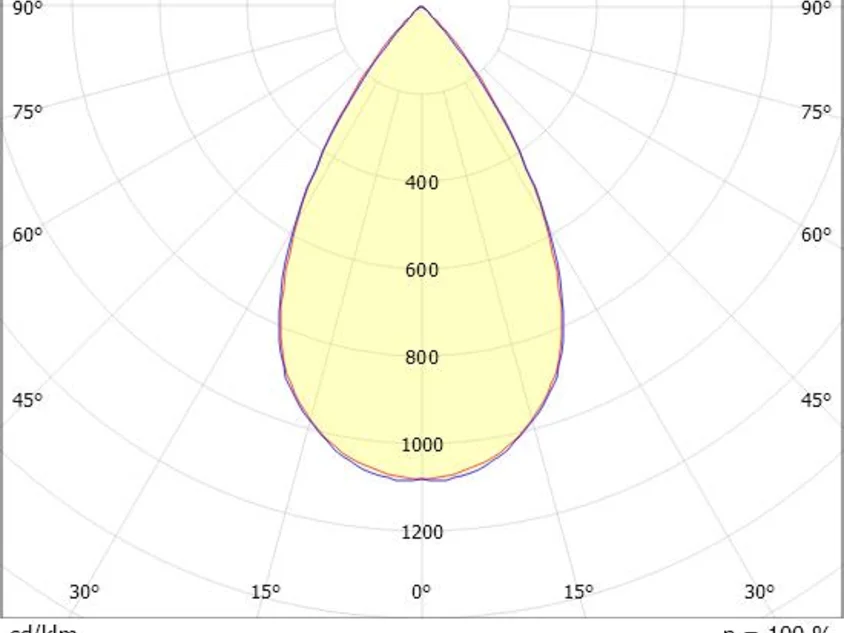

Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224090114442 Colour Temperature 4000K Dimmability DALI 2, motion swarm UGR <22 Luminous Flux 26020 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 175 W
Luminous Flux 26020 lm
Current Sec. 3500 mA
Colour Temperature 4000K
CRI >80
UGR <22
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct

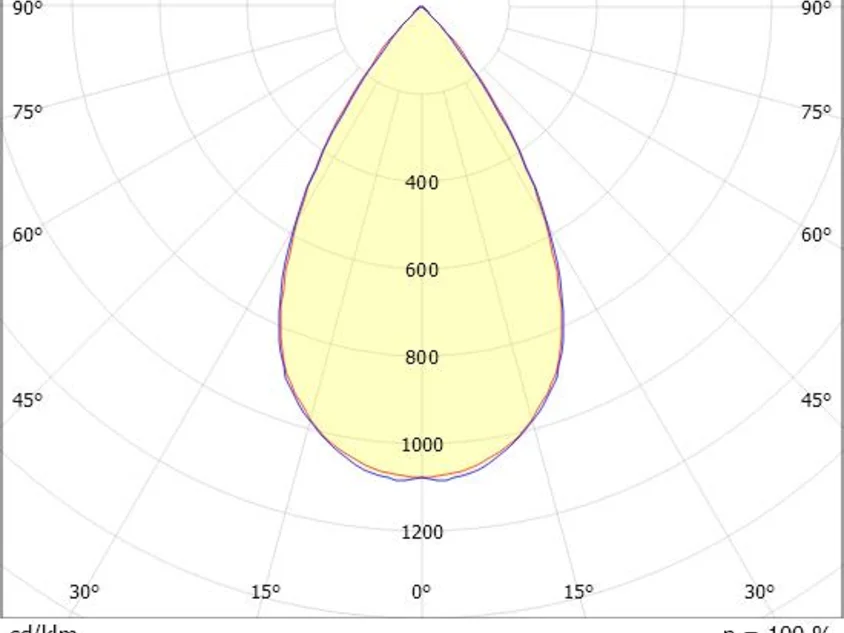

Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224090116442 Colour Temperature 6500K Dimmability DALI 2, motion swarm UGR <22 Luminous Flux 26020 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 175 W
Luminous Flux 26020 lm
Current Sec. 3500 mA
Colour Temperature 6500K
CRI >80
UGR <22
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct

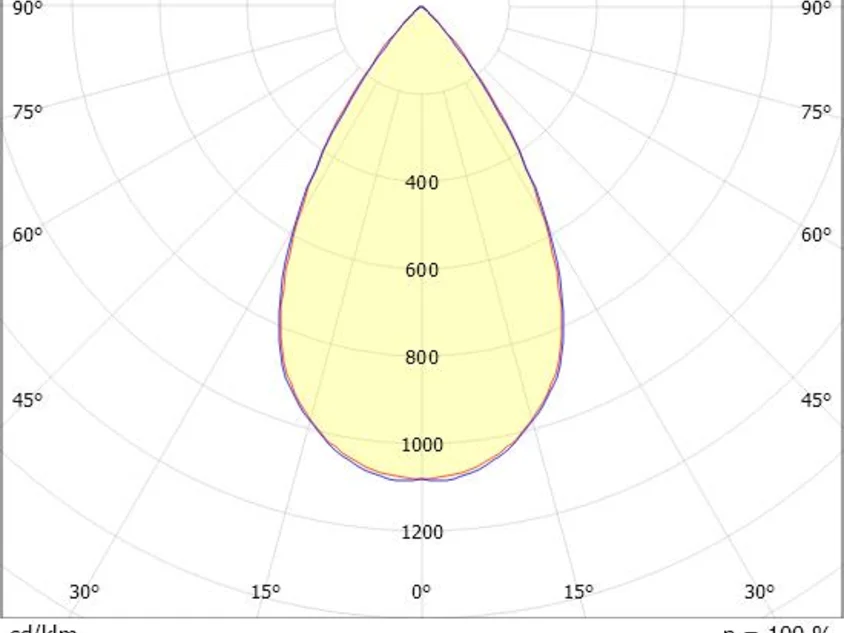

Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224100114442 Colour Temperature 4000K Dimmability DALI 2, motion swarm UGR <22 Luminous Flux 24750 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 165 W
Luminous Flux 24750 lm
Current Sec. 3300 mA
Colour Temperature 4000K
CRI >80
UGR <22
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct

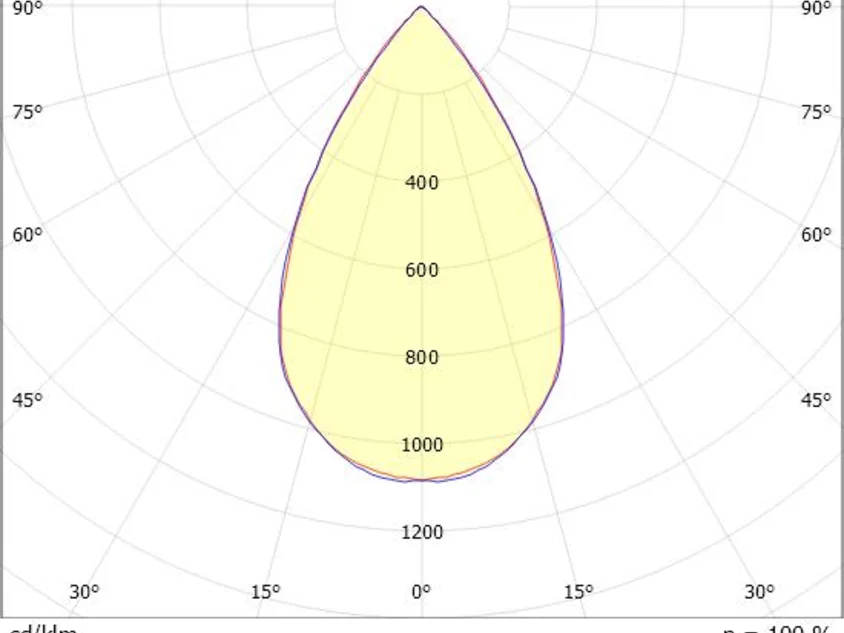

Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224100116442 Colour Temperature 6500K Dimmability DALI 2, motion swarm UGR <22 Luminous Flux 24750 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 165 W
Luminous Flux 24750 lm
Current Sec. 3300 mA
Colour Temperature 6500K
CRI >80
UGR <22
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct
Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224110114442 Colour Temperature 4000K Dimmability DALI 2, motion swarm UGR <22 Luminous Flux 22620 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 150 W
Luminous Flux 22620 lm
Current Sec. 3000 mA
Colour Temperature 4000K
CRI >80
UGR <22
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct
Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224110116442 Colour Temperature 6500K Dimmability DALI 2, motion swarm UGR <22 Luminous Flux 22620 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 150 W
Luminous Flux 22620 lm
Current Sec. 3000 mA
Colour Temperature 6500K
CRI >80
UGR <22
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct
Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224120114442 Colour Temperature 4000K Dimmability DALI 2, motion swarm UGR <22 Luminous Flux 20250 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 132 W
Luminous Flux 20250 lm
Current Sec. 2700 mA
Colour Temperature 4000K
CRI >80
UGR <22
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct
Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224120116442 Colour Temperature 6500K Dimmability DALI 2, motion swarm UGR <22 Luminous Flux 20250 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 132 W
Luminous Flux 20250 lm
Current Sec. 2700 mA
Colour Temperature 6500K
CRI >80
UGR <22
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct
Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224130114442 Colour Temperature 4000K Dimmability DALI 2, motion swarm UGR <22 Luminous Flux 17660 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 113 W
Luminous Flux 17660 lm
Current Sec. 2300 mA
Colour Temperature 4000K
CRI >80
UGR <22
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct
Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224130116442 Colour Temperature 6500K Dimmability DALI 2, motion swarm UGR <22 Luminous Flux 17660 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 113 W
Luminous Flux 17660 lm
Current Sec. 2300 mA
Colour Temperature 6500K
CRI >80
UGR <22
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct
Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224140114442 Colour Temperature 4000K Dimmability DALI 2, motion swarm UGR <22 Luminous Flux 15520 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 98 W
Luminous Flux 15520 lm
Current Sec. 2000 mA
Colour Temperature 4000K
CRI >80
UGR <22
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct
Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality
Item no. 157-0224140116442 Colour Temperature 6500K Dimmability DALI 2, motion swarm UGR <22 Luminous Flux 15520 lm
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Tune M Glas Master 3360
Specifications
Light source LED
System Performance 98 W
Luminous Flux 15520 lm
Current Sec. 2000 mA
Colour Temperature 6500K
CRI >80
UGR <22
Optics high quality plastic lens
Converter with converter
Dimmability DALI 2, motion swarm
Light Emission Area direct
Beam Angle 75°
Voltage 220-240V 50/60Hz
Motion Detector with motion detector, day light control and swarm function
Length 477,8 mm
Height 186 mm
Diameter 360 mm
IP Protection Class IP65
IP Protection Class protection cl. I
Ik Value IK08
Material aluminium
Colour of Body grey
RAL 9006
Lifetime L80 B10 70 000 h
Ambient Temperature from -30° to +45°
Energy Efficiency Class D
Number of Luminaires B16A 7
Downloads
Availability & Price
RRP excl. VAT
€ 728,70
Order accessories Request consultation
Payment by invoice
Reliable delivery
Premium service
Top quality

TUNE in use
