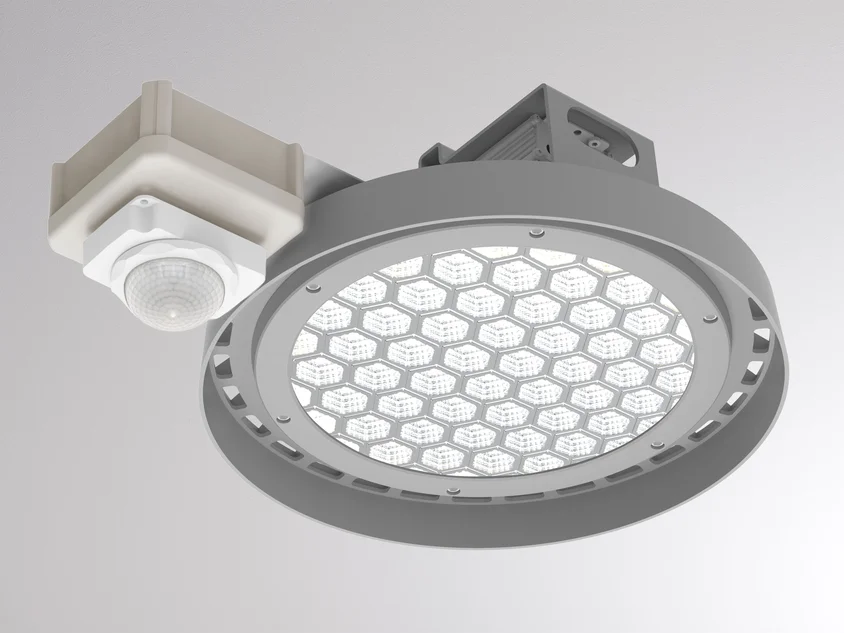

TUNE M PC MASTER 3360

Colours

Grey

Order now Request consultation

From the same product family

TUNE M PC

TUNE M GLAS EXTENSION

TUNE M PC EXTENSION

TUNE M GLAS MASTER 345

TUNE M PC MASTER 345

16 Items found Filter (0)

TUNE M PC MASTER 3360 Grey

Item no.

Colour temperature

UGR

Luminous flux

System performance

Item no. 157-0214080114442

Colour temperature 4000K

UGR <25

Luminous flux 27250 lm

System performance 190 W

Specifications

Light source	LED
System performance	190 W
Luminous flux	27250 lm
Current sec.	3800 mA
Colour temperature	4000K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct

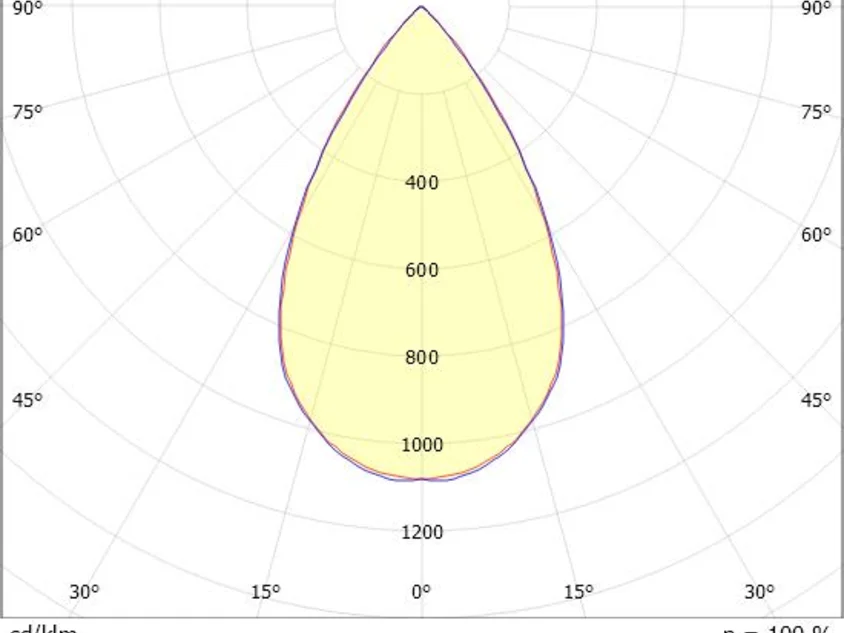

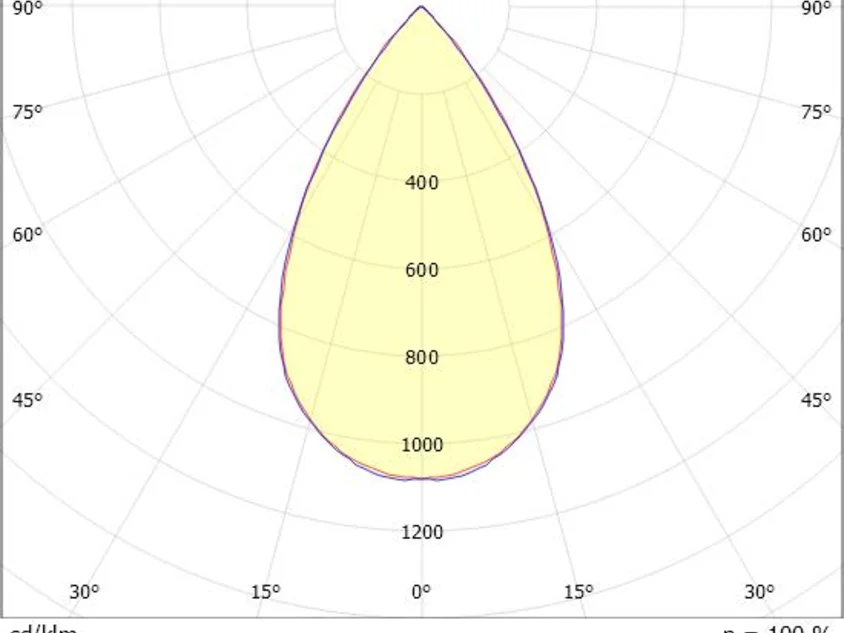

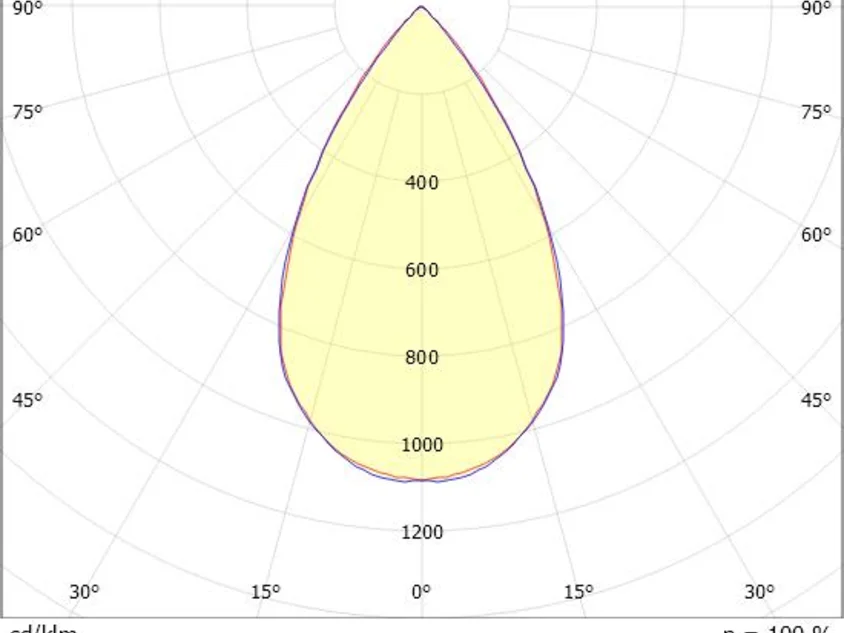

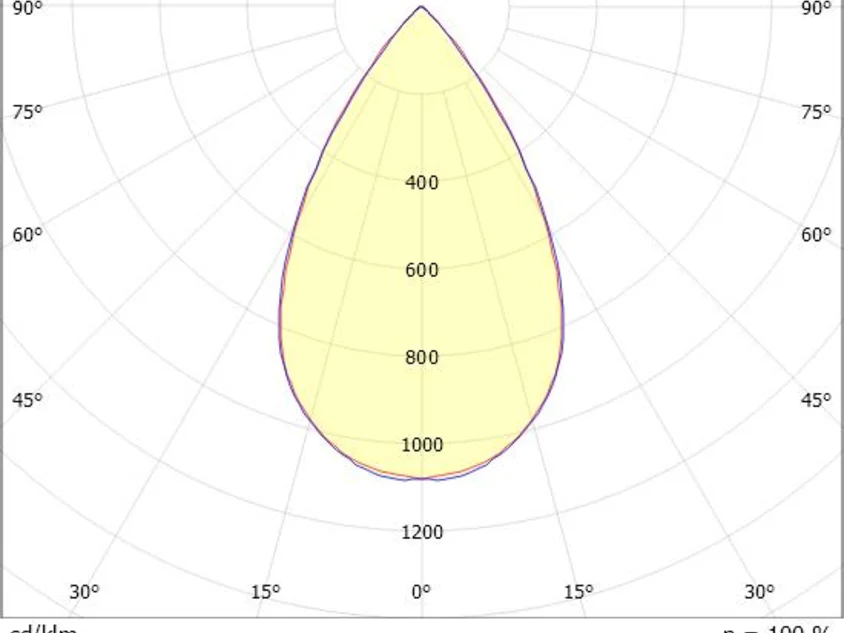

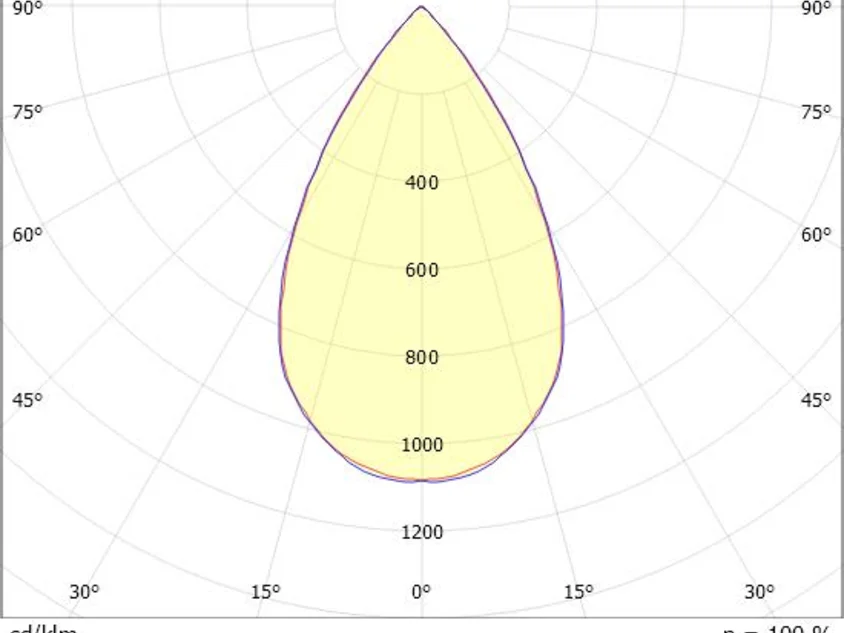

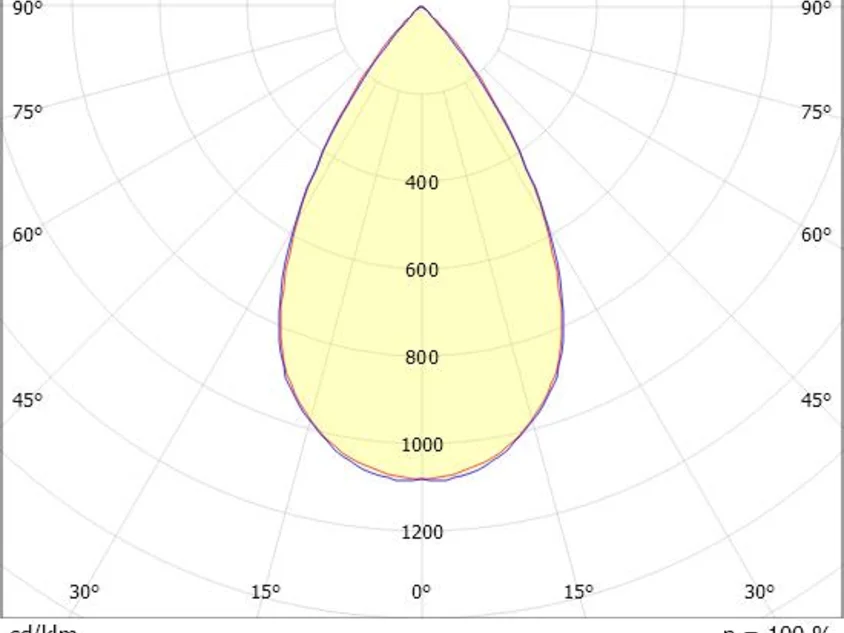

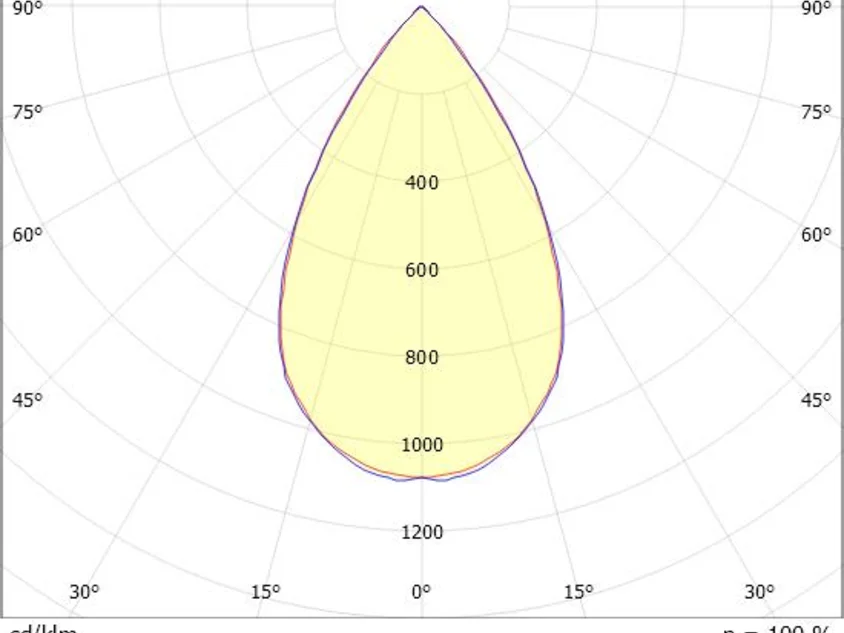

Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function

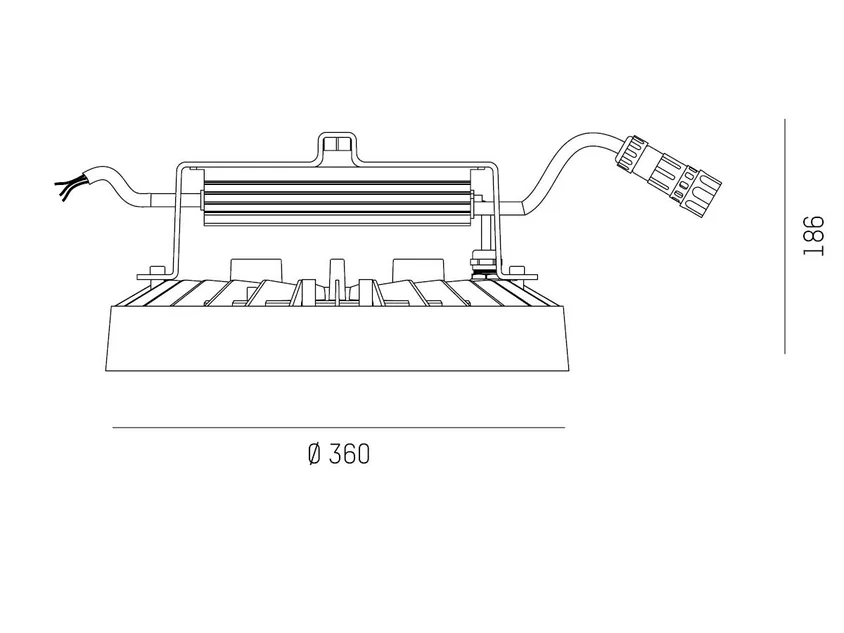

Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214090114442

Colour temperature 4000K

UGR <22

Luminous flux 25190 lm

System performance 175 W

Specifications

Light source	LED
System performance	175 W
Luminous flux	25190 lm
Current sec.	3500 mA
Colour temperature	4000K
CRI	>80
UGR	<22
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214100114442

Colour temperature 4000K

UGR <22

Luminous flux 23960 lm

System performance 165 W

Specifications

Light source	LED
System performance	165 W
Luminous flux	23960 lm
Current sec.	3300 mA
Colour temperature	4000K
CRI	>80
UGR	<22
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214110114442

Colour temperature 4000K

UGR <22

Luminous flux 21900 lm

System performance 150 W

Specifications

Light source	LED
System performance	150 W
Luminous flux	21900 lm
Current sec.	3000 mA
Colour temperature	4000K
CRI	>80
UGR	<22
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214120114442

Colour temperature 4000K

UGR <22

Luminous flux 19600 lm

System performance 132 W

Specifications

Light source	LED
System performance	132 W
Luminous flux	19600 lm
Current sec.	2700 mA
Colour temperature	4000K
CRI	>80
UGR	<22
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214130114442

Colour temperature 4000K

UGR <22

Luminous flux 17100 lm

System performance 113 W

Specifications

Light source	LED
System performance	113 W
Luminous flux	17100 lm
Current sec.	2300 mA
Colour temperature	4000K
CRI	>80
UGR	<22
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214140114442

Colour temperature 4000K

UGR <22

Luminous flux 15020 lm

System performance 98 W

Specifications

Light source	LED
System performance	98 W
Luminous flux	15020 lm
Current sec.	2000 mA
Colour temperature	4000K
CRI	>80
UGR	<22
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214080116442

Colour temperature 6500K

UGR <25

Luminous flux 27250 lm

System performance 190 W

Specifications

Light source	LED
System performance	190 W
Luminous flux	27250 lm
Current sec.	3800 mA
Colour temperature	6500K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W
Subsidizable	>= 100 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214090116442

Colour temperature 6500K

UGR <22

Luminous flux 25190 lm

System performance 175 W

Specifications

Light source	LED
System performance	175 W
Luminous flux	25190 lm
Current sec.	3500 mA
Colour temperature	6500K
CRI	>80
UGR	<22
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214100116442

Colour temperature 6500K

UGR <22

Luminous flux 23960 lm

System performance 165 W

Specifications

Light source	LED
System performance	165 W
Luminous flux	23960 lm
Current sec.	3300 mA
Colour temperature	6500K
CRI	>80
UGR	<22
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 140 Lm/W
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214110116442

Colour temperature 6500K

UGR <22

Luminous flux 21900 lm

System performance 150 W

Specifications

Light source	LED
System performance	150 W
Luminous flux	21900 lm
Current sec.	3000 mA
Colour temperature	6500K
CRI	>80
UGR	<22
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214120116442

Colour temperature 6500K

UGR <22

Luminous flux 19600 lm

System performance 132 W

Specifications

Light source	LED
System performance	132 W
Luminous flux	19600 lm
Current sec.	2700 mA
Colour temperature	6500K
CRI	>80
UGR	<22
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214130116442

Colour temperature 6500K

UGR <22

Luminous flux 17100 lm

System performance 113 W

Specifications

Light source	LED
System performance	113 W
Luminous flux	17100 lm
Current sec.	2300 mA
Colour temperature	6500K
CRI	>80
UGR	<22
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214140116442

Colour temperature 6500K

UGR <22

Luminous flux 15020 lm

System performance 98 W

Specifications

Light source	LED
System performance	98 W
Luminous flux	15020 lm
Current sec.	2000 mA
Colour temperature	6500K
CRI	>80
UGR	<22
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214070116442

Colour temperature 6500K

UGR <25

Luminous flux 29070 lm

System performance 205 W

Specifications

Light source	LED
System performance	205 W
Luminous flux	29070 lm
Current sec.	4150 mA
Colour temperature	6500K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0214070114442

Colour temperature 4000K

UGR <25

Luminous flux 29070 lm

System performance 205 W

Specifications

Light source	LED
System performance	205 W
Luminous flux	29070 lm
Current sec.	4150 mA
Colour temperature	4000K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	477,8 mm
Height	186 mm
Diameter	360 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 741,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality
