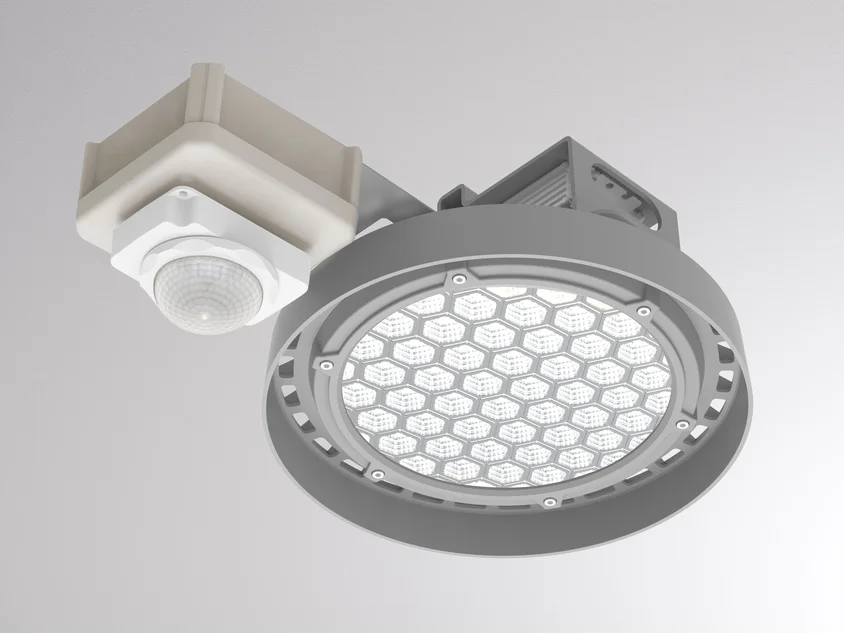

TUNE S PC MASTER 345

Colours

Grey

Order now Request consultation

From the same product family

TUNE M PC

14 Items found Filter (0)

TUNE S PC MASTER 345 Grey

Item no.

Colour temperature

Luminous flux

System performance

Dimmability

Item no. 157-0115000119442

Colour temperature 3000K

Luminous flux 19480 lm

System performance 145 W

Dimmability DALI 2, motion swarm

Specifications

Light source	LED
System performance	145 W
Luminous flux	19480 lm
Current sec.	3300 mA
Colour temperature	3000K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct

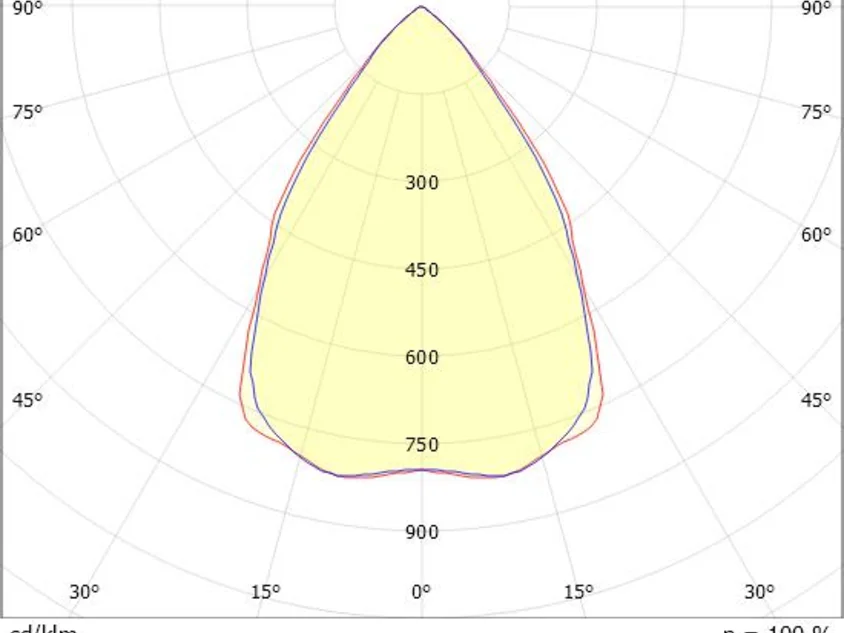

Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function

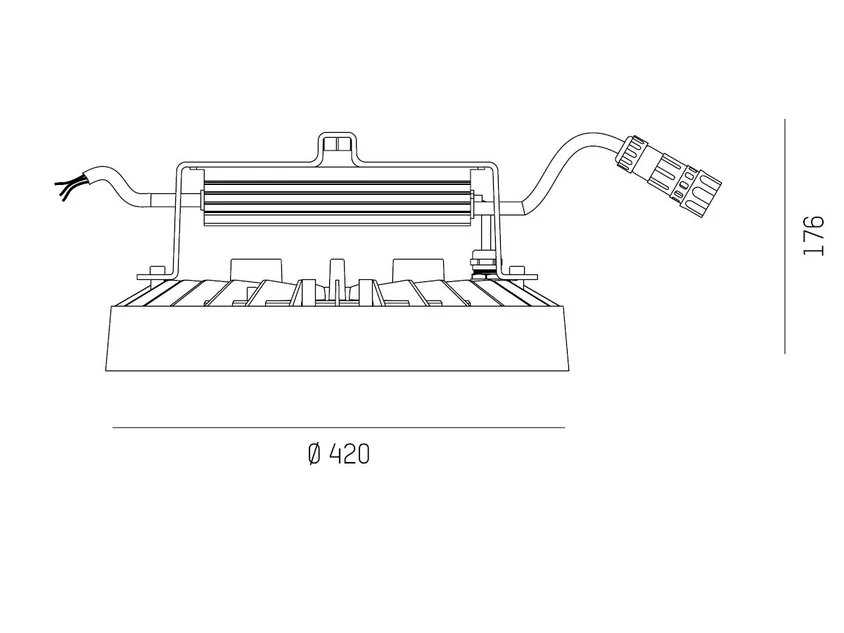

Length	420 mm
Height	176 mm
Diameter	280 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 680,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0115040114442

Colour temperature 4000K

Luminous flux 14260 lm

System performance 98 W

Dimmability DALI 2, motion swarm

Specifications

Light source	LED
System performance	98 W
Luminous flux	14260 lm
Current sec.	2200 mA
Colour temperature	4000K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct

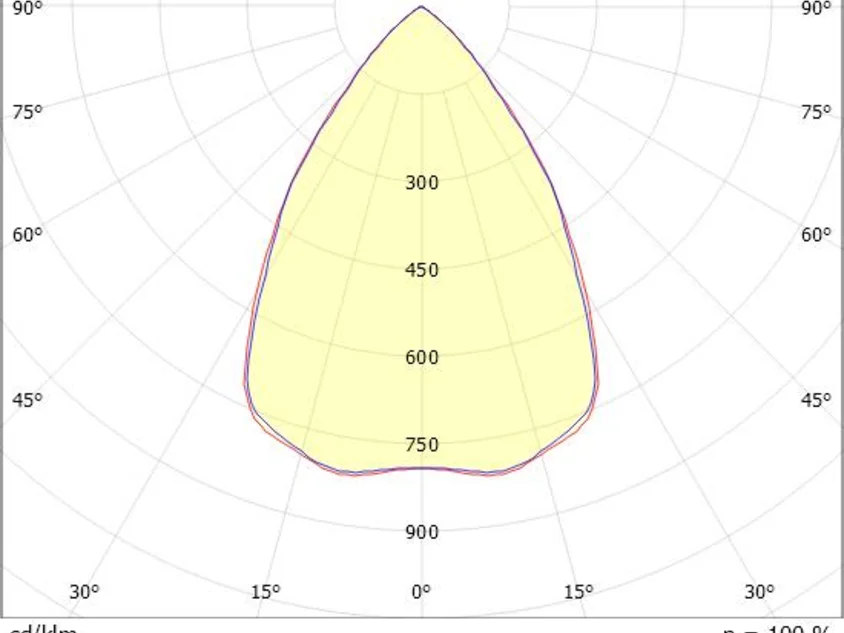

Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	420,5 mm
Height	176 mm
Diameter	280 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 680,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0115020114442

Colour temperature 4000K

Luminous flux 18480 lm

System performance 133 W

Dimmability DALI 2, motion swarm

Specifications

Light source	LED
System performance	133 W
Luminous flux	18480 lm
Current sec.	3000 mA
Colour temperature	4000K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct

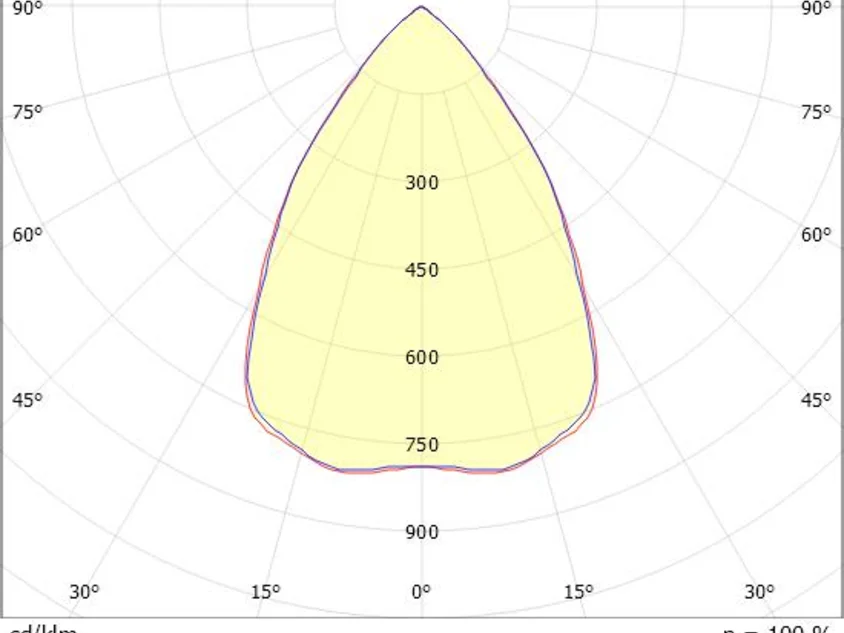

Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	420,5 mm
Height	176 mm
Diameter	280 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 680,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0115010119442

Colour temperature 3000K

Luminous flux 19860 lm

System performance 150 W

Dimmability DALI 2, motion swarm

Specifications

Light source	LED
System performance	150 W
Luminous flux	19860 lm
Current sec.	3400 mA
Colour temperature	3000K
CRI	>80
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct

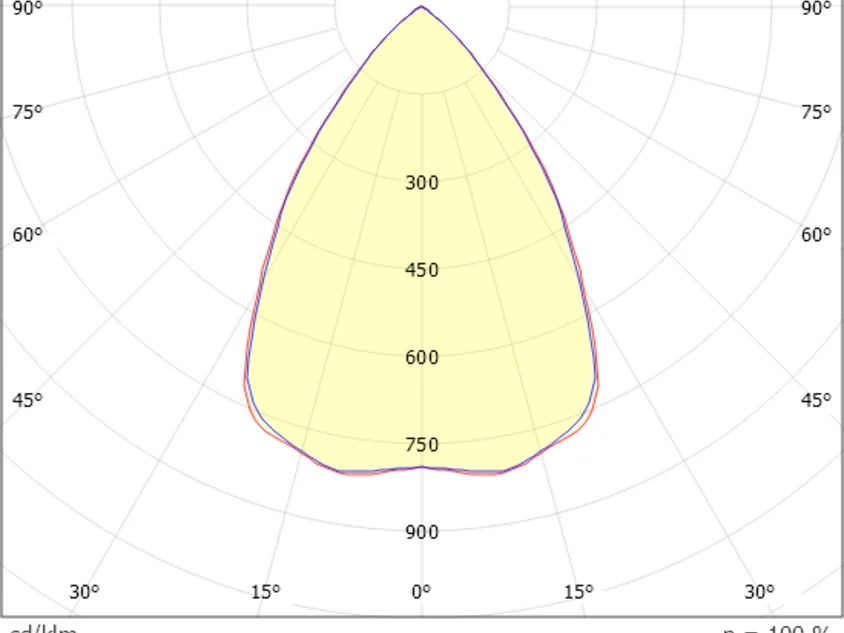

Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	420 mm
Height	176 mm
Diameter	280 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 663,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0115030119442

Colour temperature 3000K

Luminous flux 15980 lm

System performance 116 W

Dimmability DALI 2, motion swarm

Specifications

Light source	LED
System performance	116 W
Luminous flux	15980 lm
Current sec.	2600 mA
Colour temperature	3000K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct

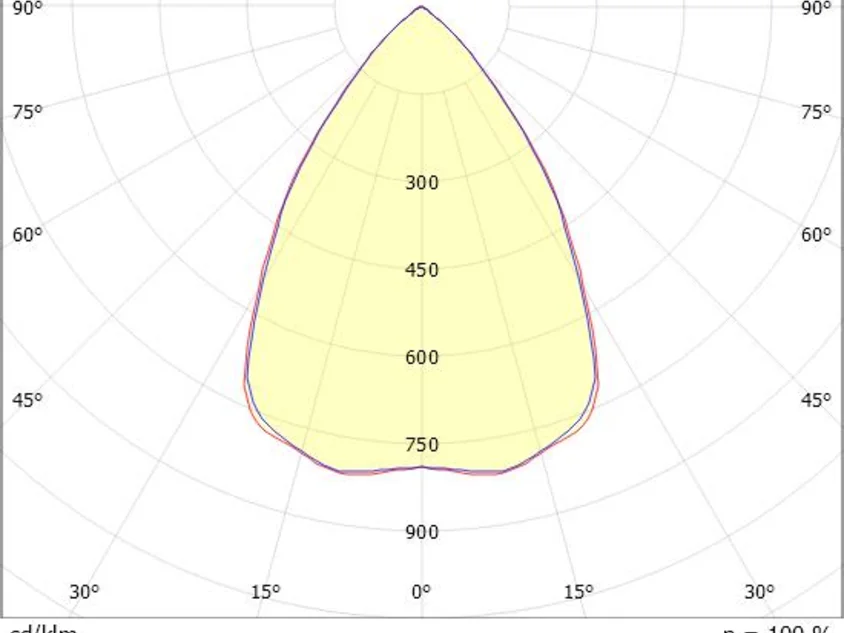

Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	420 mm
Height	176 mm
Diameter	280 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 680,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0115050119442

Colour temperature 3000K

Luminous flux 12540 lm

System performance 85 W

Dimmability DALI 2, motion swarm

Specifications

Light source	LED
System performance	85 W
Luminous flux	12540 lm
Current sec.	1900 mA
Colour temperature	3000K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct

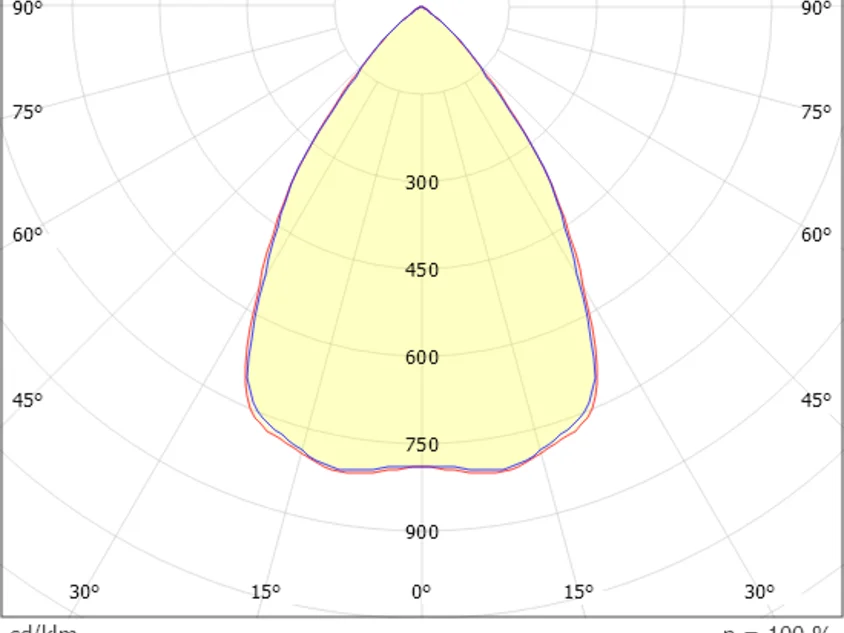

Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	420 mm
Height	176 mm
Diameter	280 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 680,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0115030114442

Colour temperature 4000K

Luminous flux 16400 lm

System performance 116 W

Dimmability DALI 2, motion swarm

Specifications

Light source	LED
System performance	116 W
Luminous flux	16400 lm
Current sec.	2600 mA
Colour temperature	4000K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct

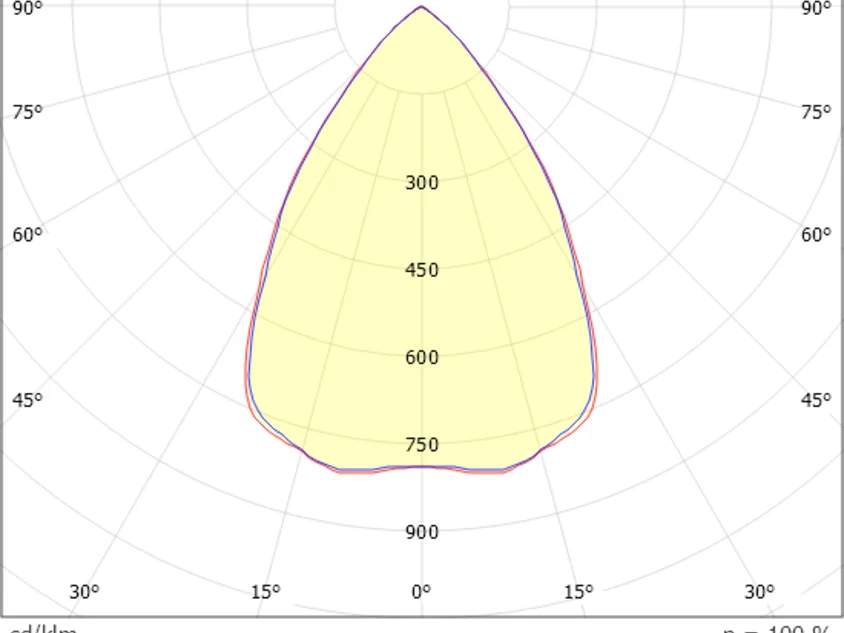

Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	420,5 mm
Height	176 mm
Diameter	280 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 680,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0115010114442

Colour temperature 4000K

Luminous flux 20380 lm

System performance 150 W

Dimmability DALI 2, motion swarm

Specifications

Light source	LED
System performance	150 W
Luminous flux	20380 lm
Current sec.	3400 mA
Colour temperature	4000K
CRI	>80
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	420,5 mm
Height	176 mm
Diameter	280 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 663,90

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0115050114442

Colour temperature 4000K

Luminous flux 12860 lm

System performance 85 W

Dimmability DALI 2, motion swarm

Specifications

Light source	LED
System performance	85 W
Luminous flux	12860 lm
Current sec.	1900 mA
Colour temperature	4000K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	420,5 mm
Height	176 mm
Diameter	280 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 680,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0115000114442

Colour temperature 4000K

Luminous flux 19980 lm

System performance 145 W

Dimmability DALI 2, motion swarm

Specifications

Light source	LED
System performance	145 W
Luminous flux	19980 lm
Current sec.	3300 mA
Colour temperature	4000K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	420,5 mm
Height	176 mm
Diameter	280 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 680,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0115060119442

Colour temperature 3000K

Luminous flux 10700 lm

System performance 71 W

Dimmability DALI 2, motion swarm

Specifications

Light source	LED
System performance	71 W
Luminous flux	10700 lm
Current sec.	1600 mA
Colour temperature	3000K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	420 mm
Height	176 mm
Diameter	280 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 140 Lm/W
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 680,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0115060114442

Colour temperature 4000K

Luminous flux 10980 lm

System performance 71 W

Dimmability DALI 2, motion swarm

Specifications

Light source	LED
System performance	71 W
Luminous flux	10980 lm
Current sec.	1600 mA
Colour temperature	4000K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	420,5 mm
Height	176 mm
Diameter	280 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 680,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0115040119442

Colour temperature 3000K

Luminous flux 13900 lm

System performance 98 W

Dimmability DALI 2, motion swarm

Specifications

Light source	LED
System performance	98 W
Luminous flux	13900 lm
Current sec.	2200 mA
Colour temperature	3000K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	420 mm
Height	176 mm
Diameter	280 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W
Subsidizable	>= 140 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 680,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 157-0115020119442

Colour temperature 3000K

Luminous flux 18010 lm

System performance 133 W

Dimmability DALI 2, motion swarm

Specifications

Light source	LED
System performance	133 W
Luminous flux	18010 lm
Current sec.	3000 mA
Colour temperature	3000K
CRI	>80
UGR	<25
Optics	high quality plastic lens
Converter	with converter
Dimmability	DALI 2, motion swarm
Light emission area	direct
Beam angle	75°
Voltage	220-240V 50/60Hz
Motion detector	with motion detector, day light control and swarm function
Length	420 mm
Height	176 mm
Diameter	280 mm
IP protection class	IP65
IP protection class	protection cl. I
IK value	IK10
Material	aluminium
Colour of body	grey
RAL	9006
Lifetime	L80 B10 70 000 h
Ambient temperature	from -30° to +45°
Energy efficiency class	D
Number of luminaires B16A	7
IFS	True
Subsidizable	>= 100 Lm/W
Subsidizable	>= 120 Lm/W

Downloads

Availability & Price

RRP excl. VAT
€ 680,40

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality
