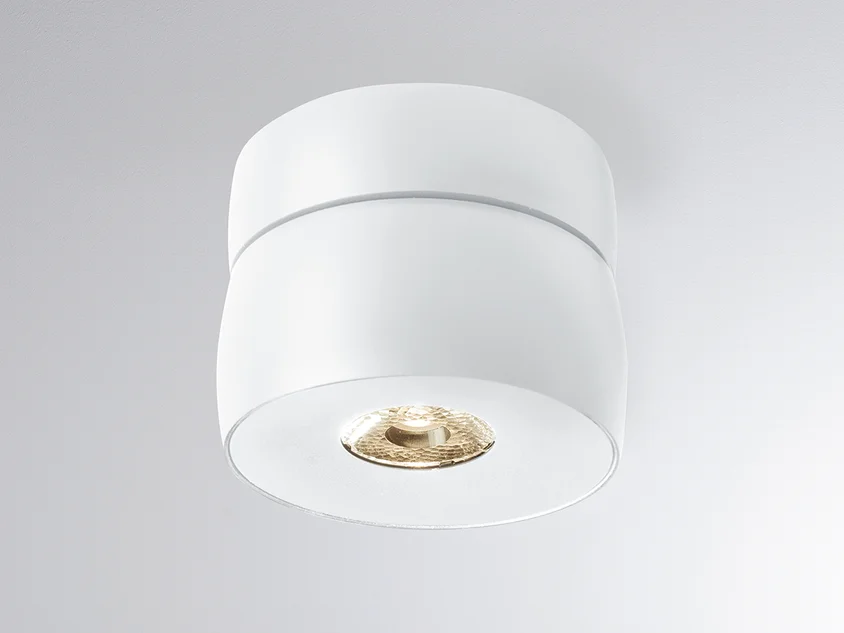

VIBO SD DIMM

Colours

White
Black

Order now Request consultation

Credit: nonstandard.at

From the same product family

VIBO SD

VIBO VOLARE

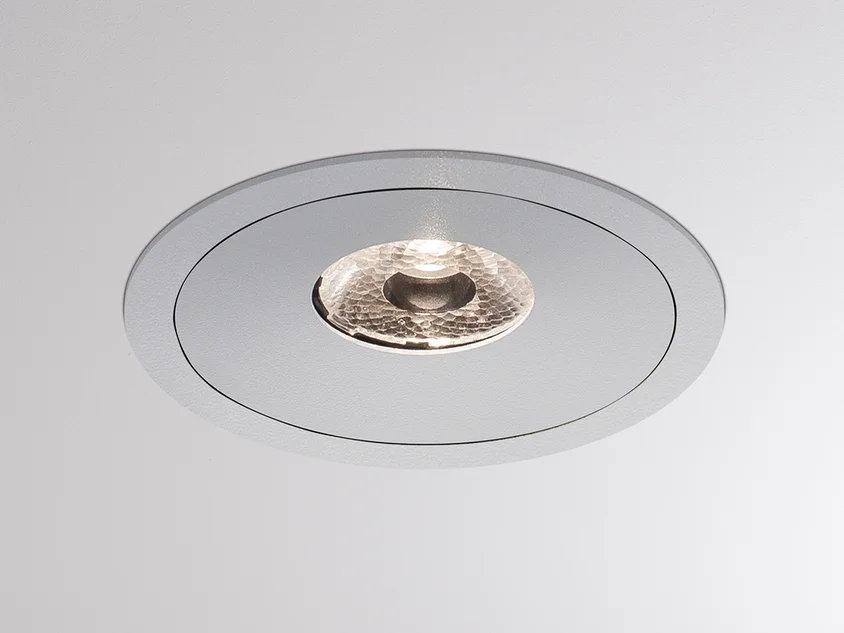

VIBO R

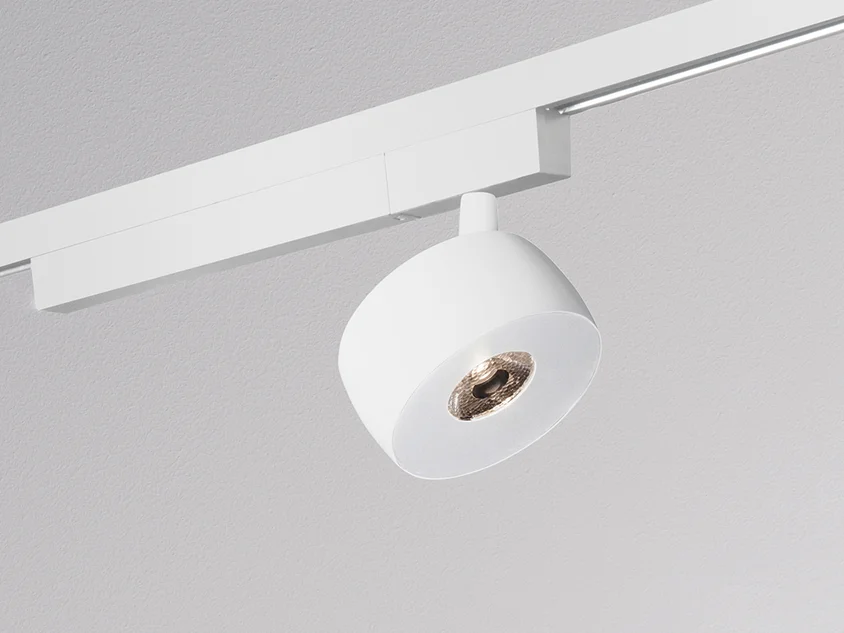

VIBO VOLARE DIM

18 Items found Filter (0)

VIBO SD DIMM White

Item no.

Colour of body

Colour temperature

Beam angle

Luminous flux

Item no. 668-00201052455d

Colour of body white

Colour temperature 4000K

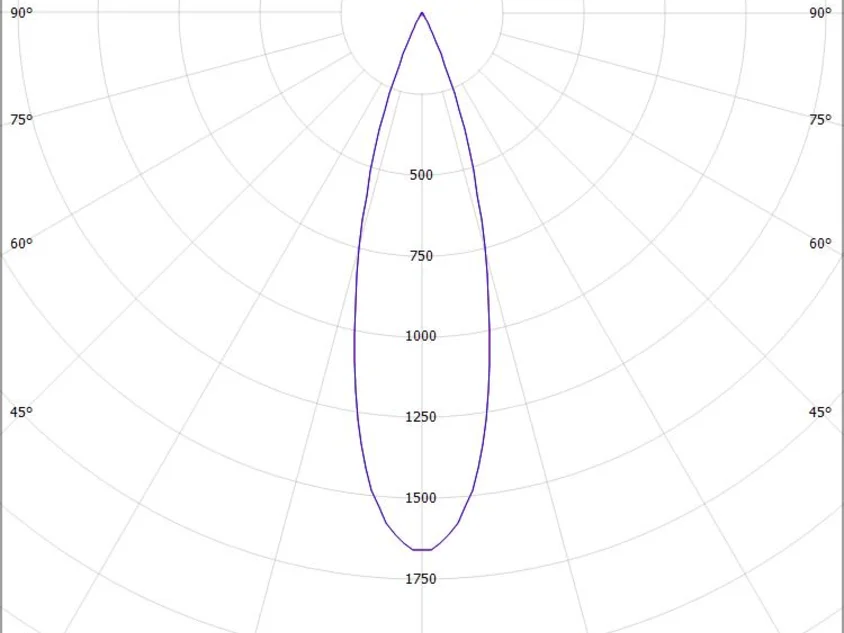

Beam angle 23°

Luminous flux 470 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	470 lm
Current sec.	500 mA
Colour temperature	4000K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	23°
Voltage	220-240V 50/60Hz

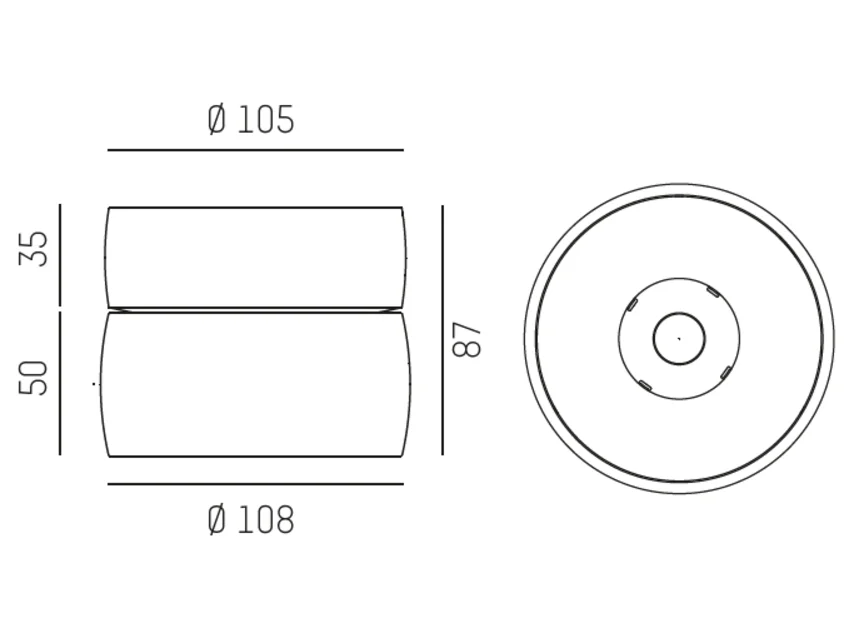

Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201022455d

Colour of body white

Colour temperature 4000K

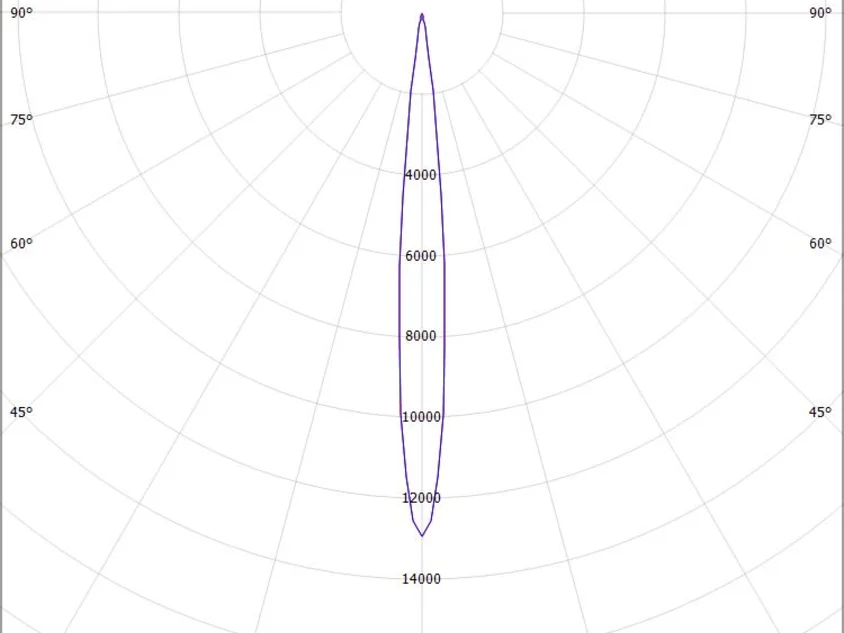

Beam angle 10°

Luminous flux 470 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	470 lm
Current sec.	500 mA
Colour temperature	4000K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	10°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201022355d

Colour of body white

Colour temperature 2700K

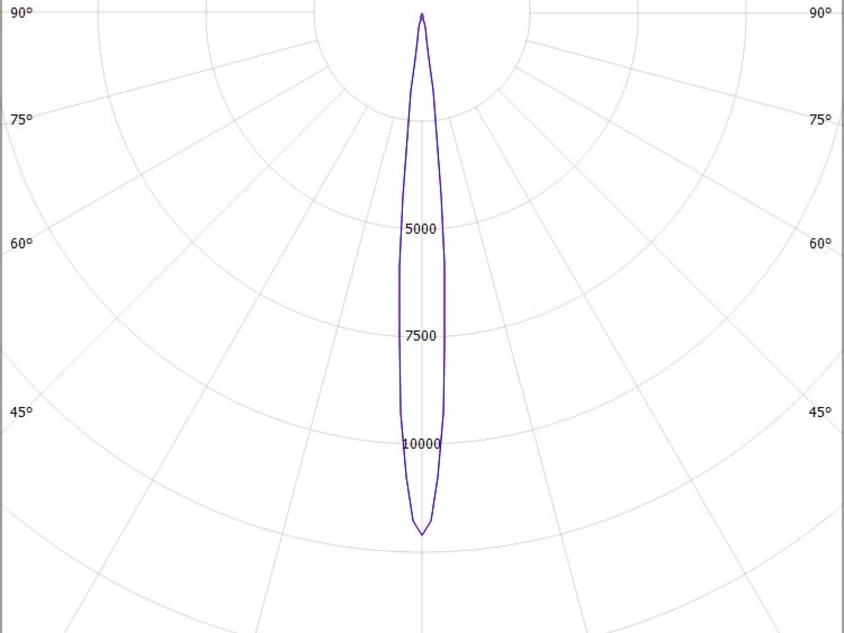

Beam angle 10°

Luminous flux 410 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	410 lm
Current sec.	500 mA
Colour temperature	2700K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	10°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201082455d

Colour of body white

Colour temperature 4000K

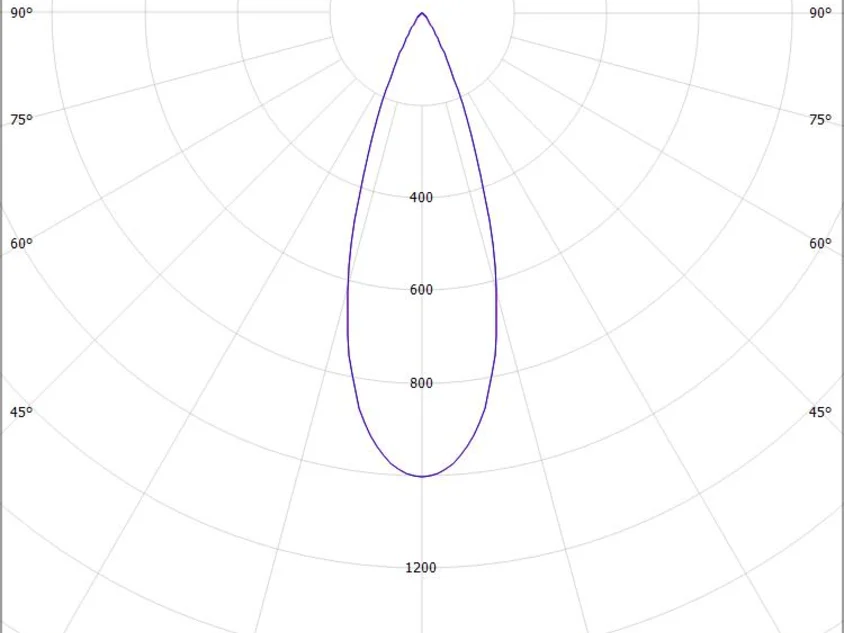

Beam angle 35°

Luminous flux 390 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	390 lm
Current sec.	500 mA
Colour temperature	4000K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	35°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201082955d

Colour of body white

Colour temperature 3000K

Beam angle 35°

Luminous flux 360 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	360 lm
Current sec.	500 mA
Colour temperature	3000K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	35°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

Fast Delivery

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201052355d

Colour of body white

Colour temperature 2700K

Beam angle 23°

Luminous flux 410 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	410 lm
Current sec.	500 mA
Colour temperature	2700K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	23°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201052955d

Colour of body white

Colour temperature 3000K

Beam angle 23°

Luminous flux 440 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	440 lm
Current sec.	500 mA
Colour temperature	3000K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	23°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201082355d

Colour of body white

Colour temperature 2700K

Beam angle 35°

Luminous flux 340 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	340 lm
Current sec.	500 mA
Colour temperature	2700K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	35°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201022955d

Colour of body white

Colour temperature 3000K

Beam angle 10°

Luminous flux 440 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	440 lm
Current sec.	500 mA
Colour temperature	3000K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	10°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	white
RAL	9016
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

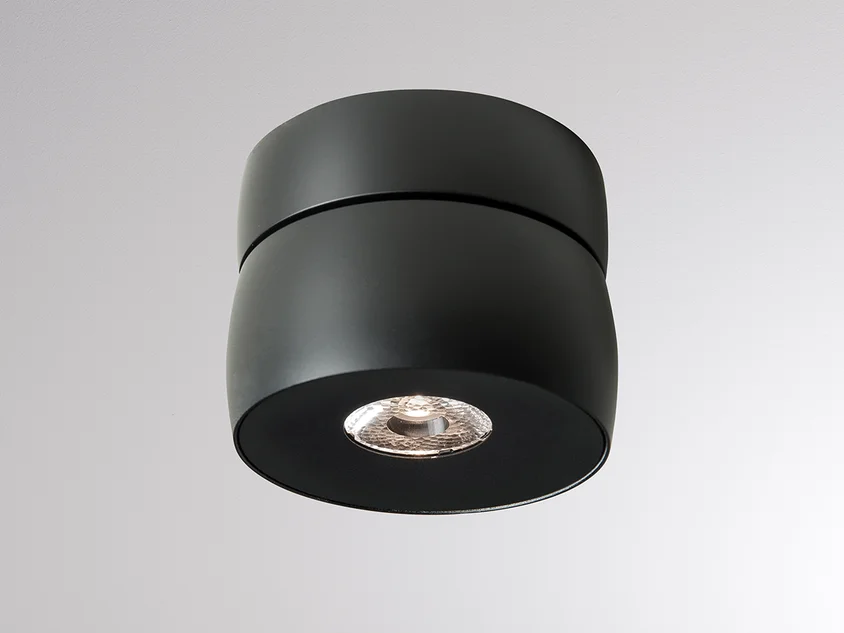

VIBO SD DIMM Black

Item no.

Colour of body

Colour temperature

Beam angle

Luminous flux

Item no. 668-00201052466d

Colour of body black

Colour temperature 4000K

Beam angle 23°

Luminous flux 470 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	470 lm
Current sec.	500 mA
Colour temperature	4000K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	23°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201082466d

Colour of body black

Colour temperature 4000K

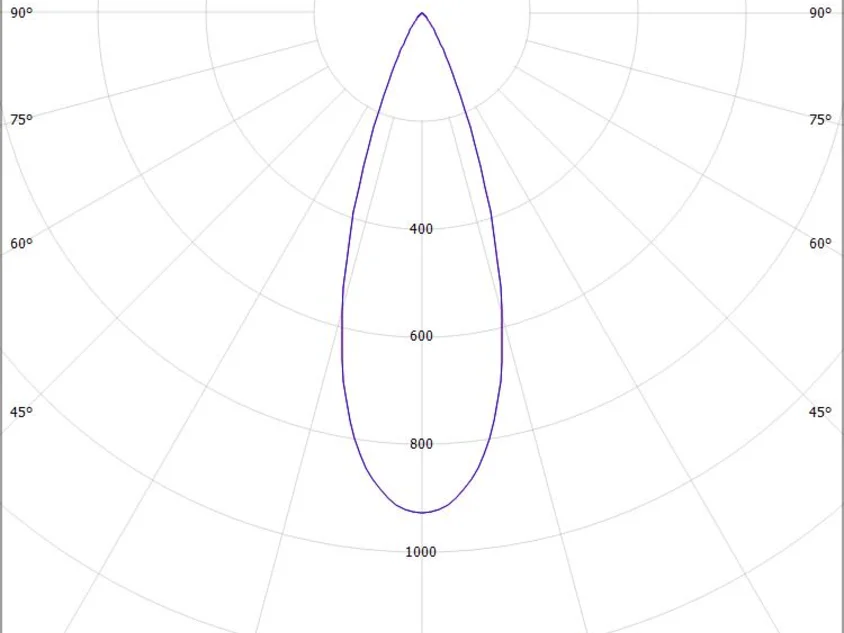

Beam angle 35°

Luminous flux 390 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	390 lm
Current sec.	500 mA
Colour temperature	4000K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	35°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201052966d

Colour of body black

Colour temperature 3000K

Beam angle 23°

Luminous flux 440 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	440 lm
Current sec.	500 mA
Colour temperature	3000K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	23°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201082366d

Colour of body black

Colour temperature 2700K

Beam angle 35°

Luminous flux 340 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	340 lm
Current sec.	500 mA
Colour temperature	2700K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	35°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201022466d

Colour of body black

Colour temperature 4000K

Beam angle 10°

Luminous flux 470 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	470 lm
Current sec.	500 mA
Colour temperature	4000K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	10°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201082966d

Colour of body black

Colour temperature 3000K

Beam angle 35°

Luminous flux 360 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	360 lm
Current sec.	500 mA
Colour temperature	3000K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	35°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

Fast Delivery

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201022966d

Colour of body black

Colour temperature 3000K

Beam angle 10°

Luminous flux 440 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	440 lm
Current sec.	500 mA
Colour temperature	3000K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	10°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201052366d

Colour of body black

Colour temperature 2700K

Beam angle 23°

Luminous flux 410 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	410 lm
Current sec.	500 mA
Colour temperature	2700K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	23°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

Item no. 668-00201022366d

Colour of body black

Colour temperature 2700K

Beam angle 10°

Luminous flux 410 lm

Credit: nonstandard.at

Specifications

Light source	LED
System performance	8 W
Luminous flux	410 lm
Current sec.	500 mA
Colour temperature	2700K
CRI	>90
UGR	<16
Optics	stray light-free hexagonal lens
Designer	INHOUSE
Converter	with converter
Dimmability	DALI
Light emission area	direct
Beam angle	10°
Voltage	220-240V 50/60Hz
Height	87 mm
Diameter	108 mm
IP protection class	IP20
IP protection class	protection cl. I
Material	aluminium
Colour of body	black
RAL	9005
Lifetime	L80 B10 50 000 h
Energy efficiency class	G
Number of luminaires B16A	50

Downloads

Availability & Price

RRP excl. VAT
€ 269,00

Order accessories Request consultation

Payment by invoice

Reliable delivery

Premium service

Top quality

VIBO SD DIMM

From the same product family

Accessories

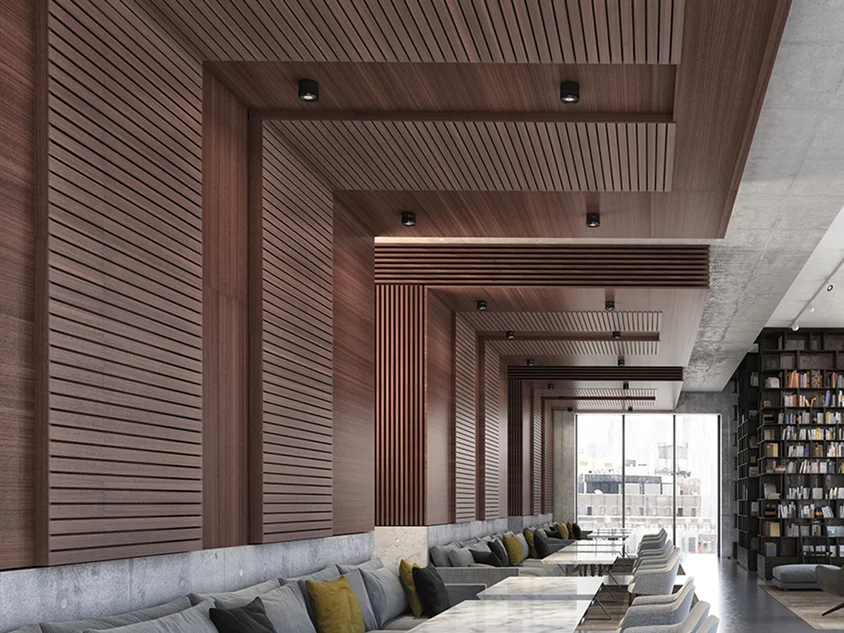

VIBO in use
